40ft Expandable Container House (2025)


  •
    Main Structure

    steel frame welded+sandwich panel

  •
    Packaging & Delivery

    HuaYing standard package, more information please contact us

  •
    After-sale Service

    Online technical support, 2 years Warranty

  •
    Customizable options

    Size, color, furniture and electrical equipment

  •
    Shipping port

    FOB Price, Tianjin

General Introduction

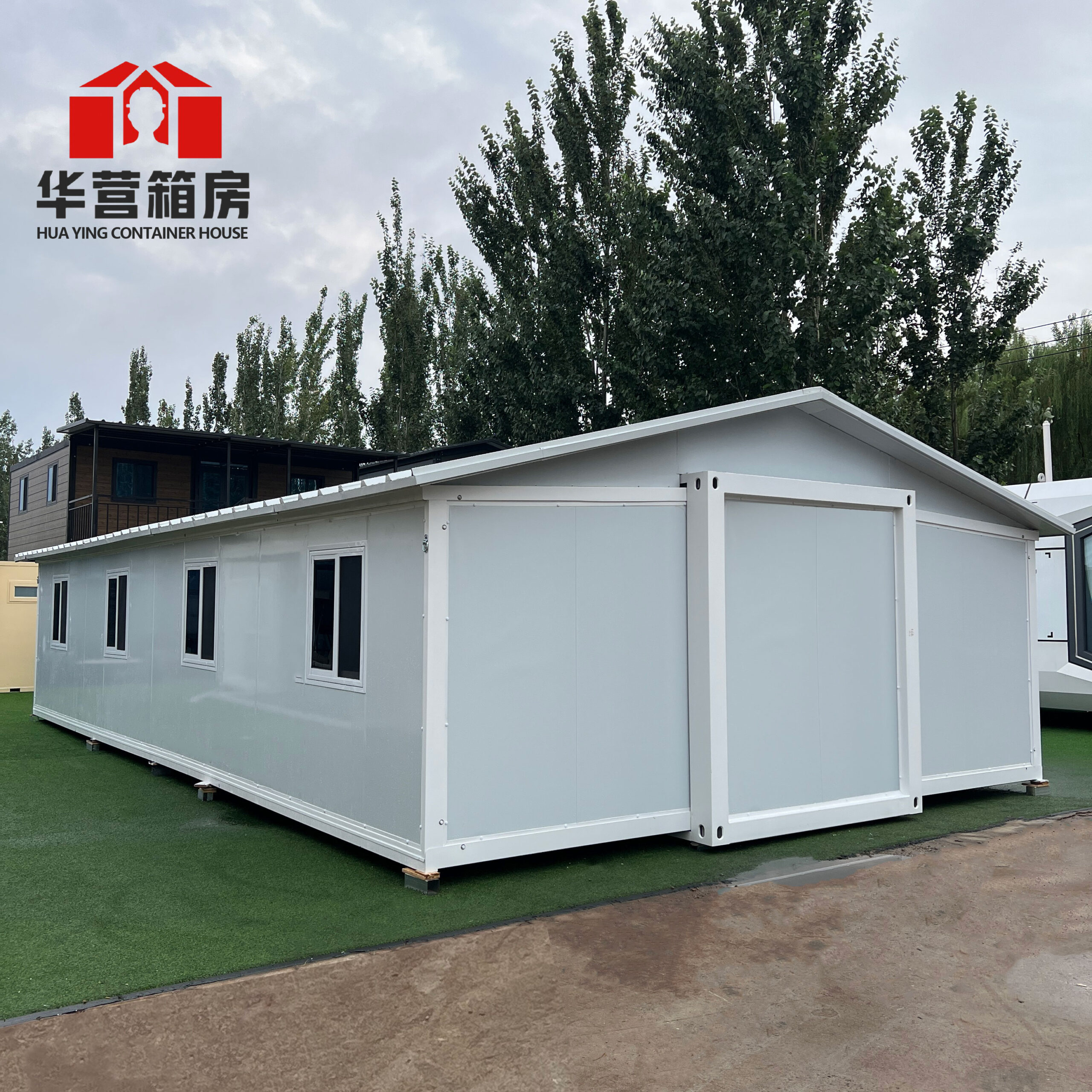

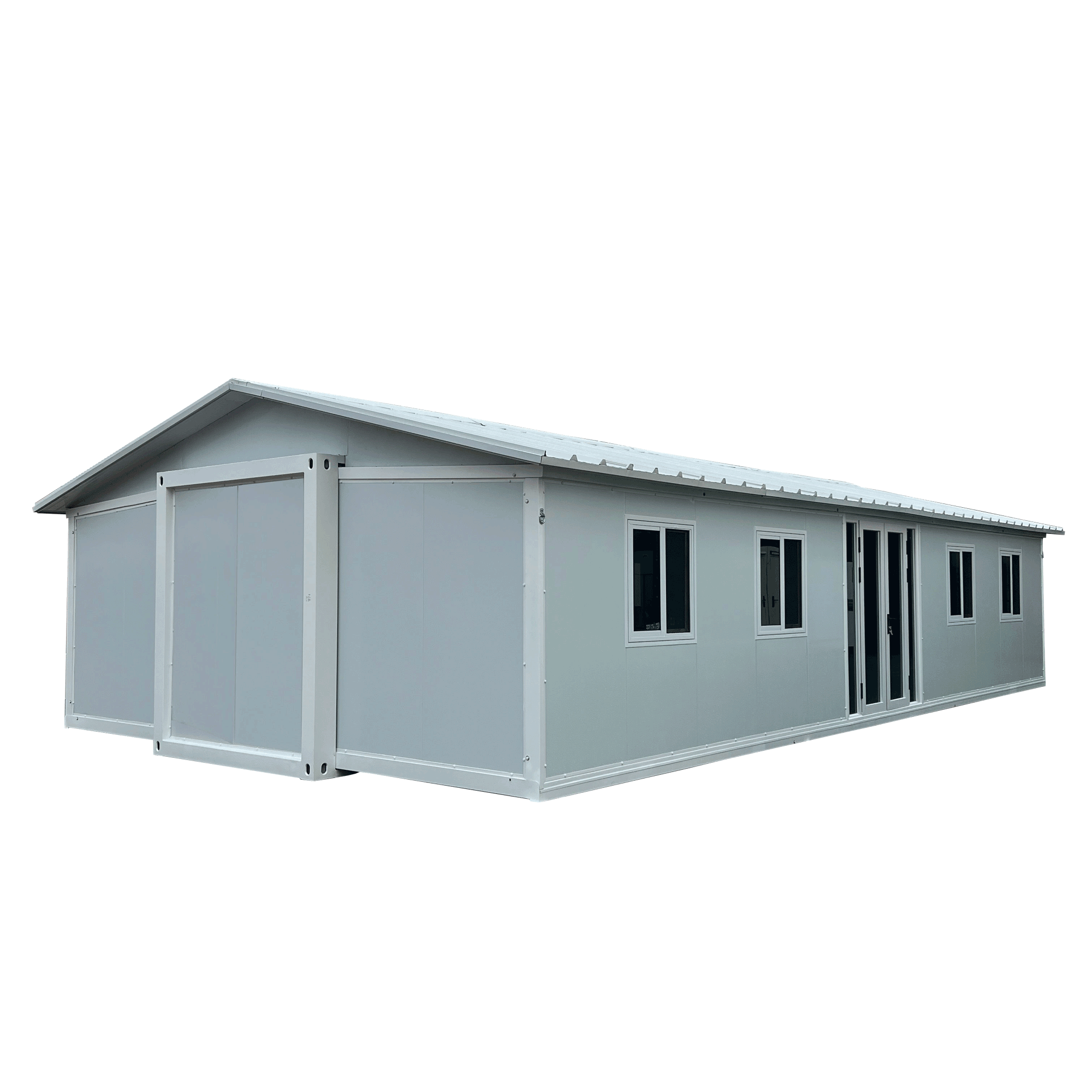

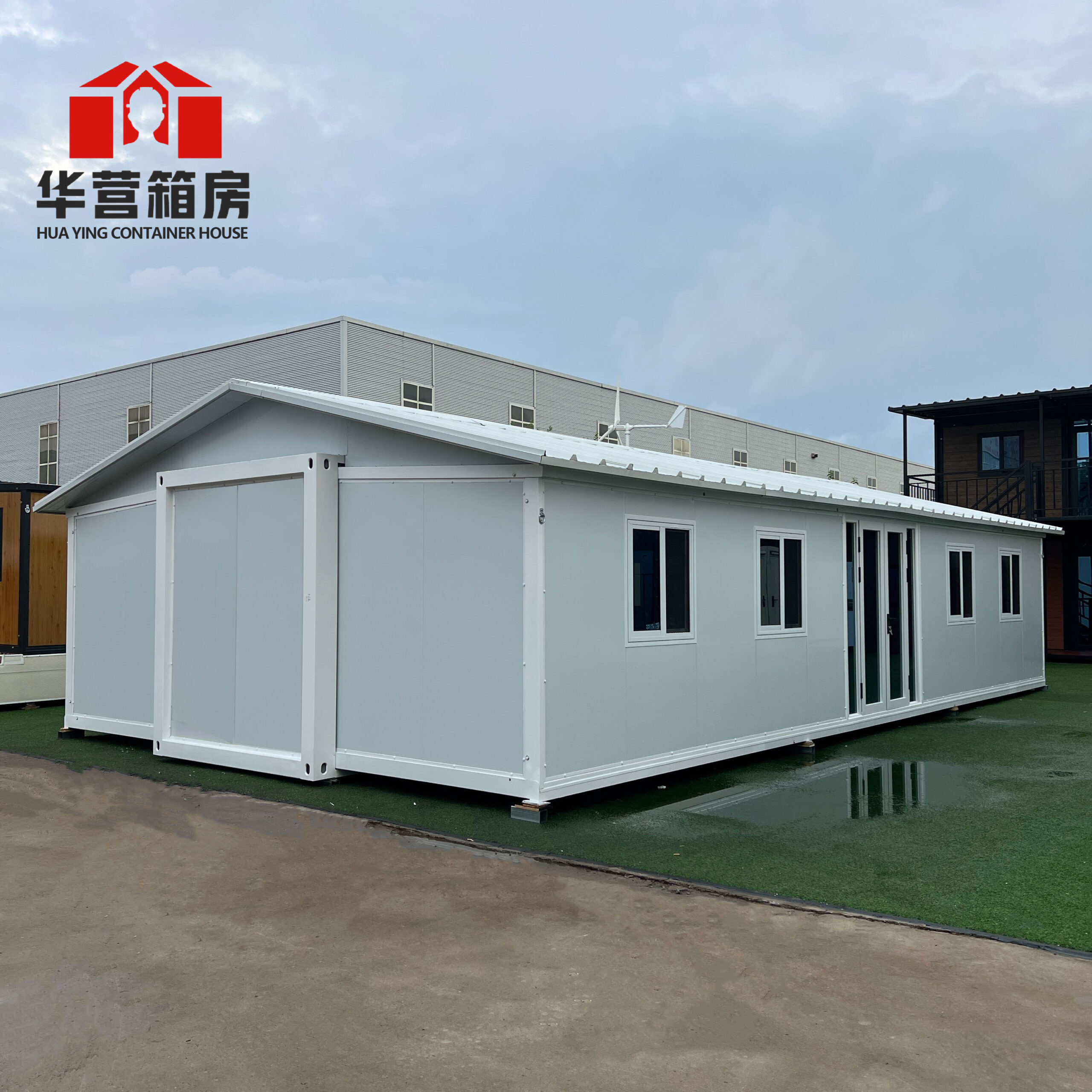

The expandable container house is easy to assemble, can be moved frequently, and more importantly, it has a spacious and expandable living space. All accessories are pre-installed in the factory and folded to fit in a shipping container. When reach your location, you can simply expand it.

Customisation welcome, Volume discounts available.
Item sanitary fitting and kitchen is on option item. Please advise if you do not need it.
Valid time: 10 days from issued.
Delivery time: 25 days after get deposit.
The 3D plan is for refer. The offer is according the drawing which both party confirmed.

The expandable container house’s installation can be completed within 10 minutes.

Easy to assemble and disassemble with simple and common tools, can be installed in 10 minutes.

Safe and durable-over 15-20 years lifespan, seismic resistance to 8 degree, wind resistance to 11 degree.

All bathroom, kitchen, electricity, plumbing are pre-installed in our factory.

Less material to install, more convenient and environmental protection.

Save shipping cost, folded up to be loaded in shipping container, 1*40HC shipping container can load 1 units

Technical Parameters: 40ft Flat Bottom Double Wing Expansion Box (2025)

Technical Parameters: 40ft Flat Bottom Double Wing Expansion Box (2025)

Product Specifications
Expand Size (mm)L11800 × W6230 × H2480
Internal Space (mm)L11220 × W6070 × H2200
Folded Size (mm)L11800 × W2200 × H2480
Weight (KG)5060
Frame Construction
Bottom Main BeamGalvanized square pipe 80×140×2.5MM Q235
Top Main BeamGalvanized square pipe 80×140×2.5MM Q235
Top/Bottom PoleGalvanized square pipe 40×60×1.0MM Q235
Integrated Column HeadGalvanized folded part 150×210×2.0MM Q235
Side Bottom Main BeamGalvanized square pipe 80×80×1.5MM Q235
Side Top Main BeamGalvanized square pipe 40×80×1.5MM Q235
Side Bottom PurlinGalvanized square pipe 40×60×1.0MM Q235
Side WallsGalvanized P pipe 35×80×1.2MM Q235
HingeGalvanized thickened hinge Q235
Framework ColorsBaked paint work, black frame
Roof Structure
Side by SideGalvanized square pipe 40×40×1.2MM Q235
Spike the PiersGalvanized square pipe 40×40×1.2MM Q235
Hybrid Cable Supported Bridge SystemGalvanized square pipe 40×20×1.2MM Q235
Carrying PolesGalvanized square pipe 40×40×1.2MM Q235
Floor Board
Middle Floor18mm magnesium plate (without asbestos)
Two Sides of the Floor18mm magnesium plate (without asbestos)
Plastic FlooringFlooring, palm wood
Insulated Wall
Wallboard70mm sandwich panel, color roll double-sided 0.25 (Iron gray), EPS insulation
Partition50mm sandwich core board, color steel plate substrate double side 0.25, EPS insulation
Main Top and Side Top50mm sandwich core board, color steel plate base double side 0.25, EPS insulation
Sloped Roof Ceiling
Roof50MM EPS corrugated board
Gable50MM iron gray wall panel
Electrical System
Standard Wiring
  • Australian standard wire
  • Incoming line: 6mm²
  • Air conditioning socket: 4mm²
  • Ordinary socket: 2.5mm²
  • Lighting: 1.5mm²
  • Customized circuits available to meet country-specific certification requirements
Circuit Breaker System
  • 1P 63A main switch
  • 1P 32A leakage protector
  • 2P 20A leakage protector
  • 2P 16A leakage protector
LightingLED ceiling lamp × 9
SocketStandard Aoji three-hole socket (configurable according to customer requirements)
Window and Door System
Front Door Standard four doors of aluminum alloy
Double tempered glass with blue film
Black door frame
Size: W1890 × H2190
Window Standard aluminum alloy sliding window
Double glass, tempered with blue film
Diamond screen
Black window frame
Size: W930 × H930

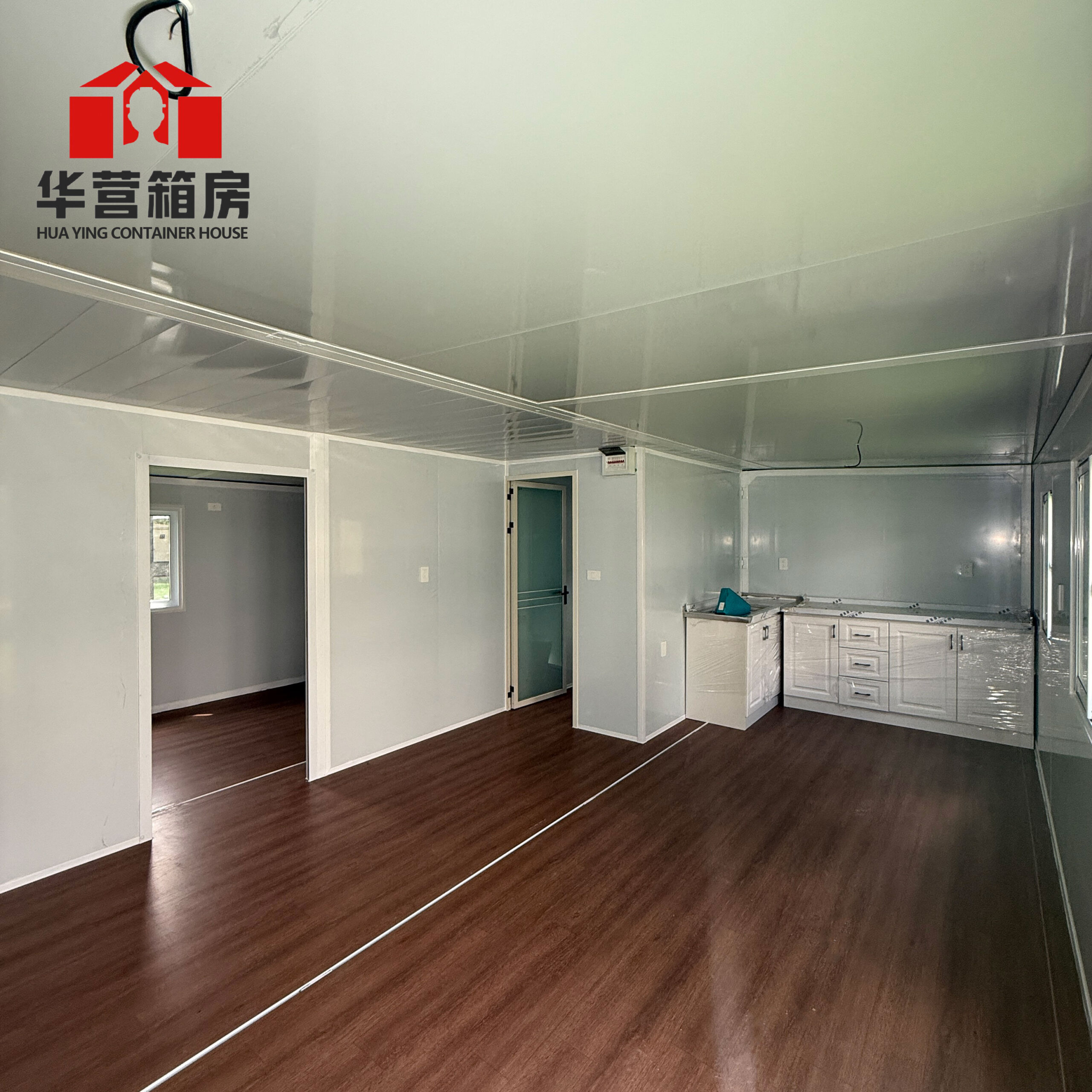

House Layout
House TypeTwo bedrooms, one living room, one kitchen, and one bathroom

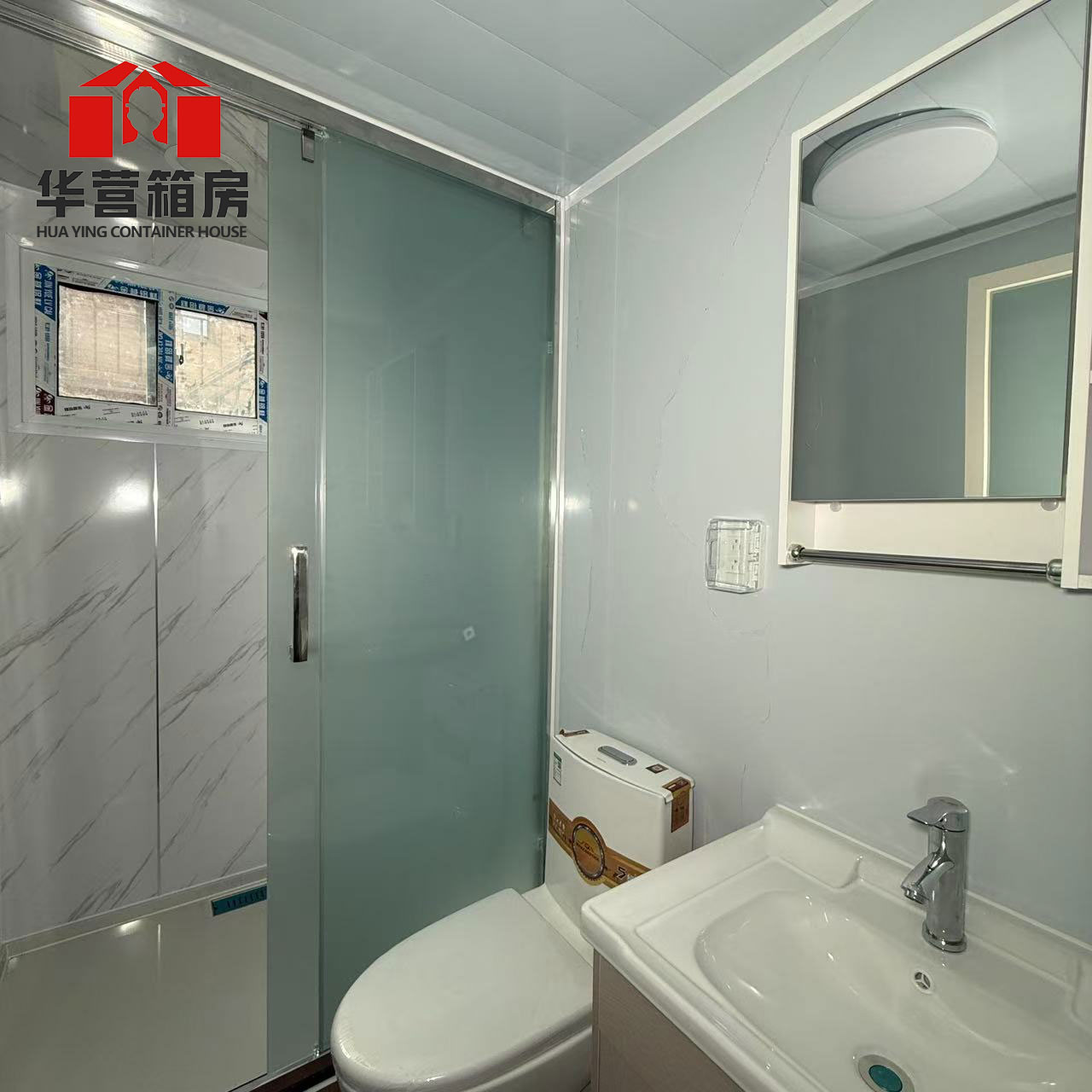

Toilet SizeLength 2200 × Width 1350
Shower Bath Floor: Single layer white marble
Ceiling and wall: Stone plastic board UV board # jazz white
Pull-out Shower DoorFrameless glass sliding door, black outer frame, frosted glass
Bathroom Window Aluminum alloy sliding window
White frame, glass coated with blue film
Screen included
Size: W700 × H500
Dry and Wet Separation ToiletShower area height: 1200mm
Kitchen
LayoutL-shaped cabin
Cabinet A1725mm (L) × 550mm (W) × 900mm (H)
Cabinet B1390mm (L) × 550mm (W) × 900mm (H)
CountertopStainless steel
Door PanelWhite plastic sheet

Note: The parameters of the floor plan are for reference only. All specifications are subject to the official product documentation.
