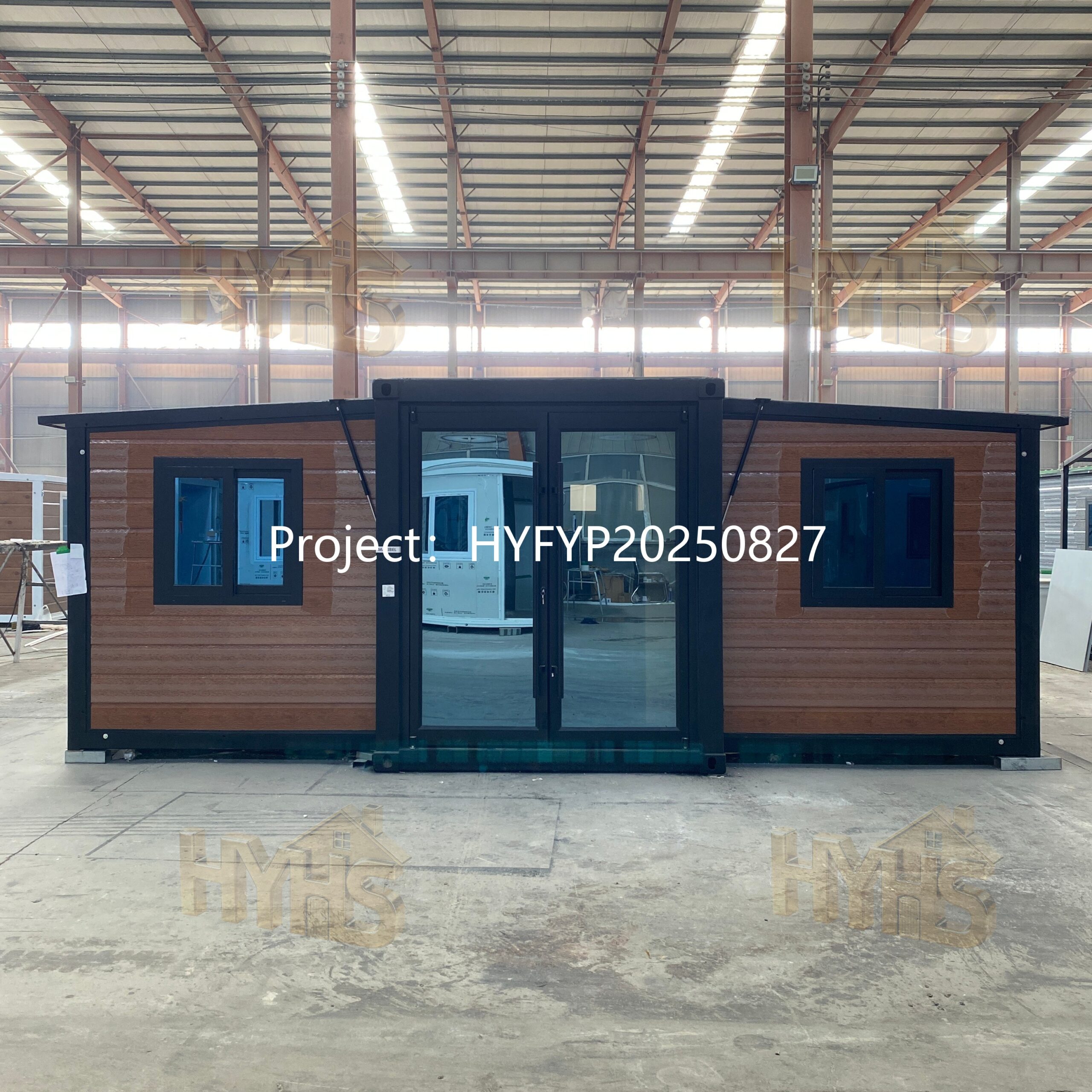

20ft Double-Wing MARIBEL - Product Configuration
Salesperson: Yaping Fu
Order Date: 2025/9/4
Order No.: HYFYP20250827
Quantity: 1 set
Delivery Date: 2025/9/24
Product Overview

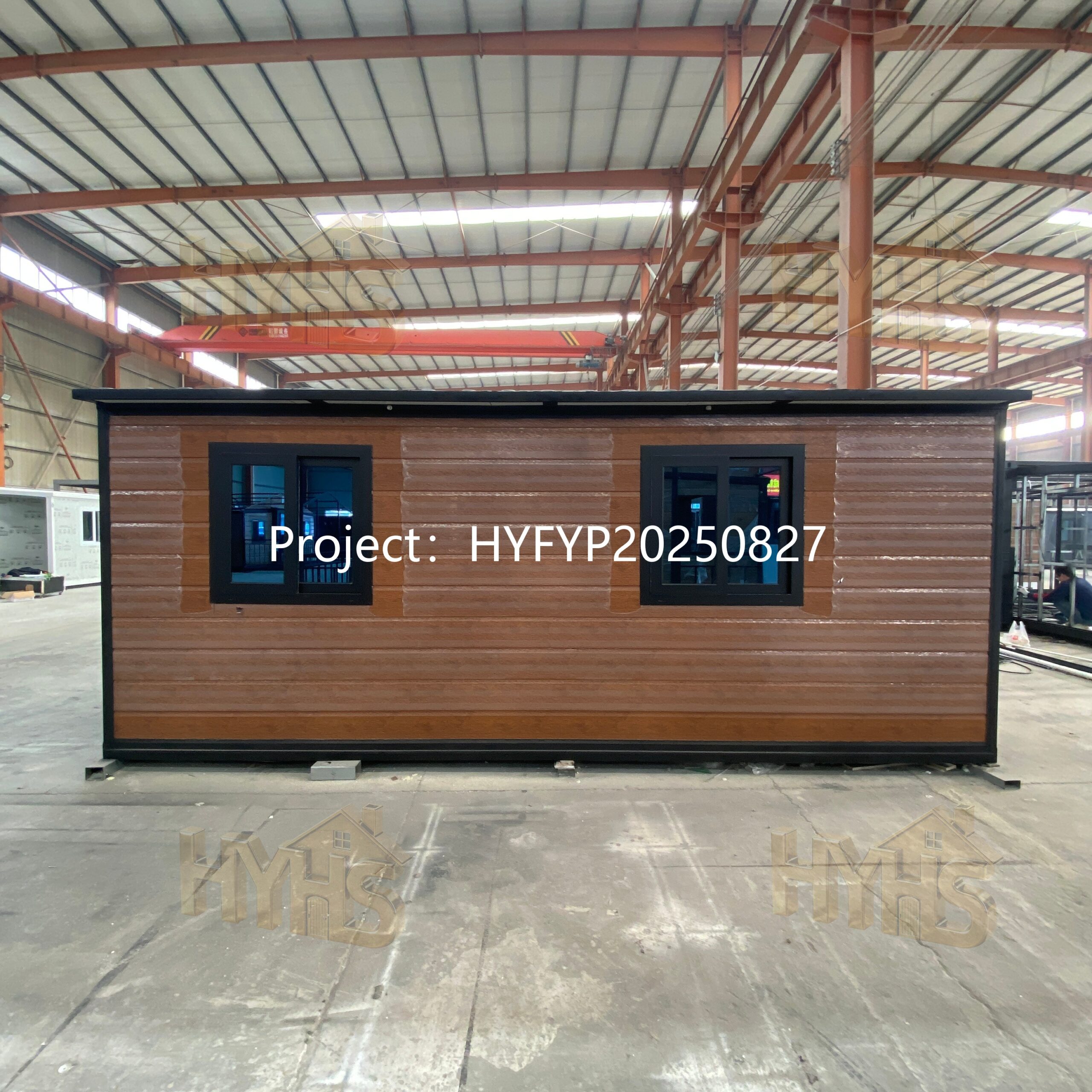

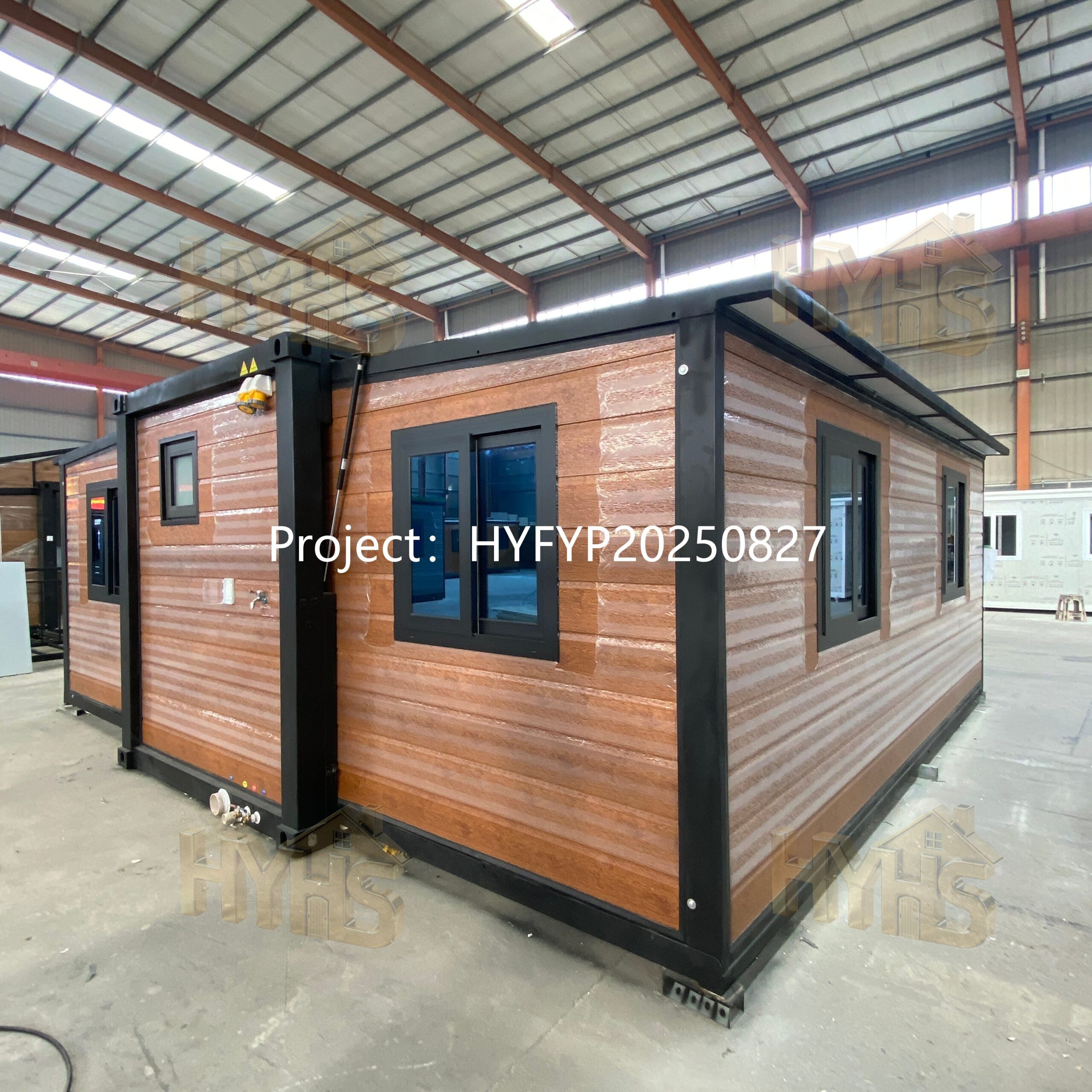

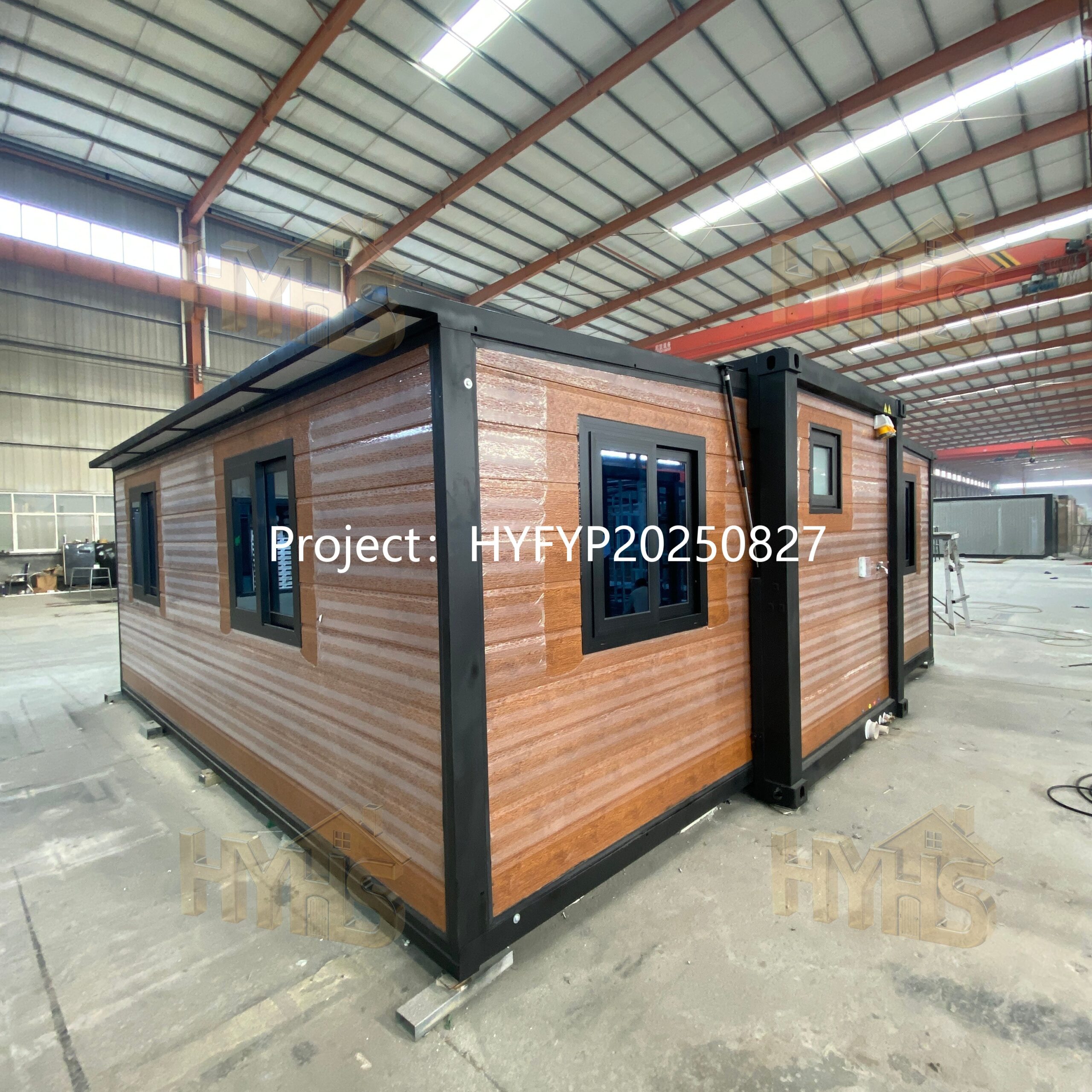

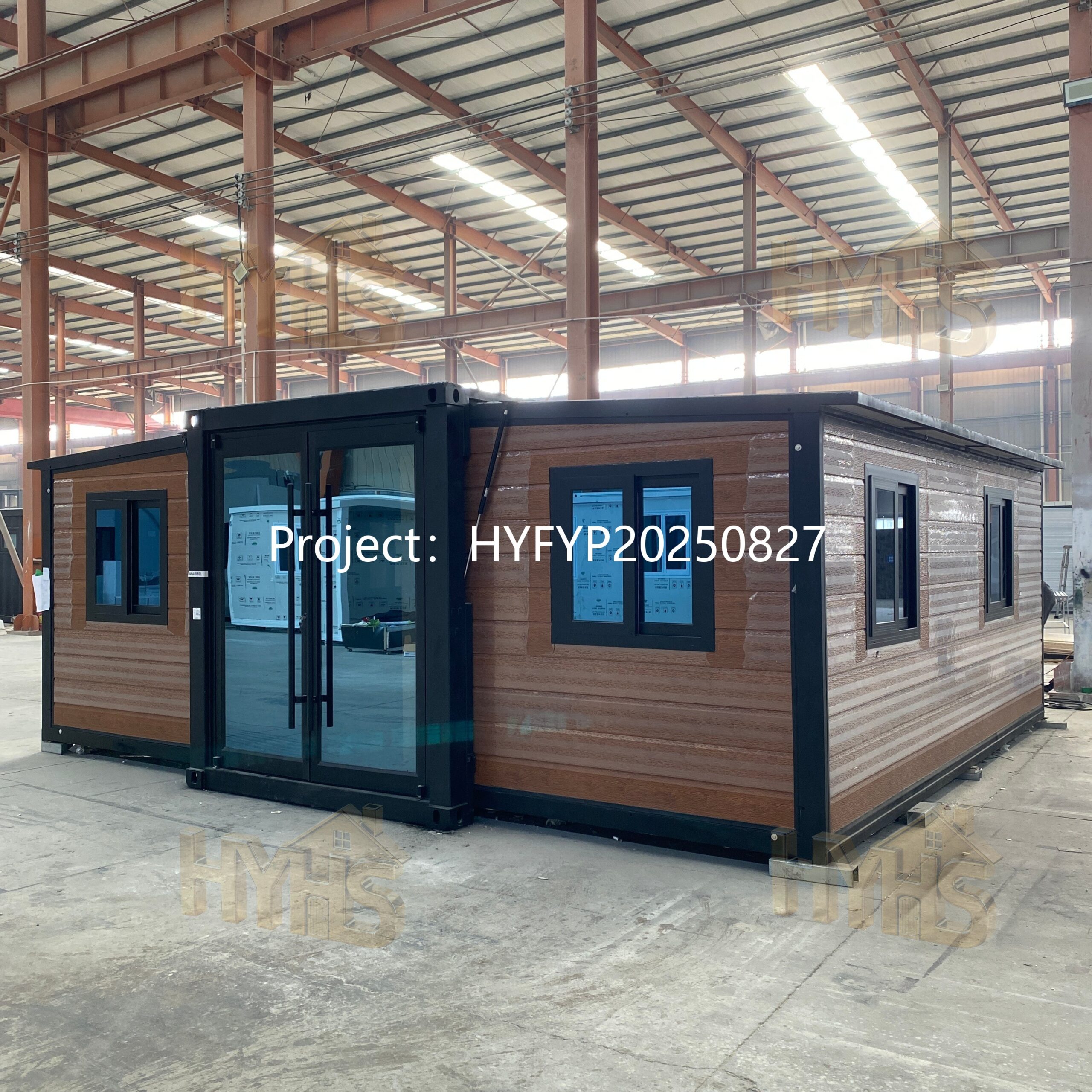

The 20ft Double-Wing MARIBEL is a premium modular house unit designed for durability and modern aesthetics. It features a two-bedroom, one-living room layout with high-quality materials and finishes throughout.
Dimensions: 5900 * 6300 * 2480 mm
Surface Configuration
| No. | Item Description | Image/Model | Qty |
|---|---|---|---|
| Surface Configuration | |||
| 1 | 20ft double-wing two-room keel frame with indoor bamboo wood fiber board + OSB board + wall + bottom polyurethane spray + metal carved board + top with T-beam. Full house cement board without magnesium and asbestos. Three pipes on the side wings for shipping lifting. | 1 | |
| Configuration of each house | |||
| 2 | Black frame main frame 3.75mm thick sprayed with black fluorocarbon paint | 1 | |

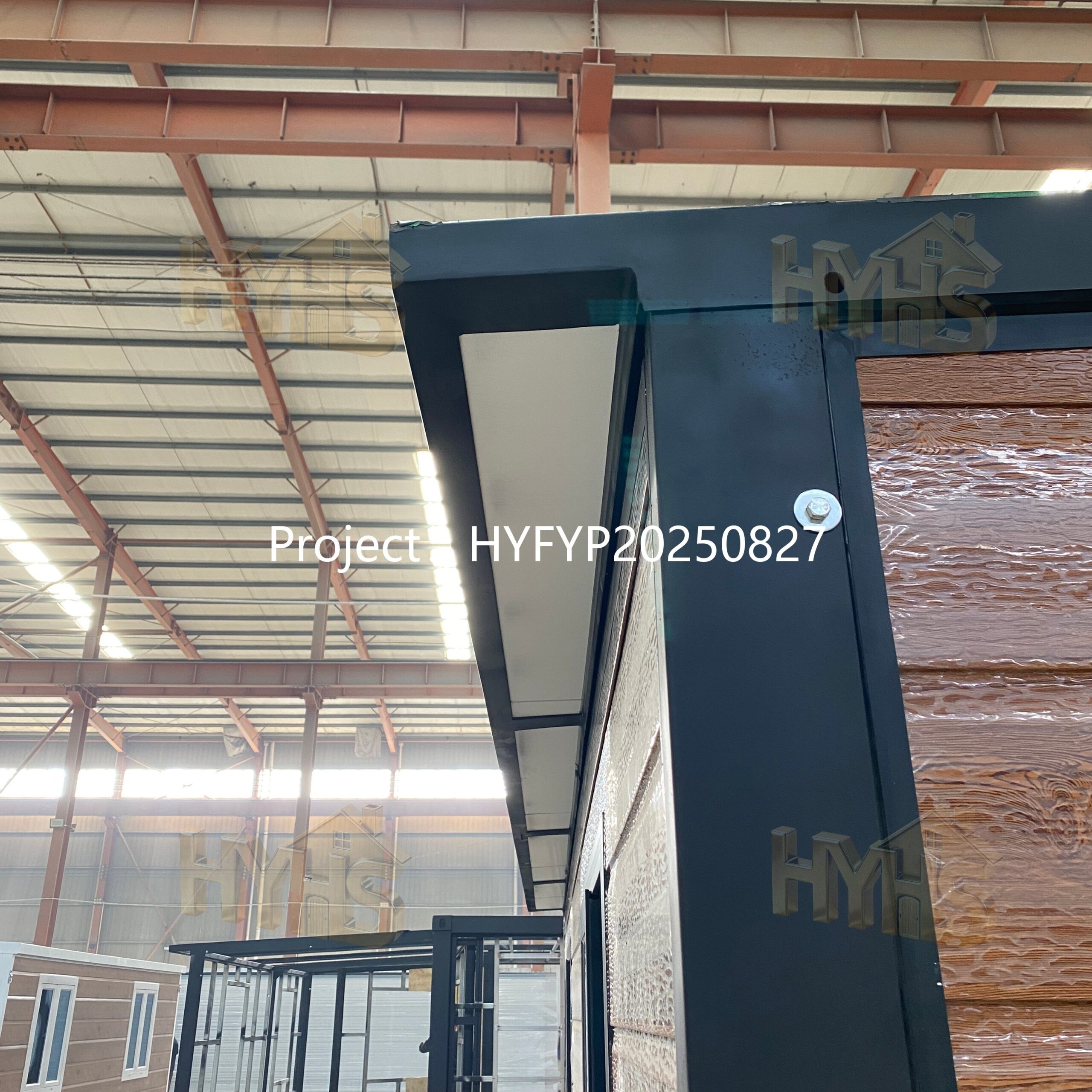

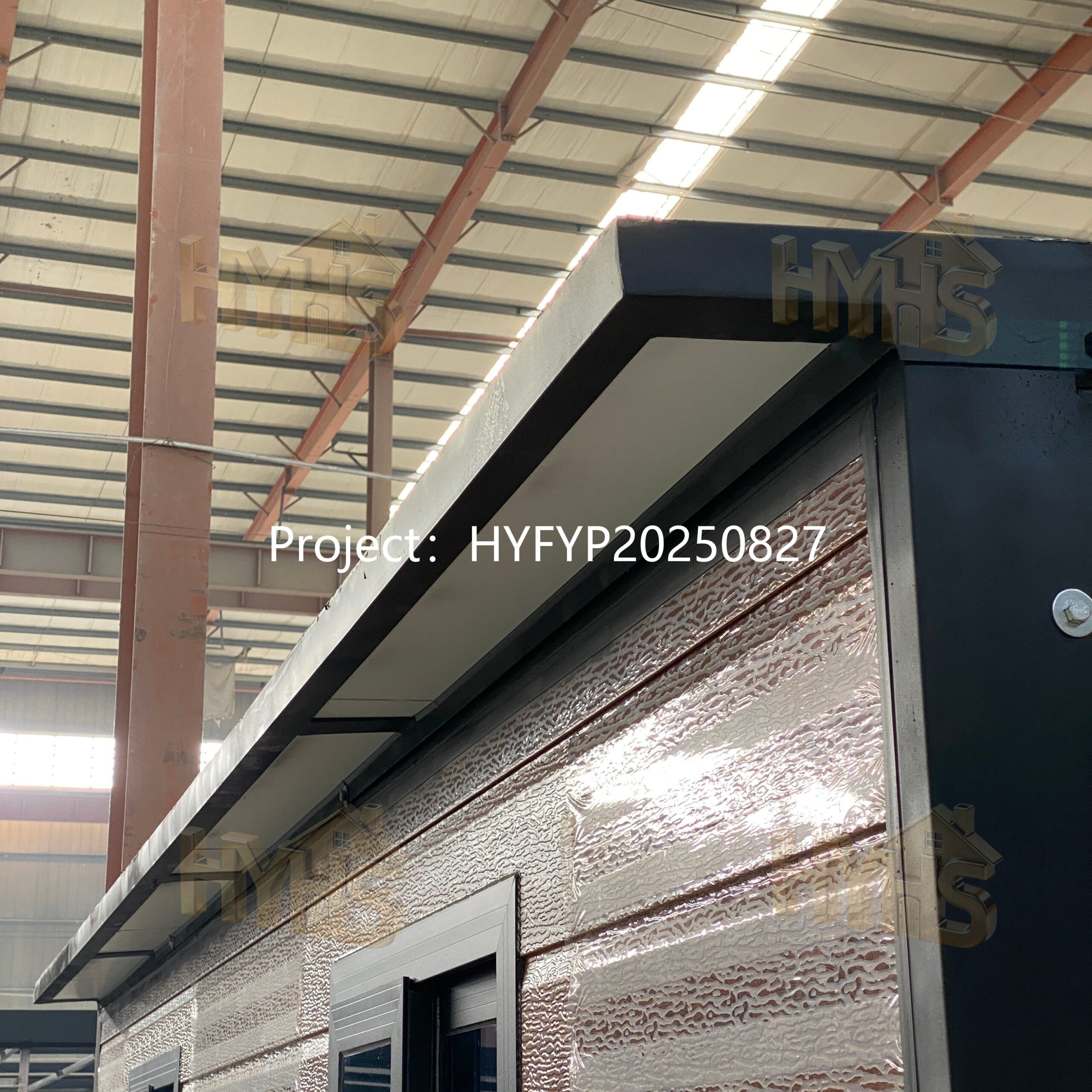

| 3 | 40mm polyurethane + 8mm OSB board + 8mm bamboo wood fiber board + 16mm metal carved board roof 50mm polyurethane integrated wall panel same as indoor. Eave extends 18cm outward to prevent rainwater from entering windows. | 1 | |
| 4 | Interior carbon crystal board FG6002-2 milk white | FG6002-2 milk white | 1 |
| 5 | Black KFC door with door closer, double-layer tempered glass with blue film (1890 * 2230) | 1 | |

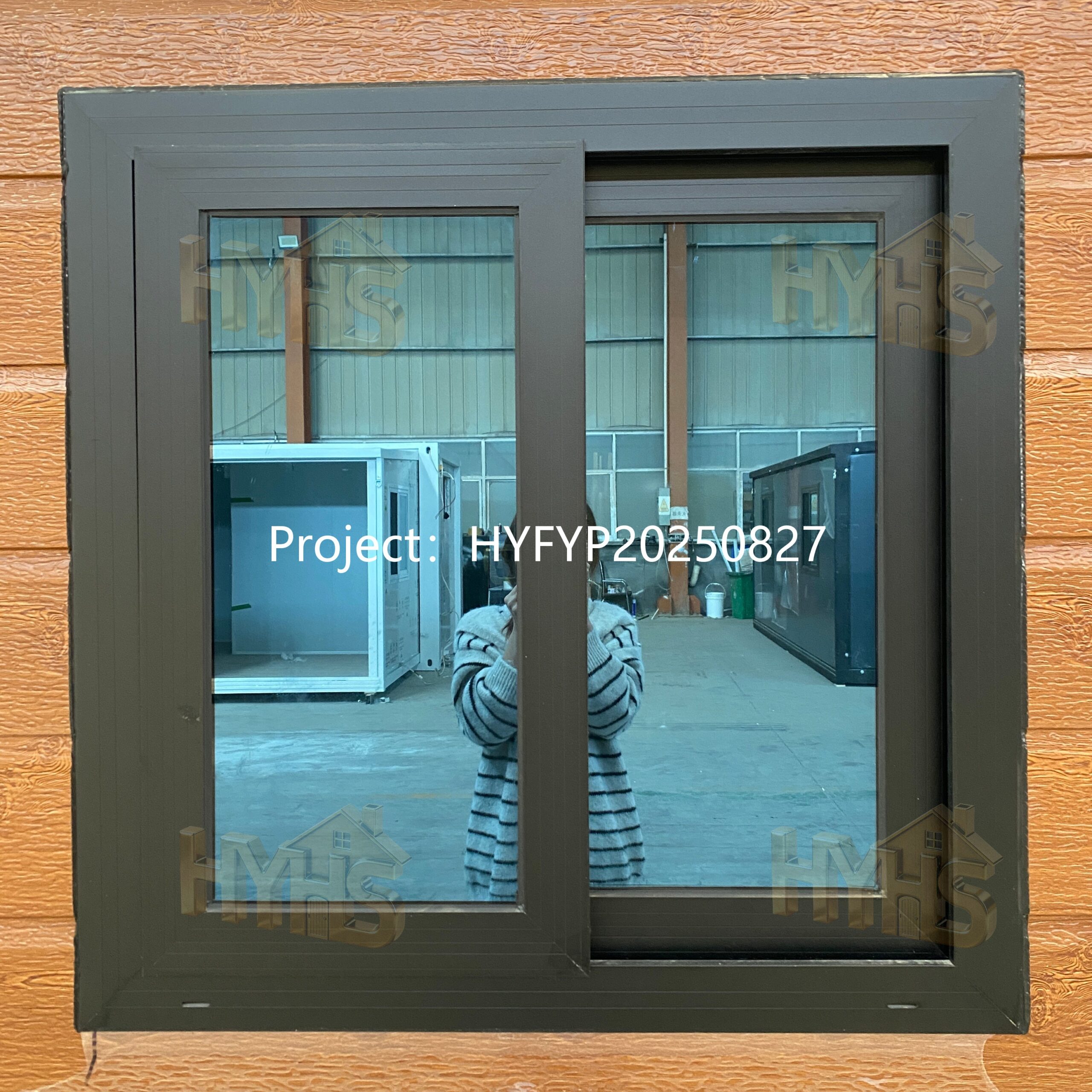

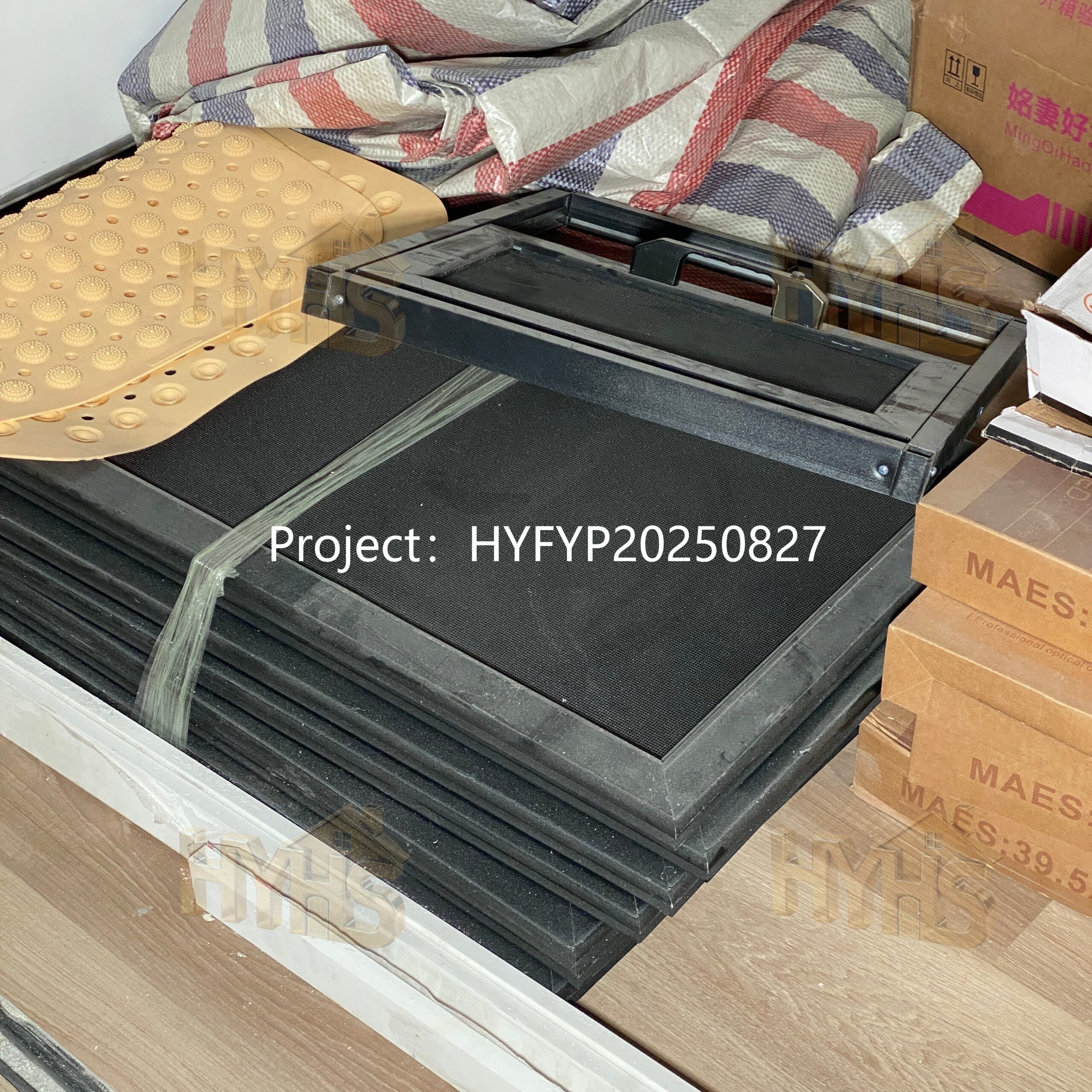

| 6 | Black broken bridge aluminum sliding window with stainless steel screen (930 * 930) laminated glass 8mm+film+6mm glass tempered with blue film | Default-Sliding V-3 | 8 |
Indoor Configuration
| No. | Item Description | Image/Model | Qty |
|---|---|---|---|
| Indoor Configuration | |||

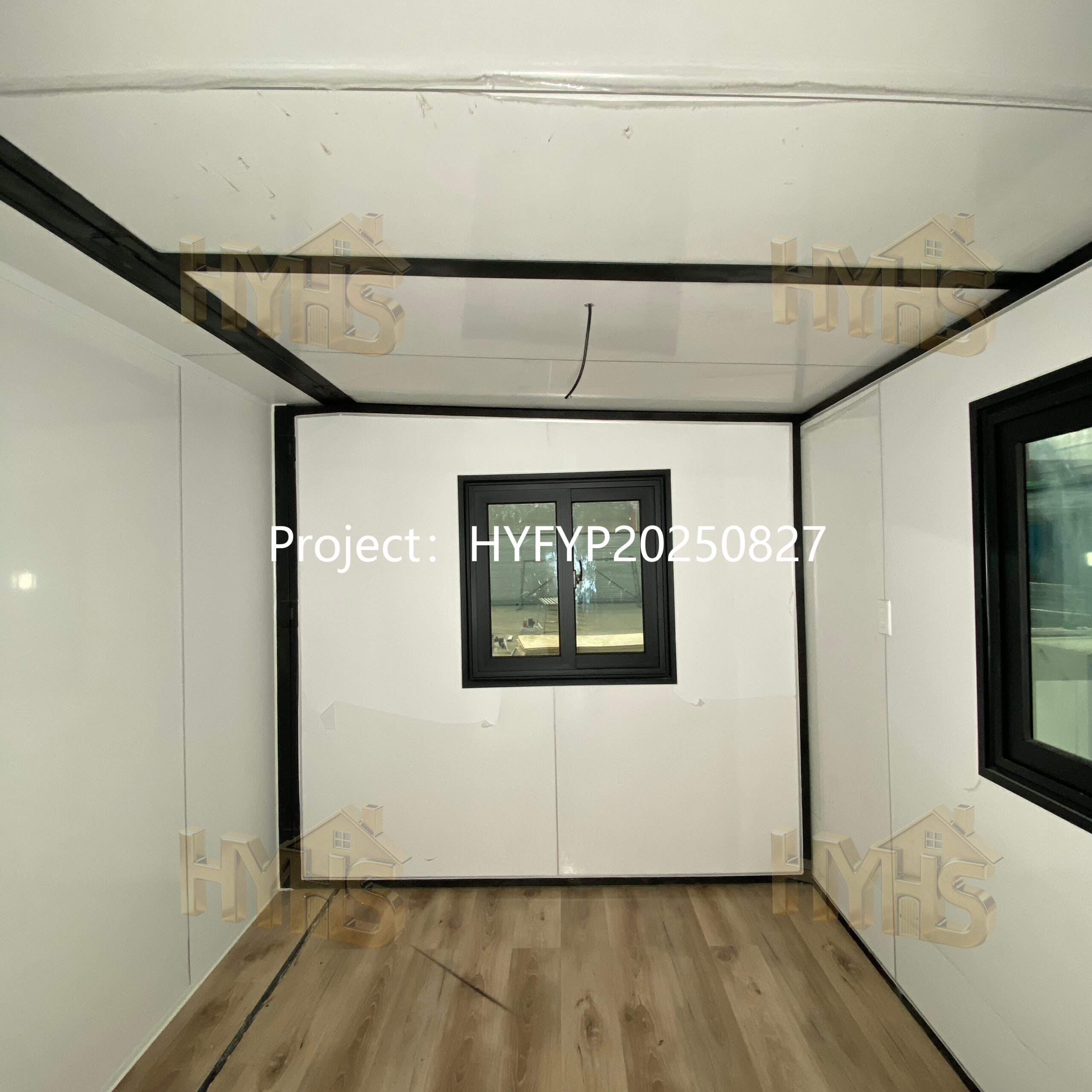

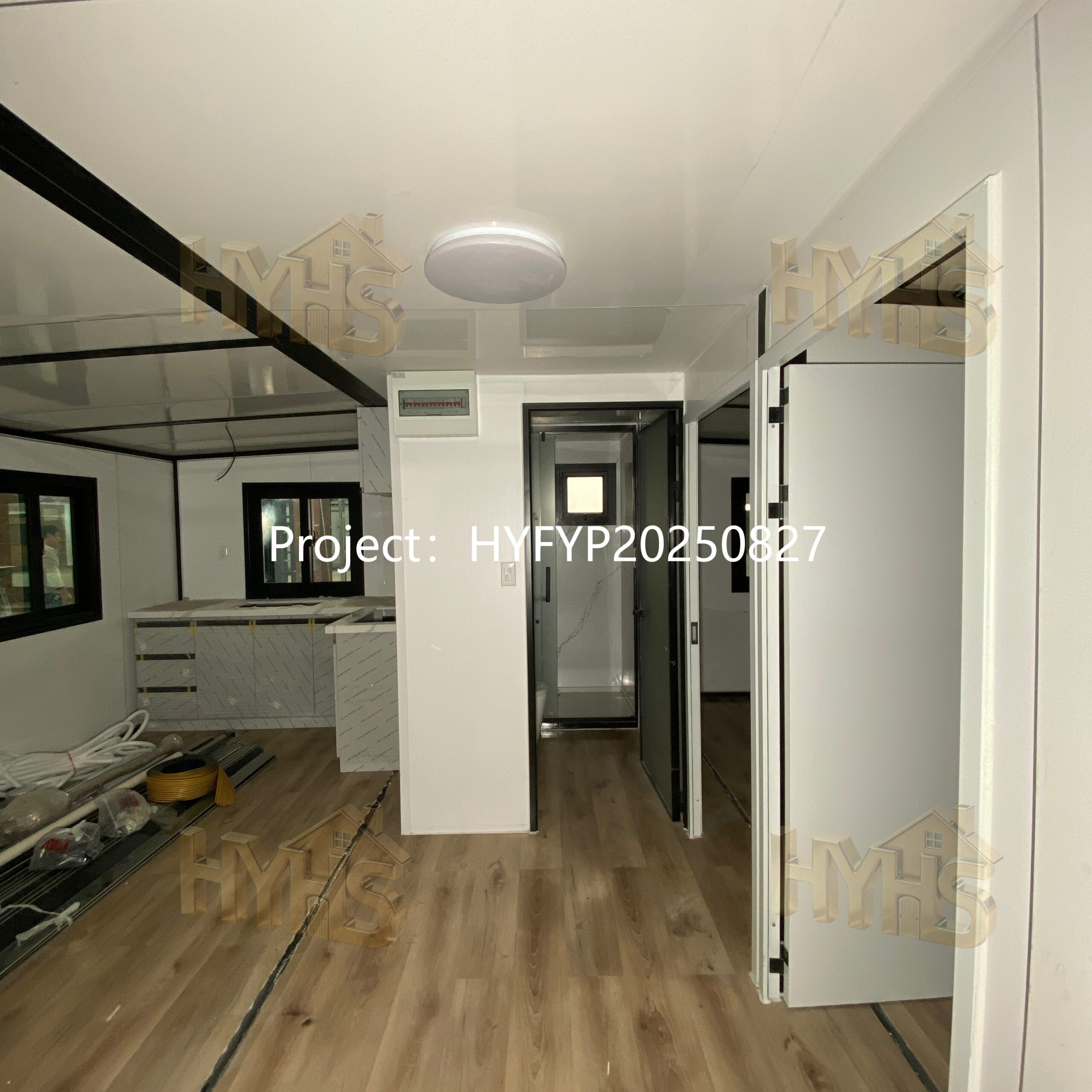

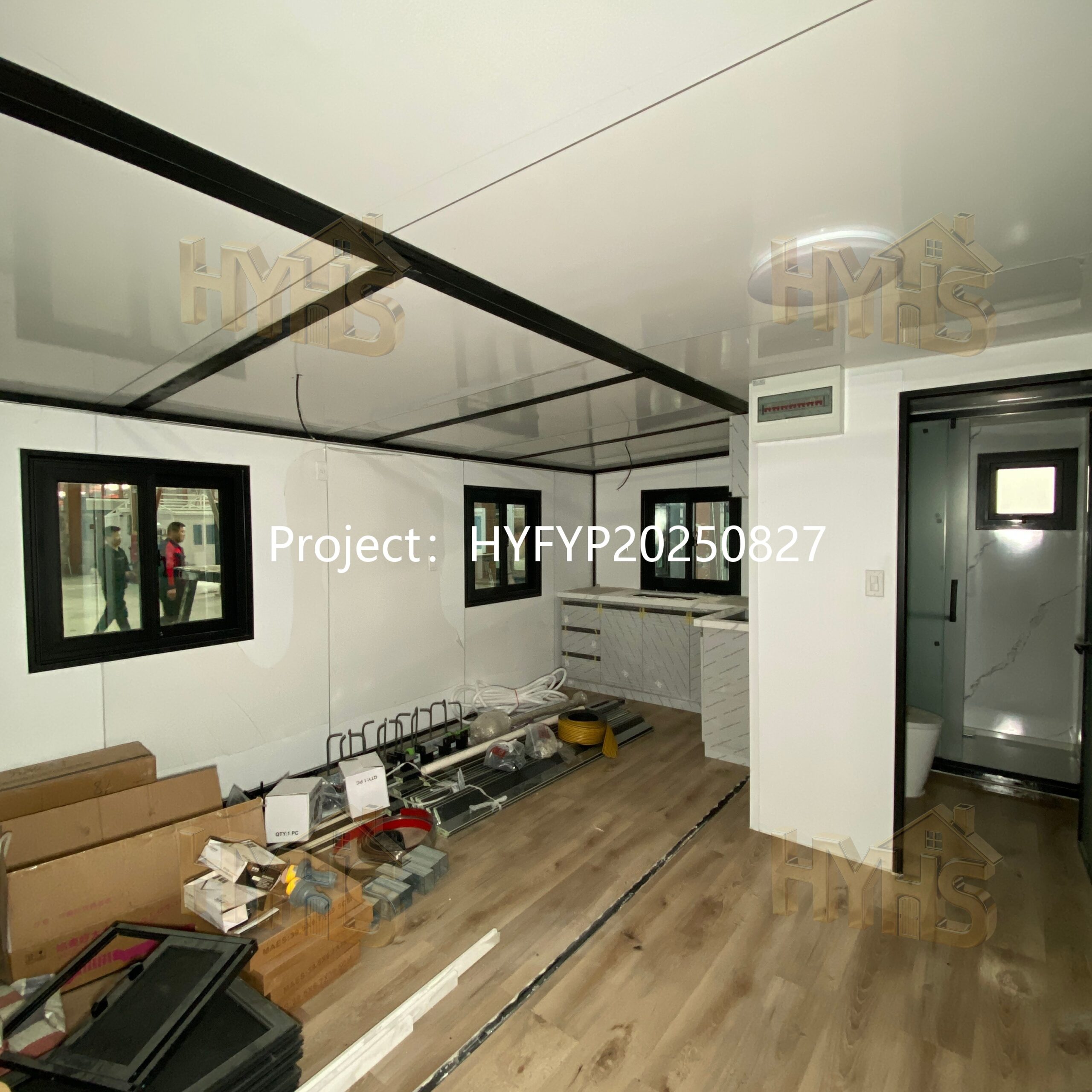

| 7 | Layout: 20ft two-bedroom one-living room | ||
| 8 |

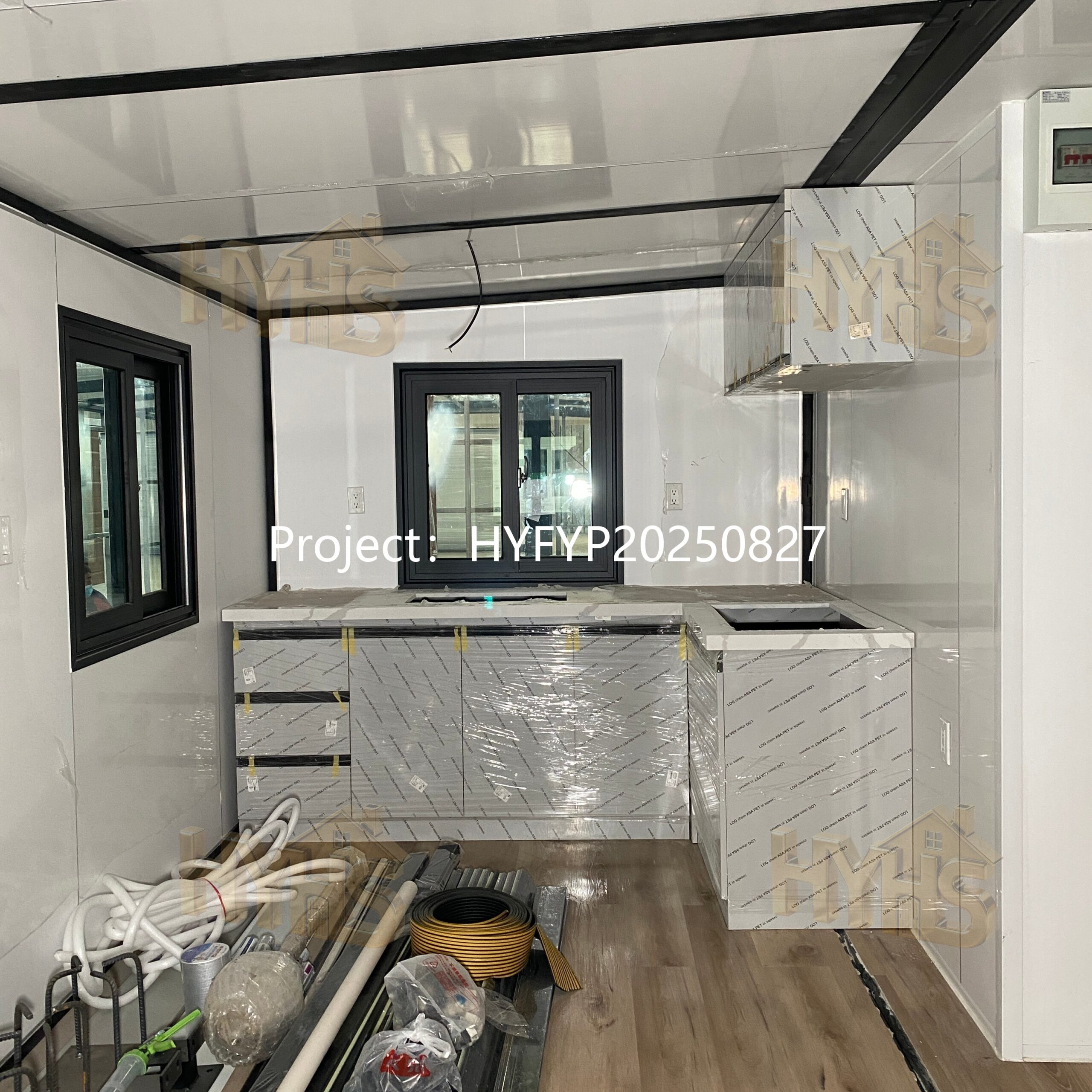

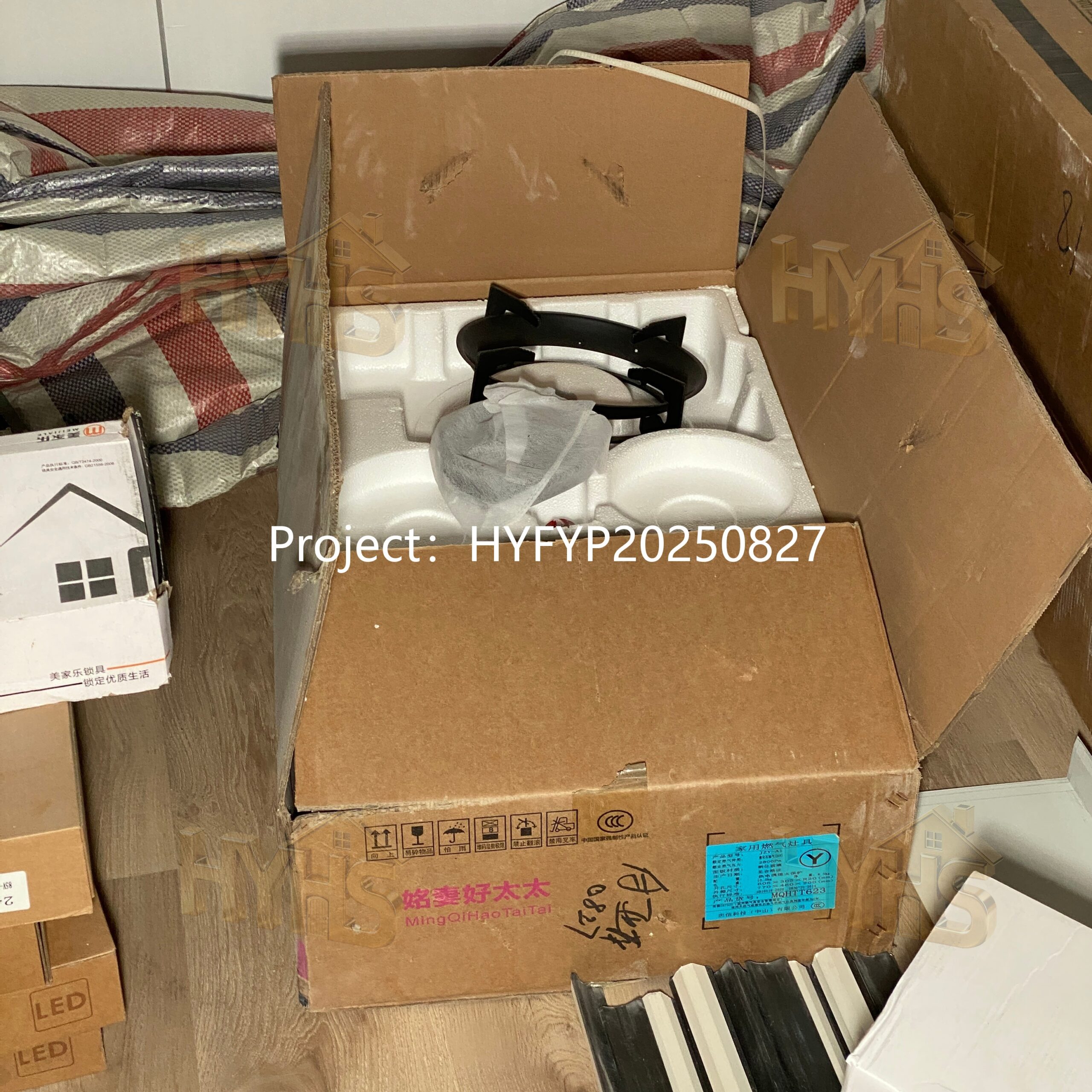

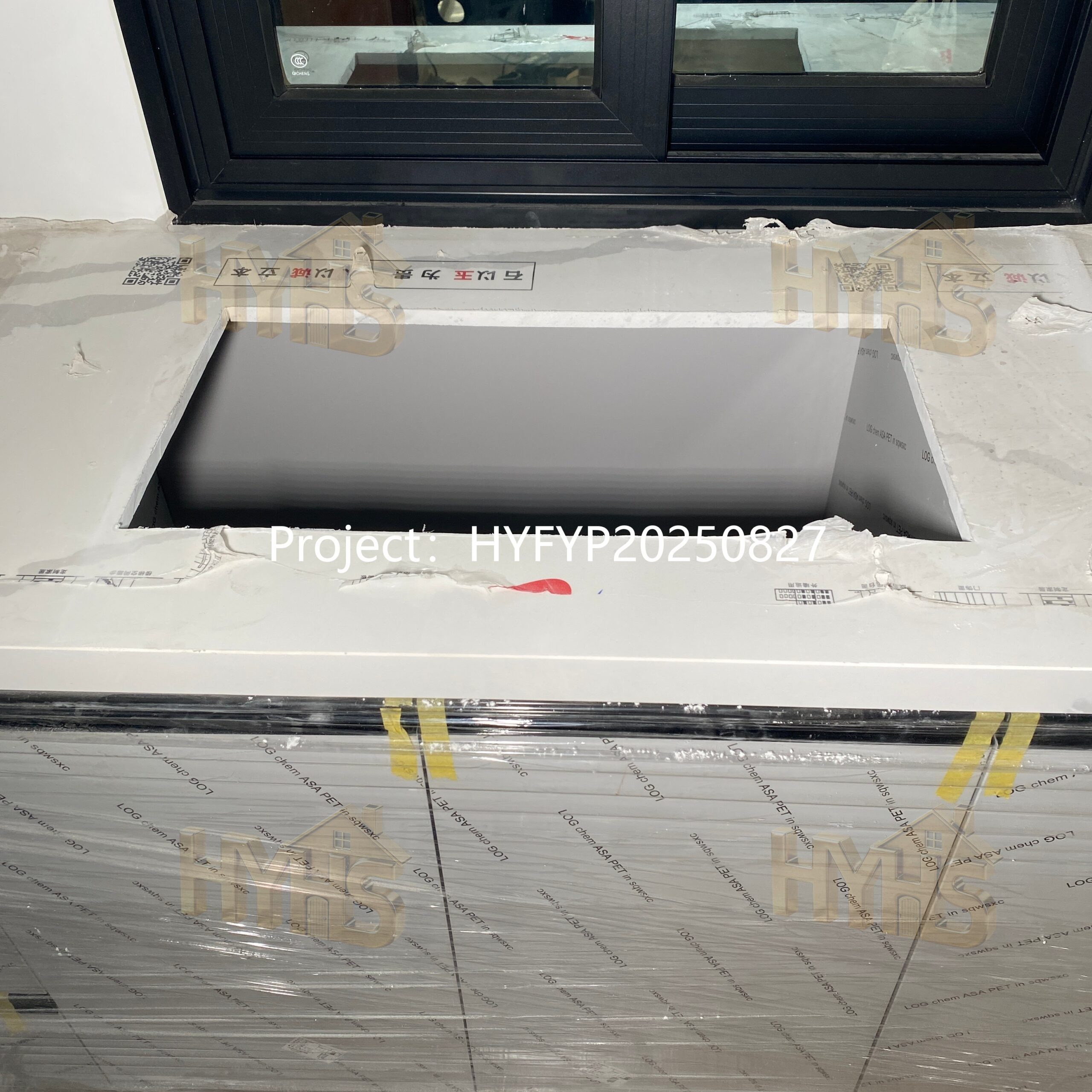

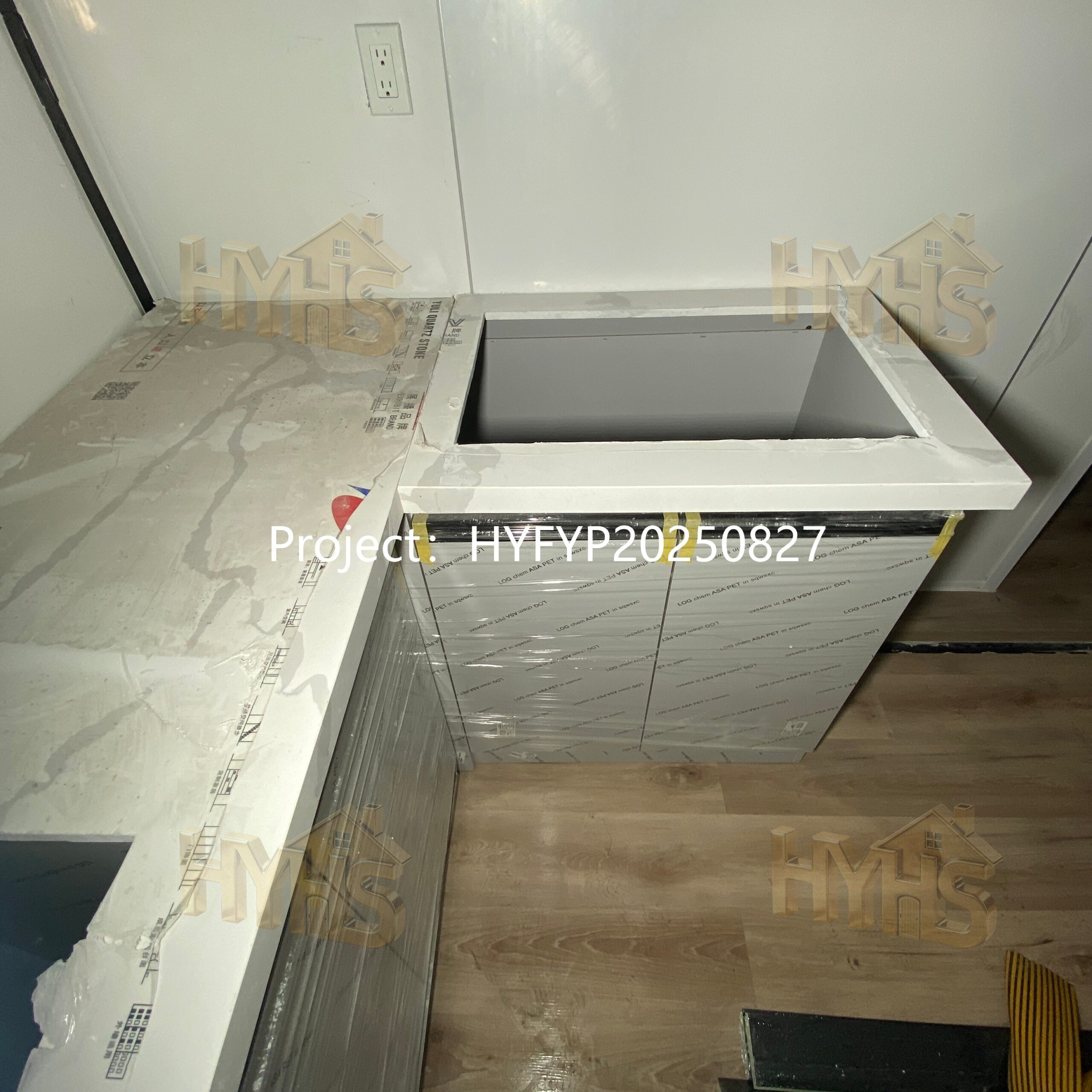

Kitchen: L-shaped cabinet with space for refrigerator. Black handle with double-burner gas stove, countertop opening for smart double sink, stainless steel original color (cabinet doors, drawers with soft closing)
Countertop: Fish belly white granite Cabinet color: 8011 | 12 | |

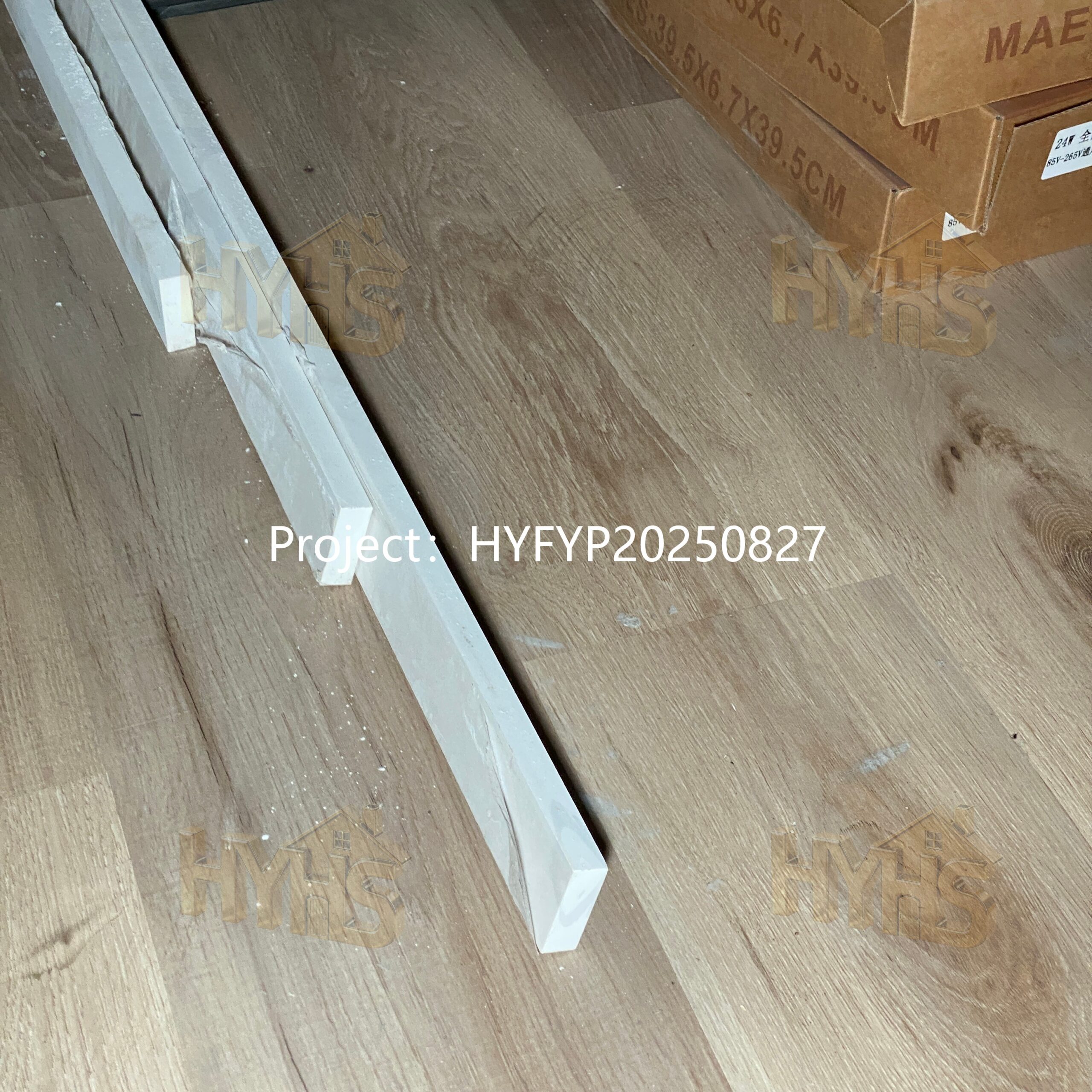

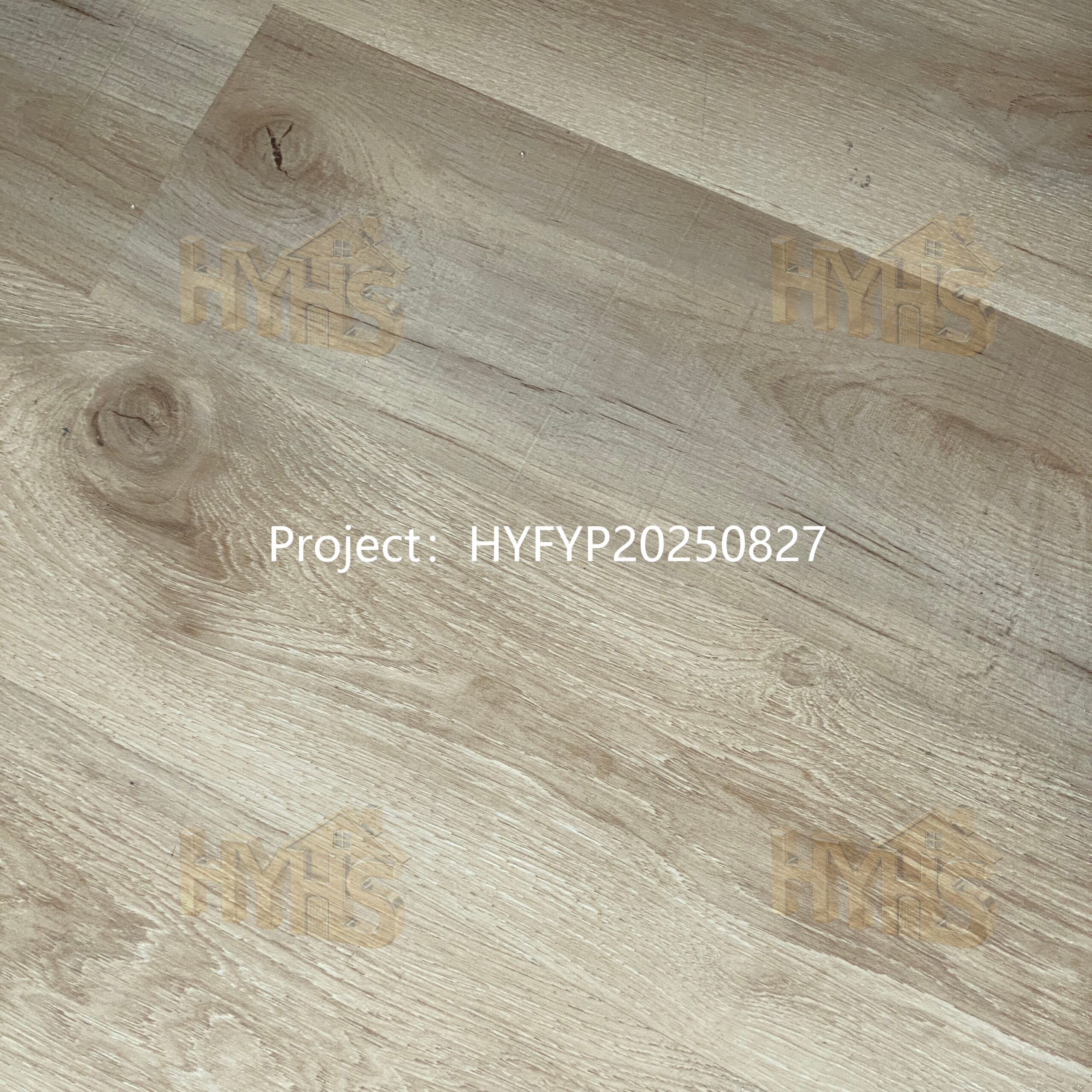

| 9 | Floor: SPC click floor Color: SA8009 | SA:8009 Size:1220 * 184 * 4 | 1 |

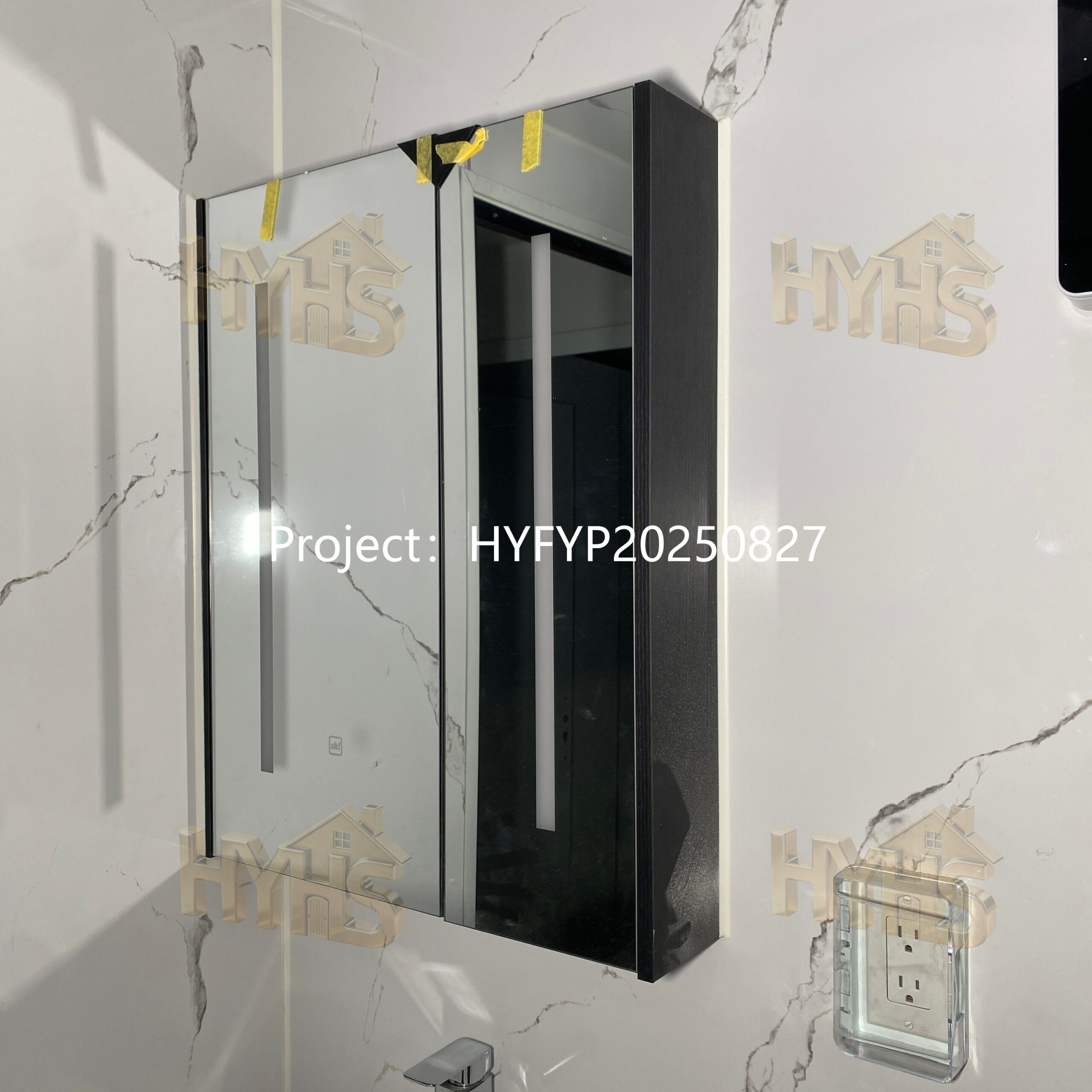

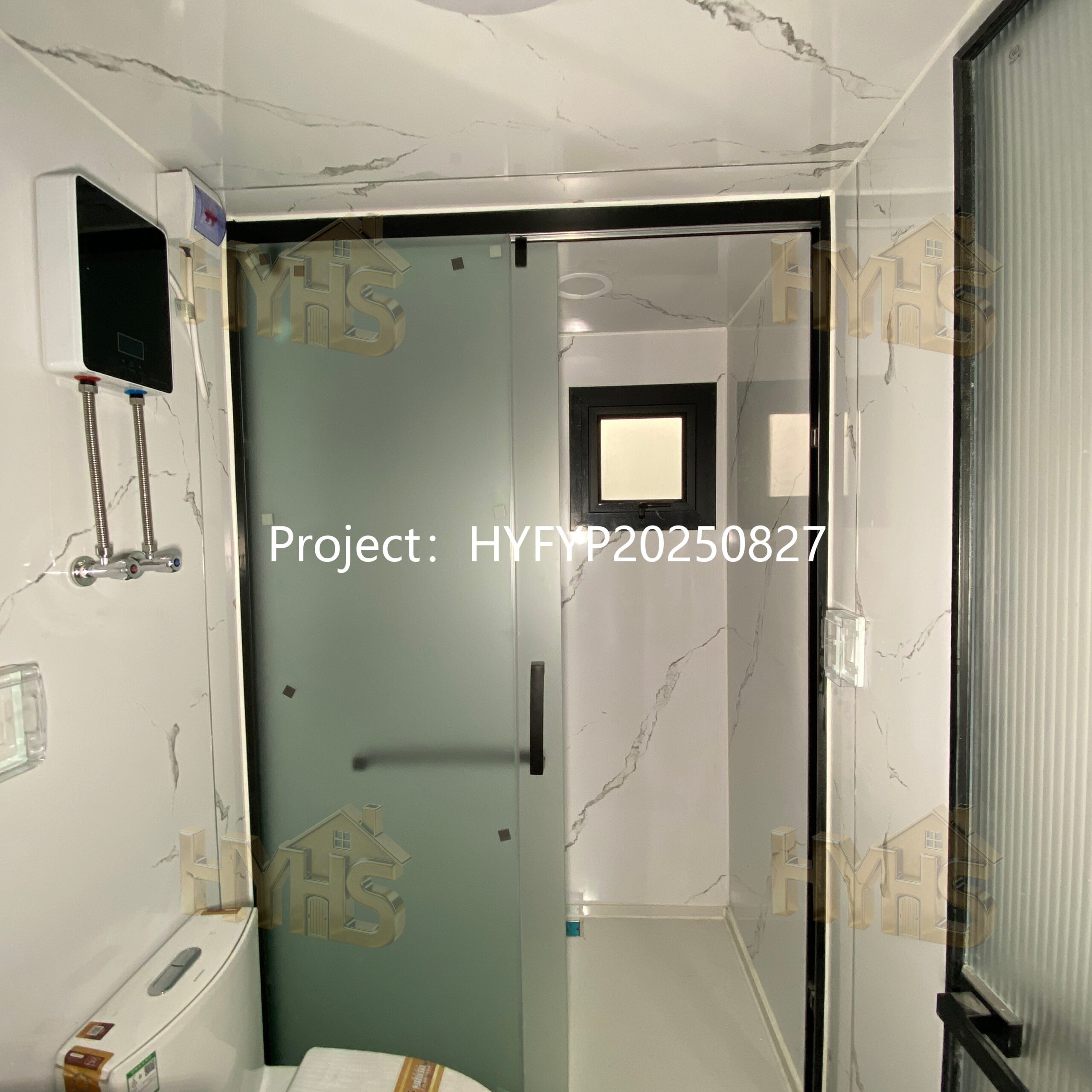

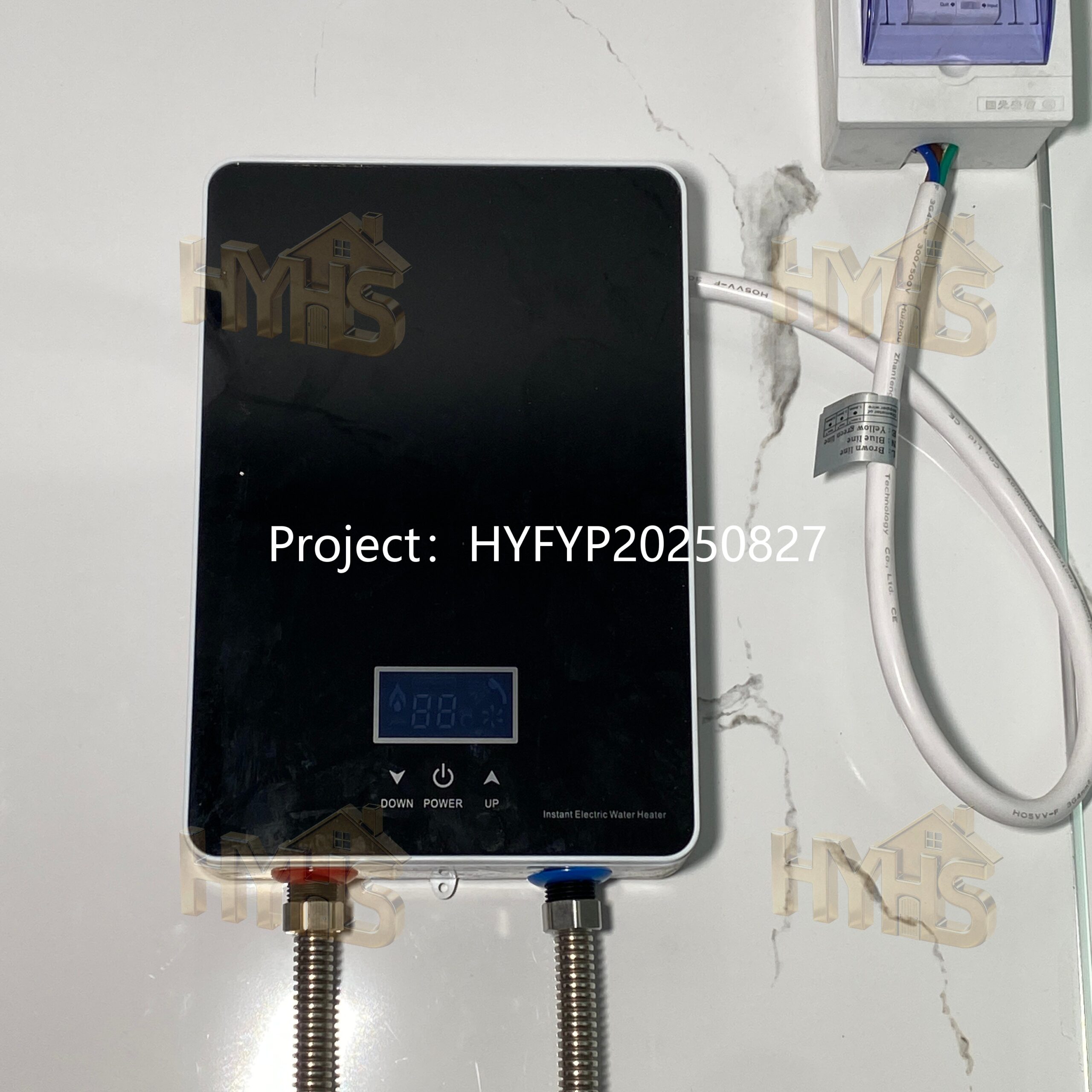

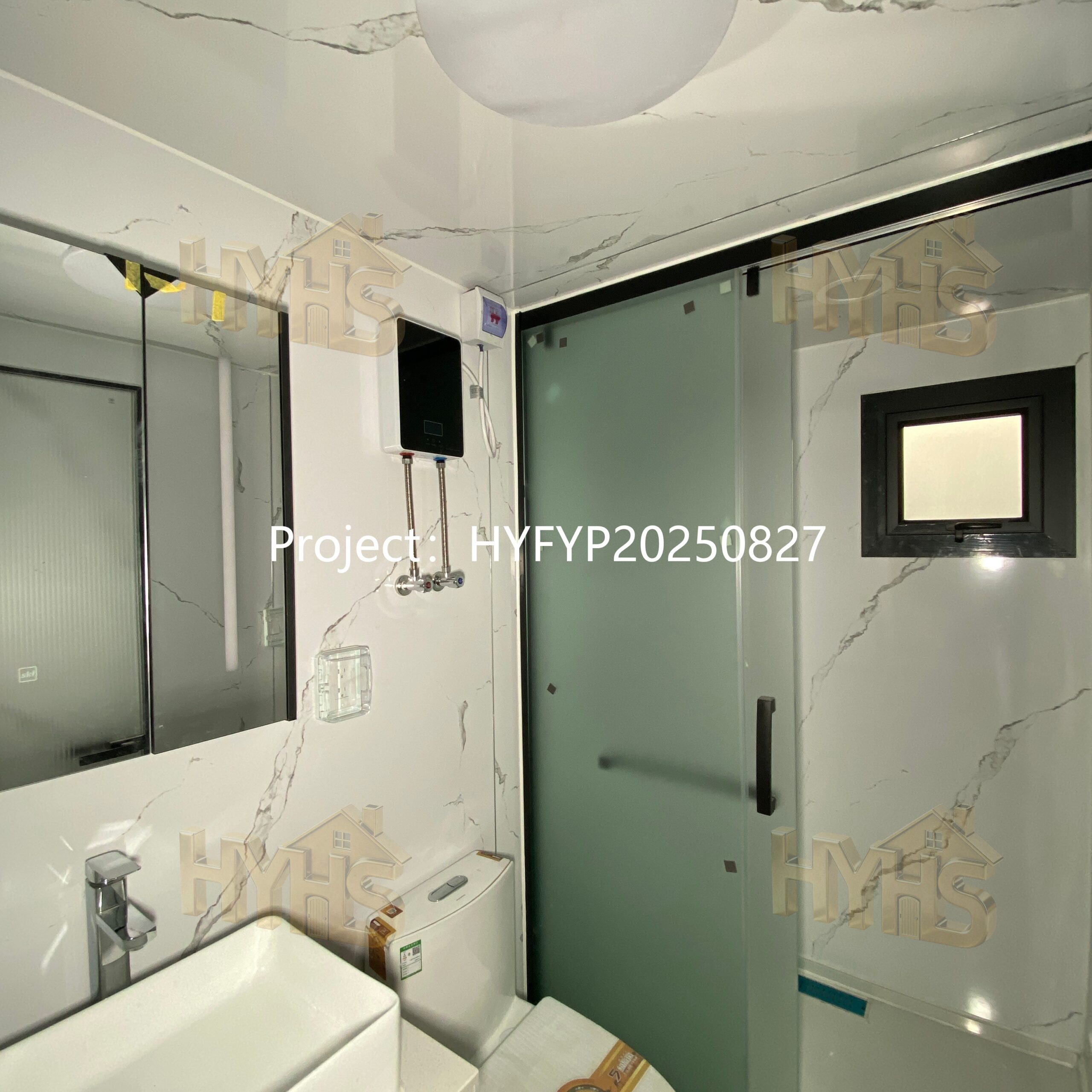

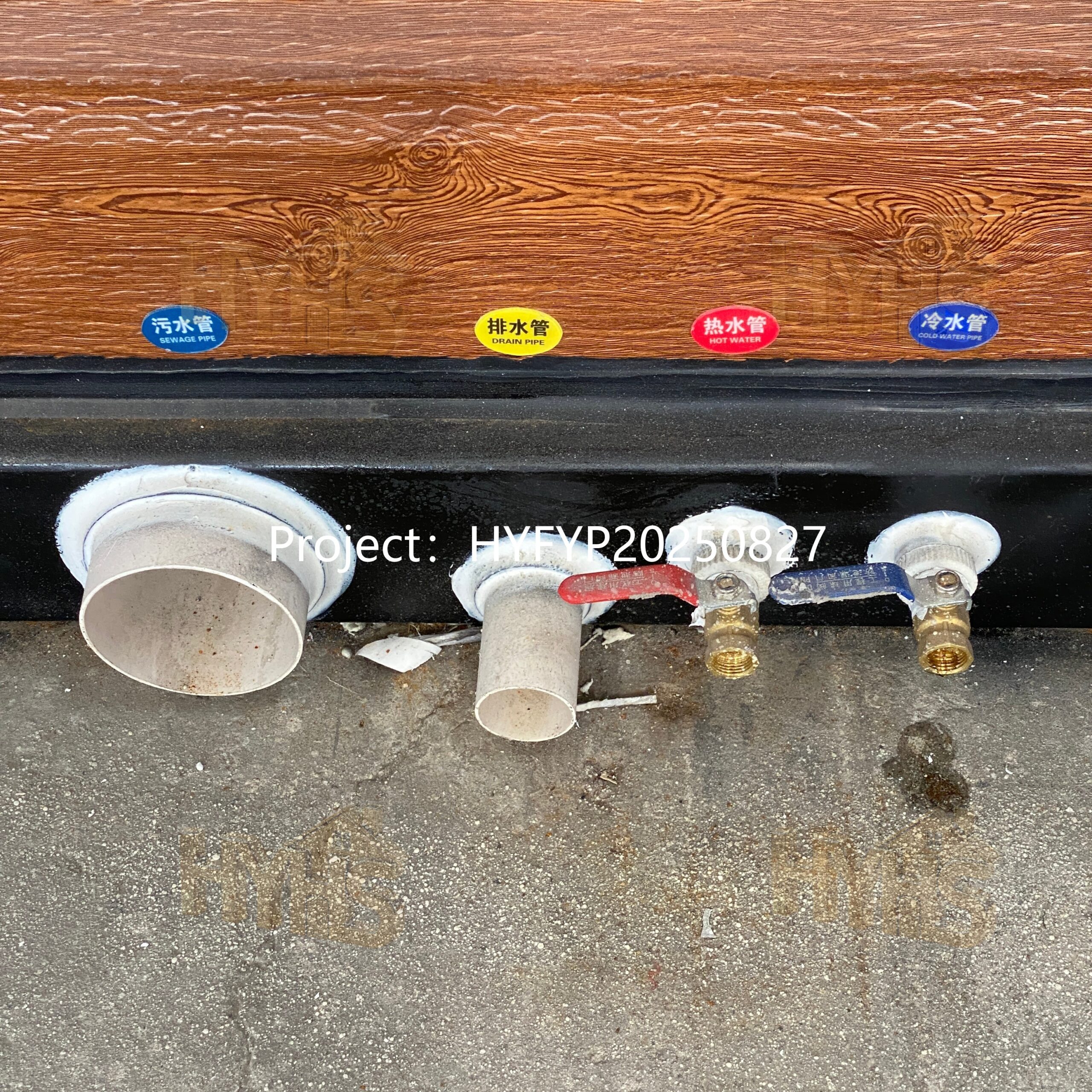

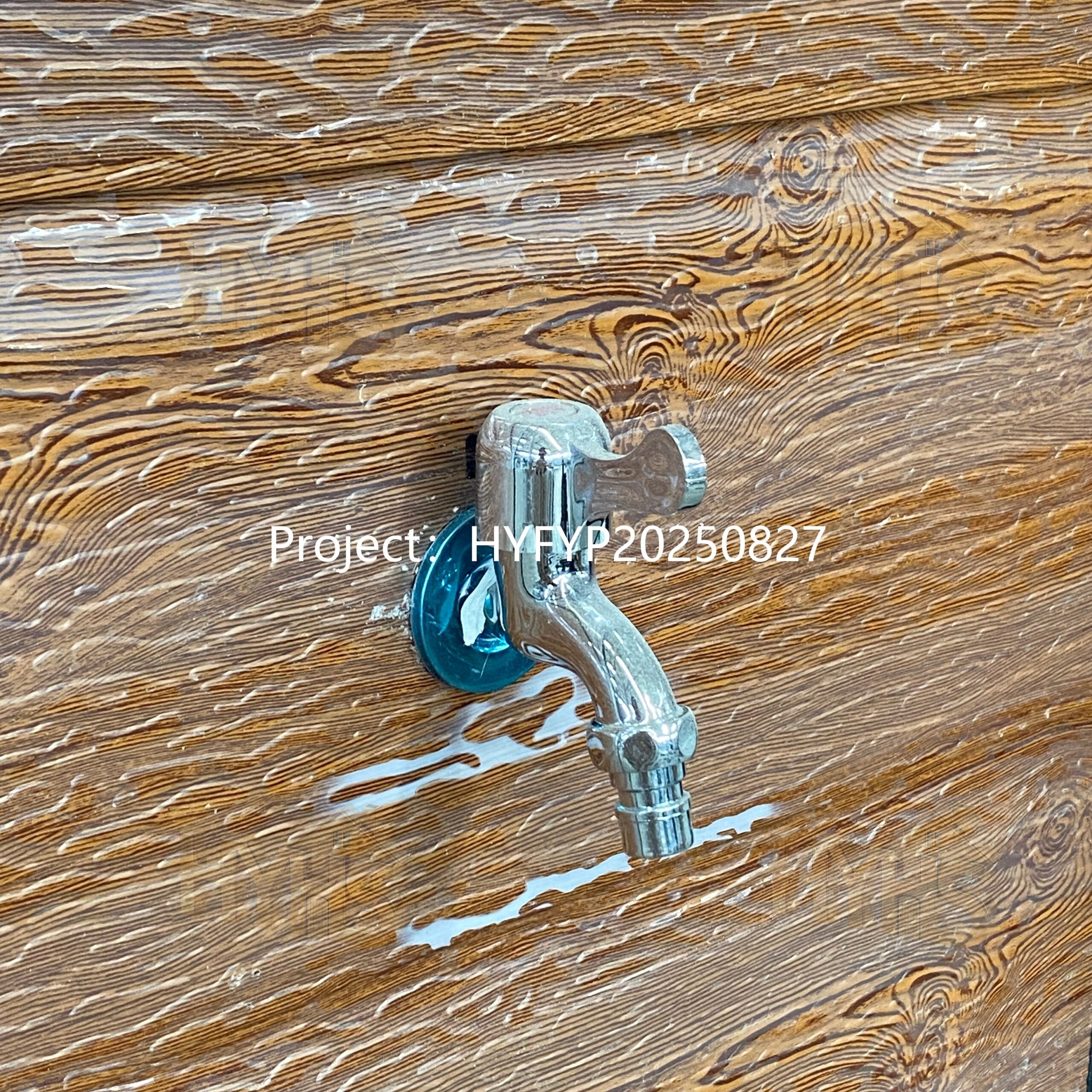

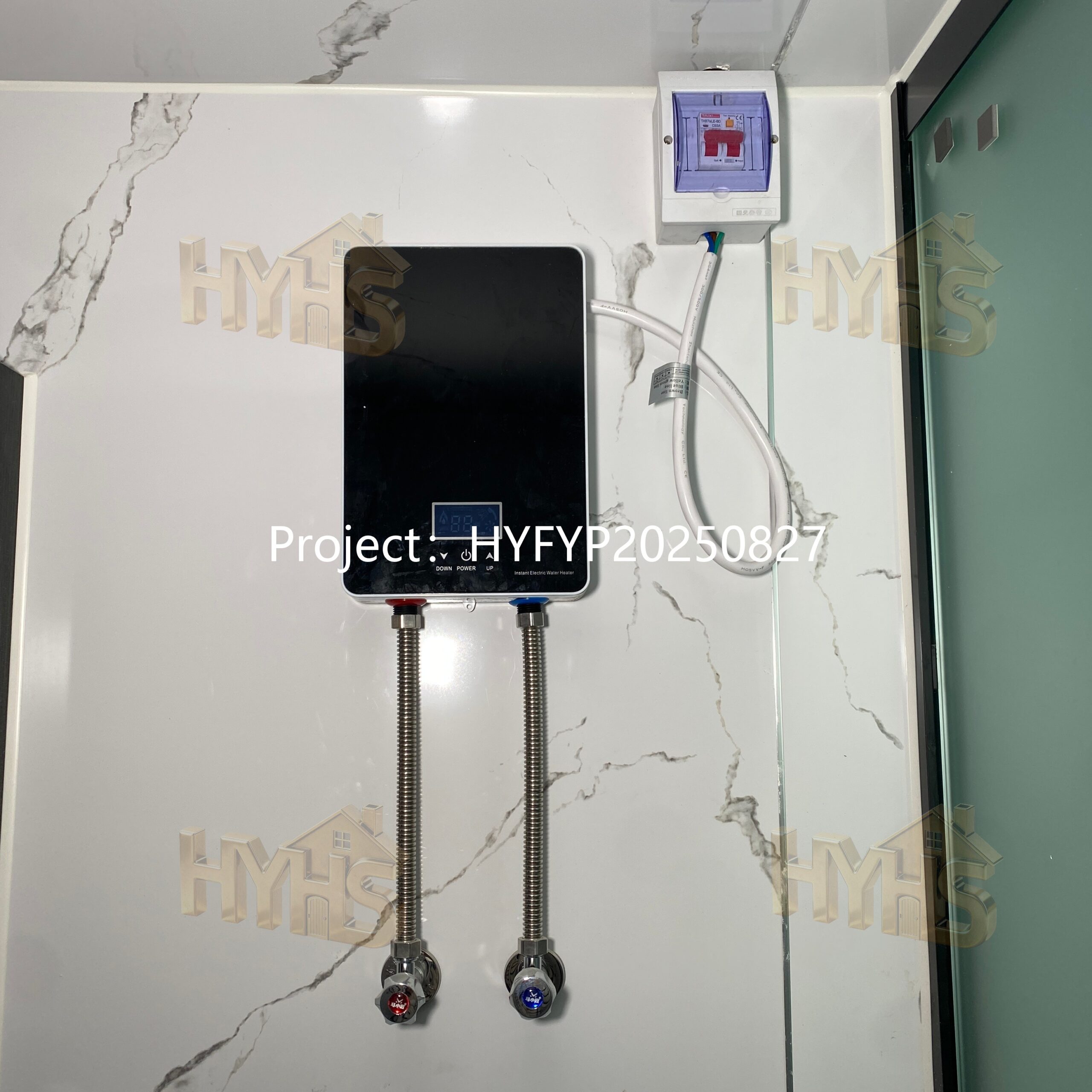

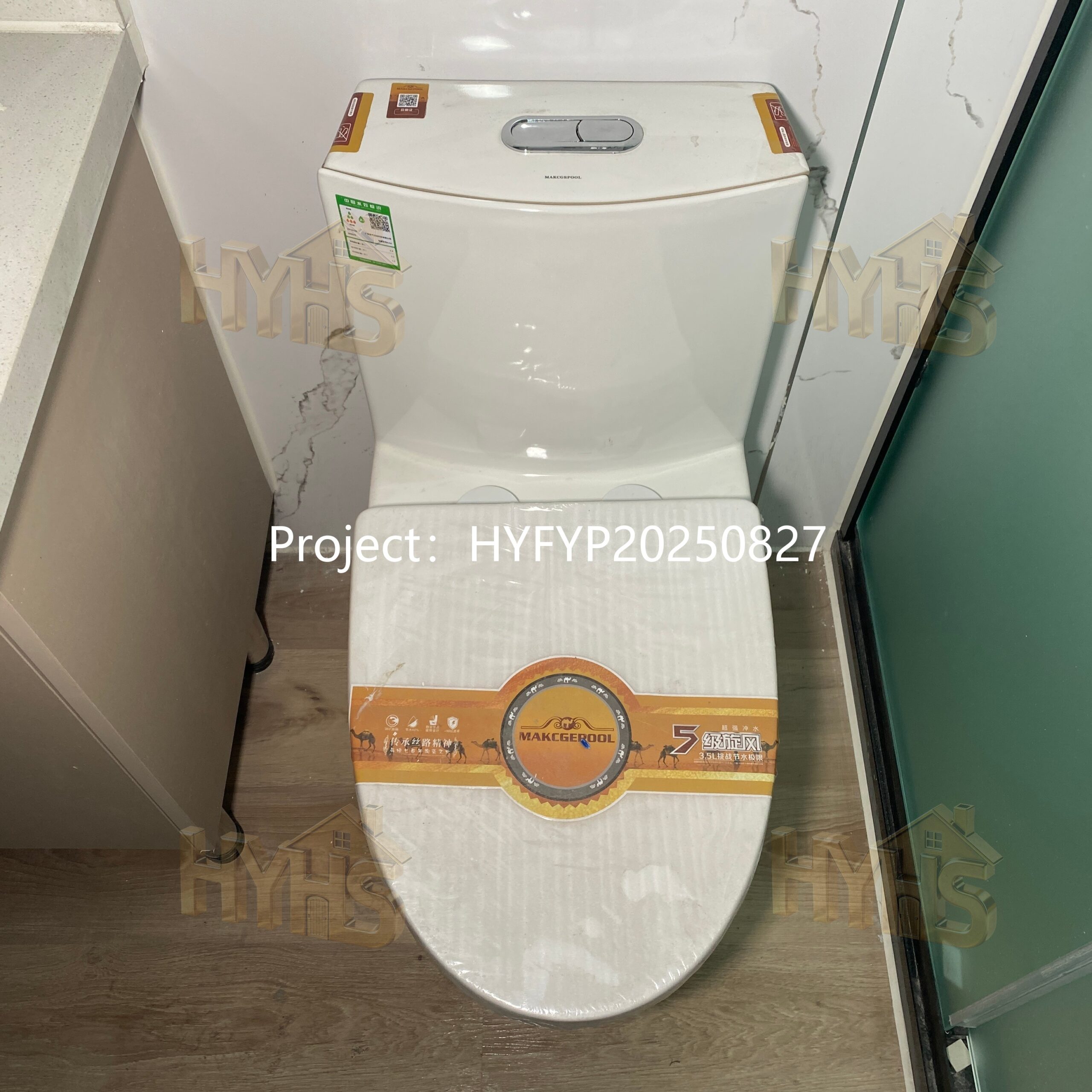

| 10 | Dry and wet separated bathroom floor with SPC click floor same as indoor. Toilet seat with buffer, cabinet doors with buffer device. Full house UV board + top UV board large flower white. Entrance door black frame corrugated door. Marble floor matte sliding door black frame to top door. Wash basin mirror (smart mirror cabinet) must be consistent with the picture. Reserve water heater cold and hot water pipes. Install external water tap for washing machine connection. | ||

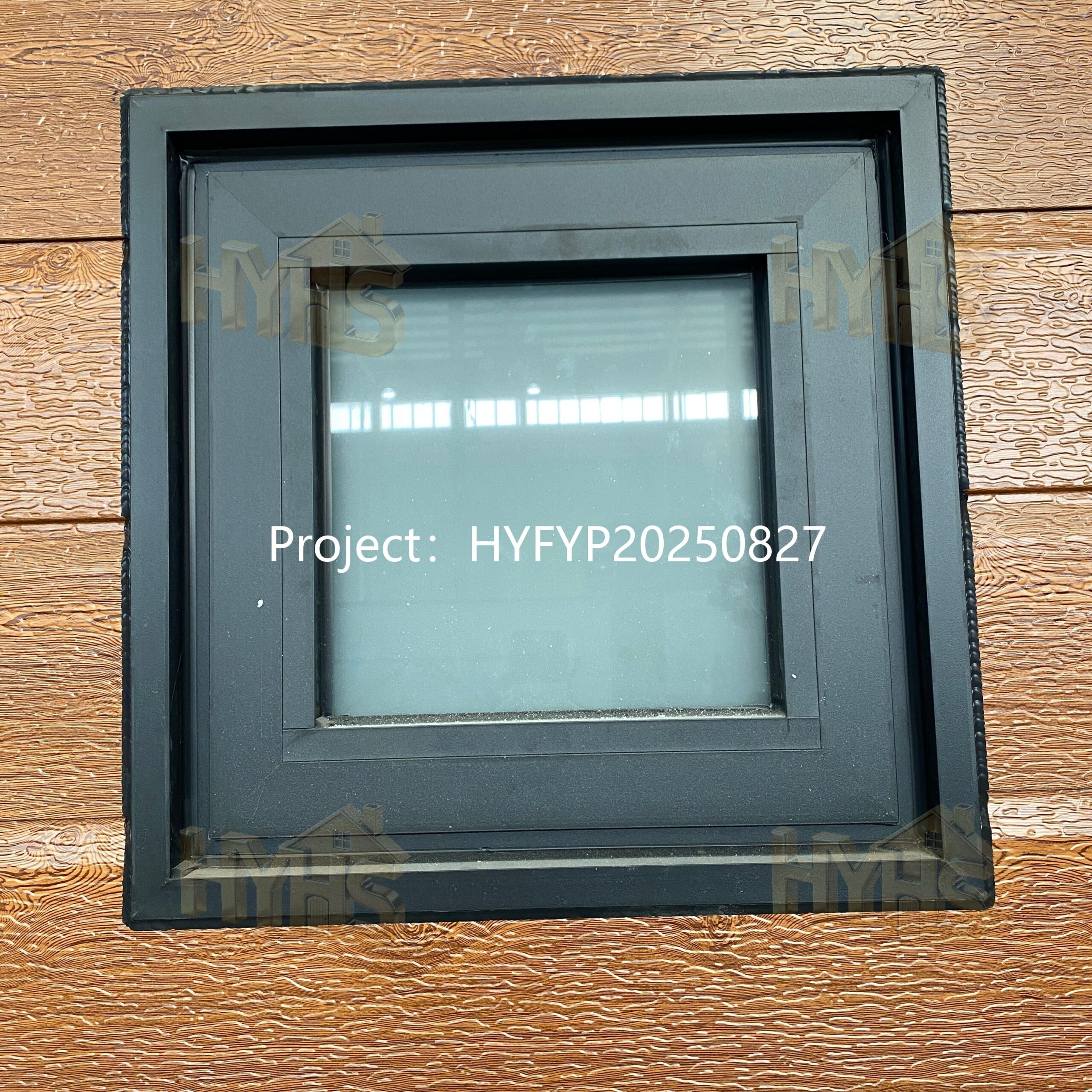

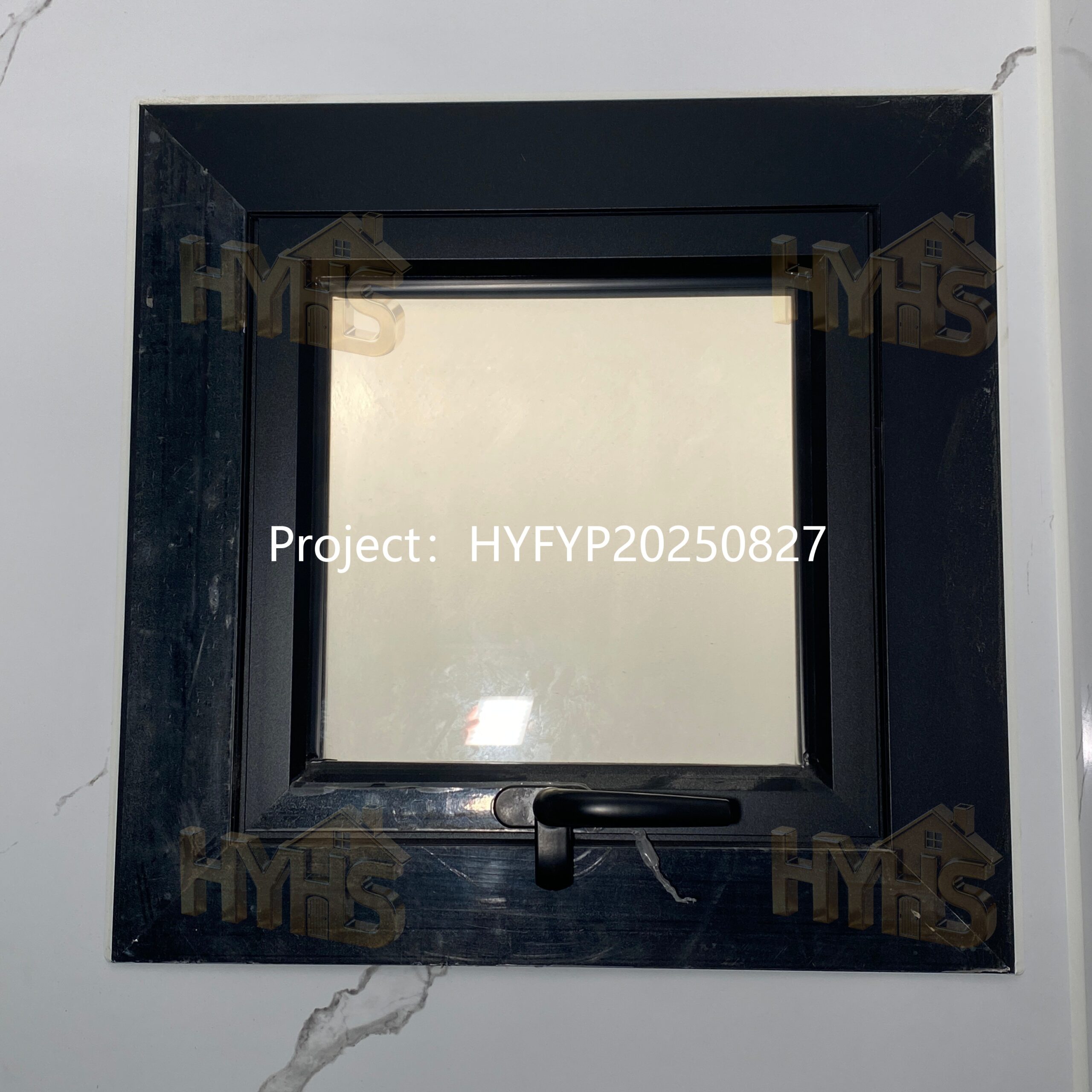

| 11 | Bathroom windows: Black broken bridge aluminum outward opening window with tempered glass blue film 500 * 500 | 1 | |

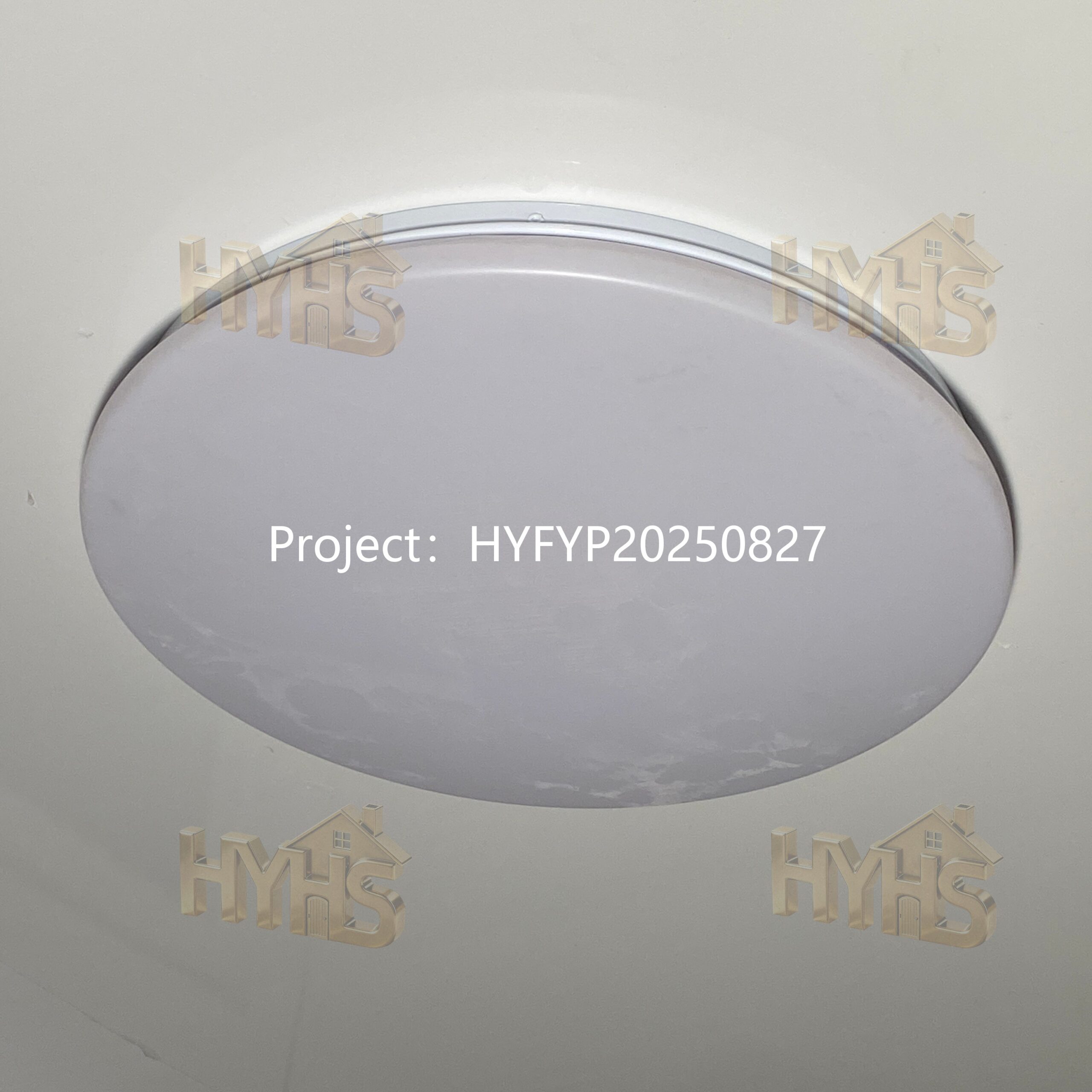

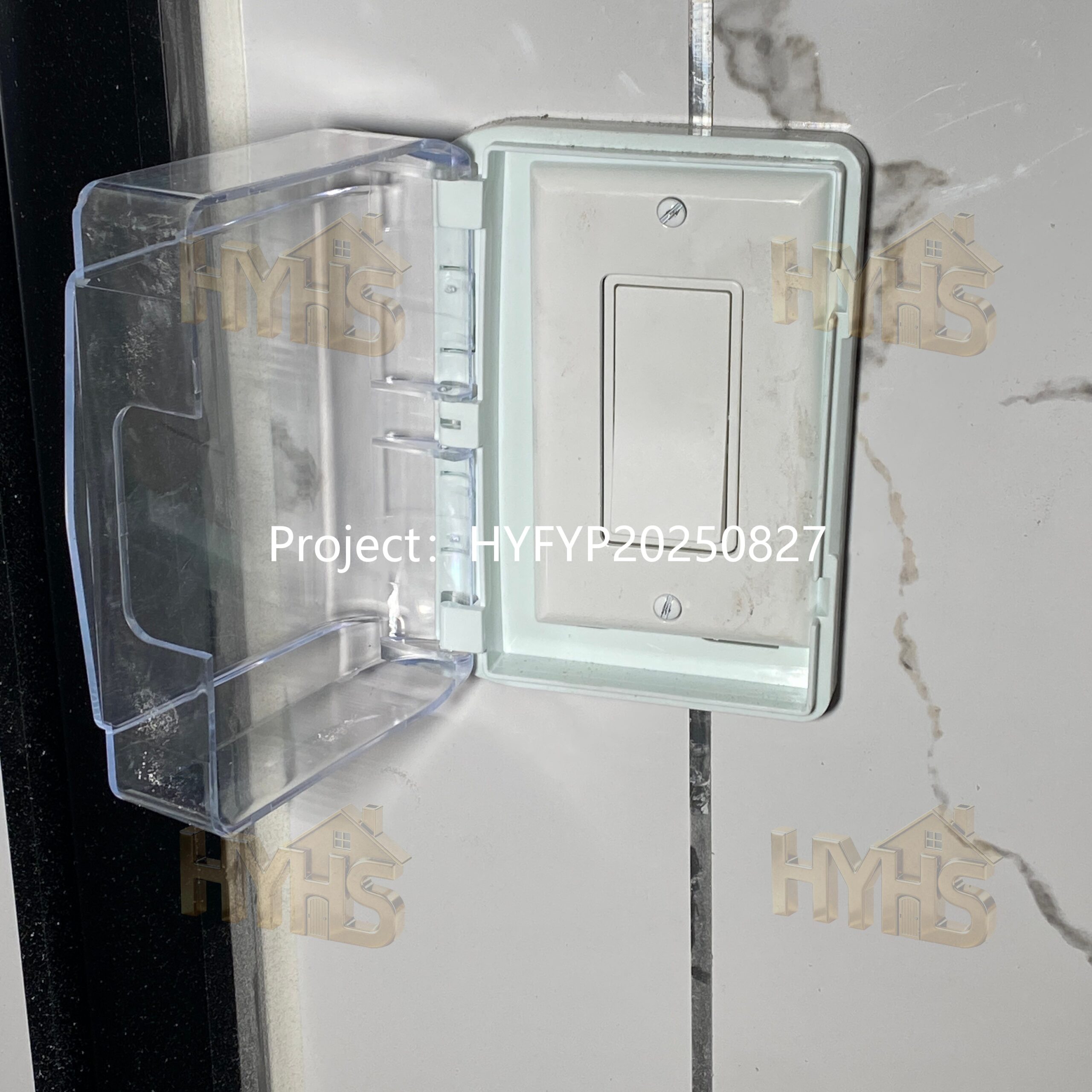

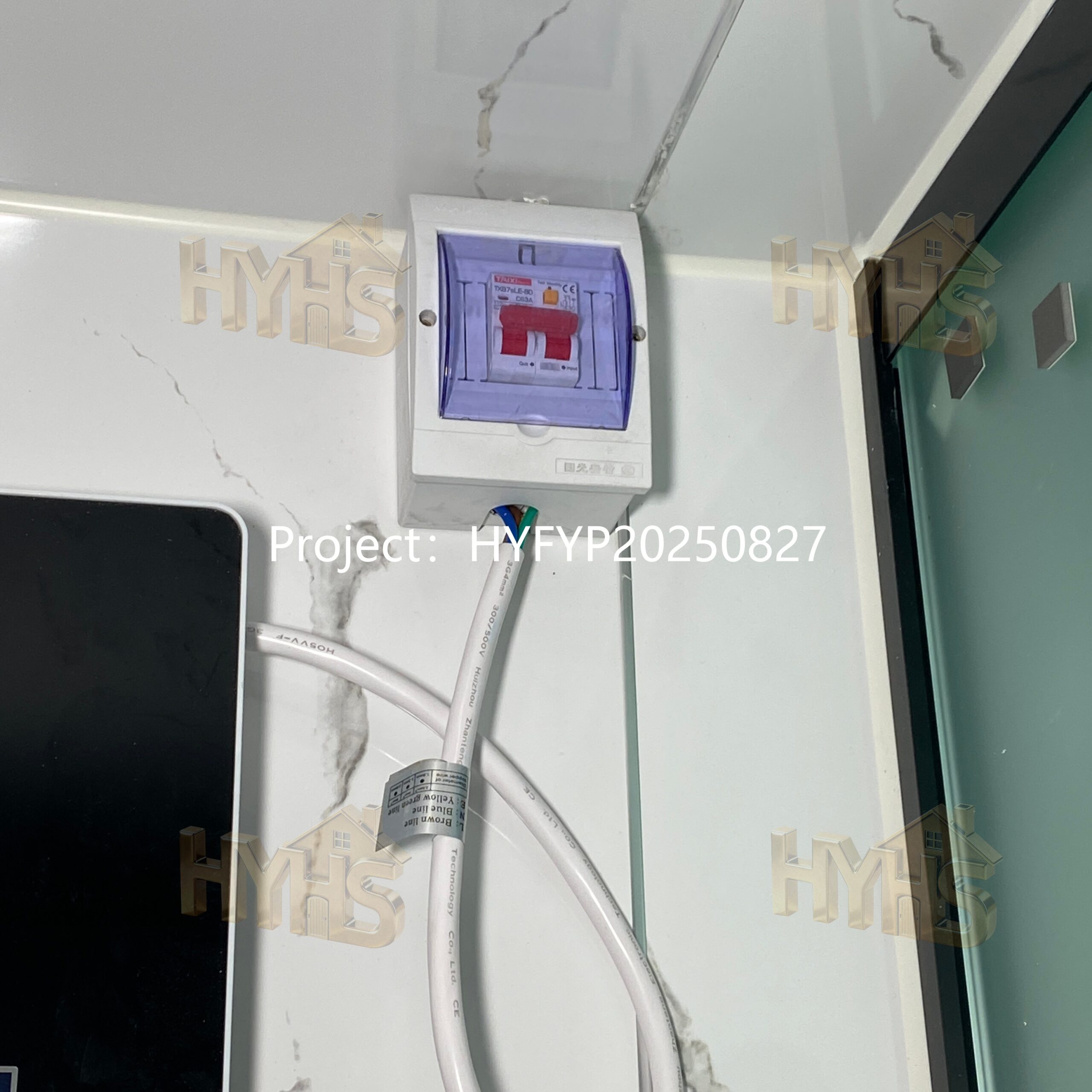

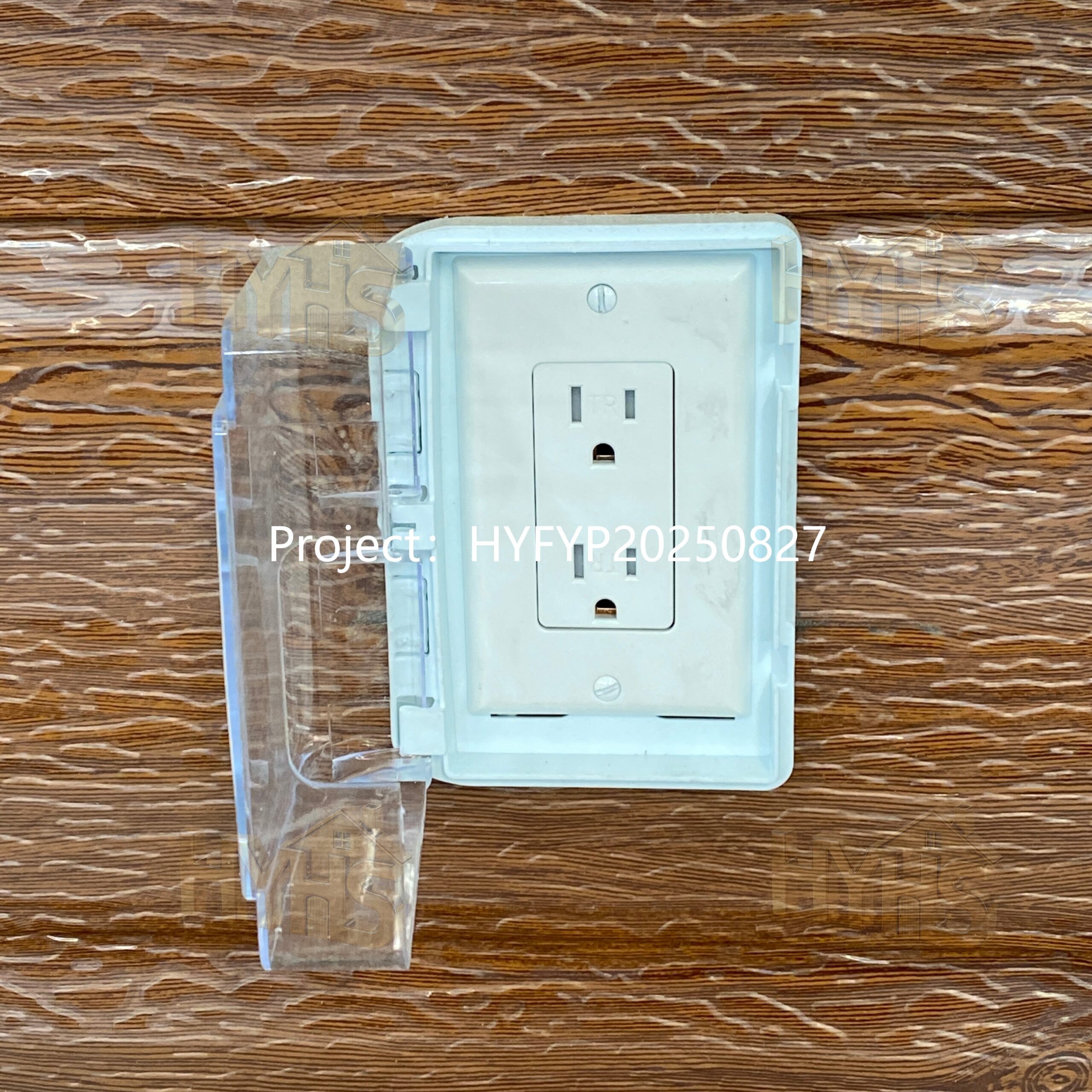

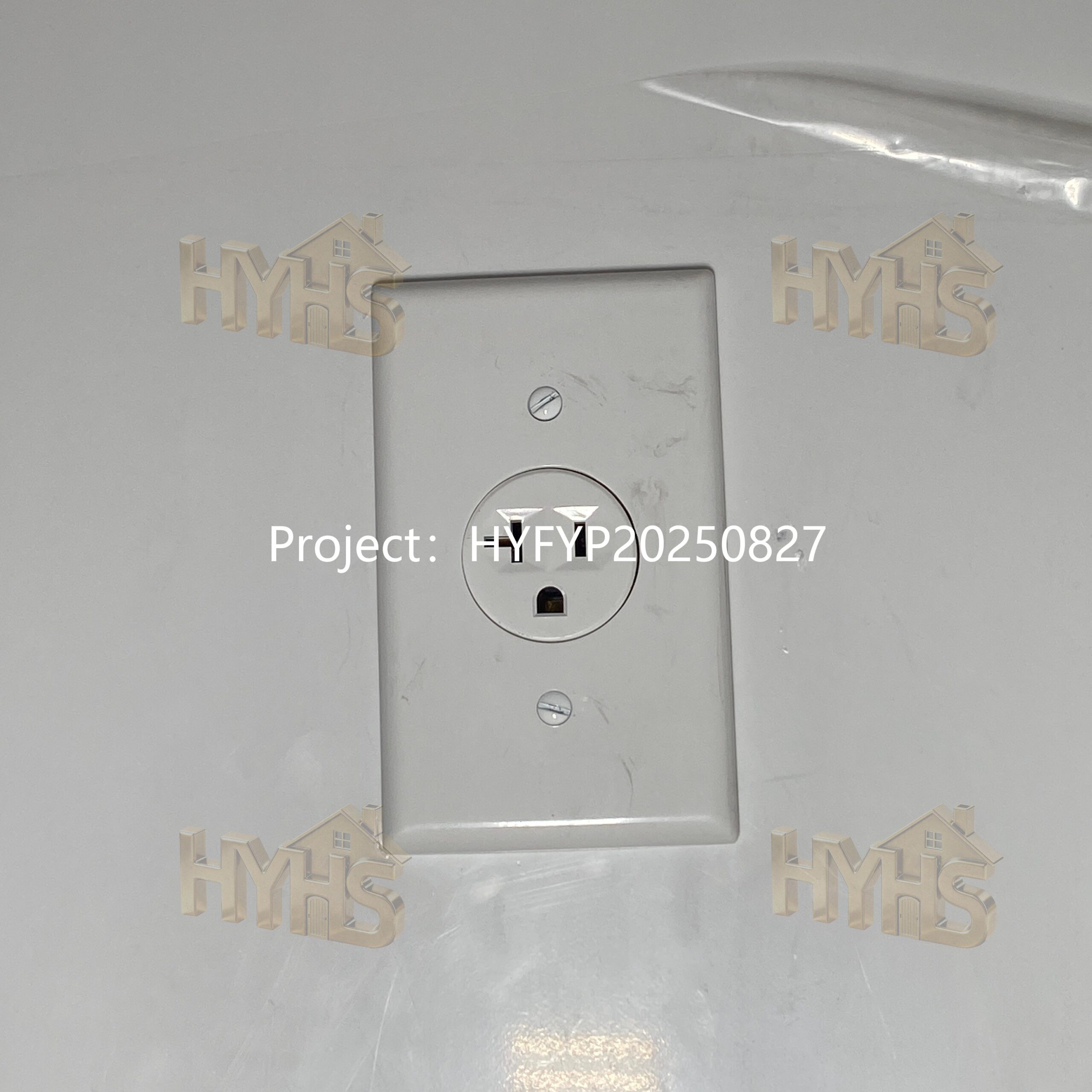

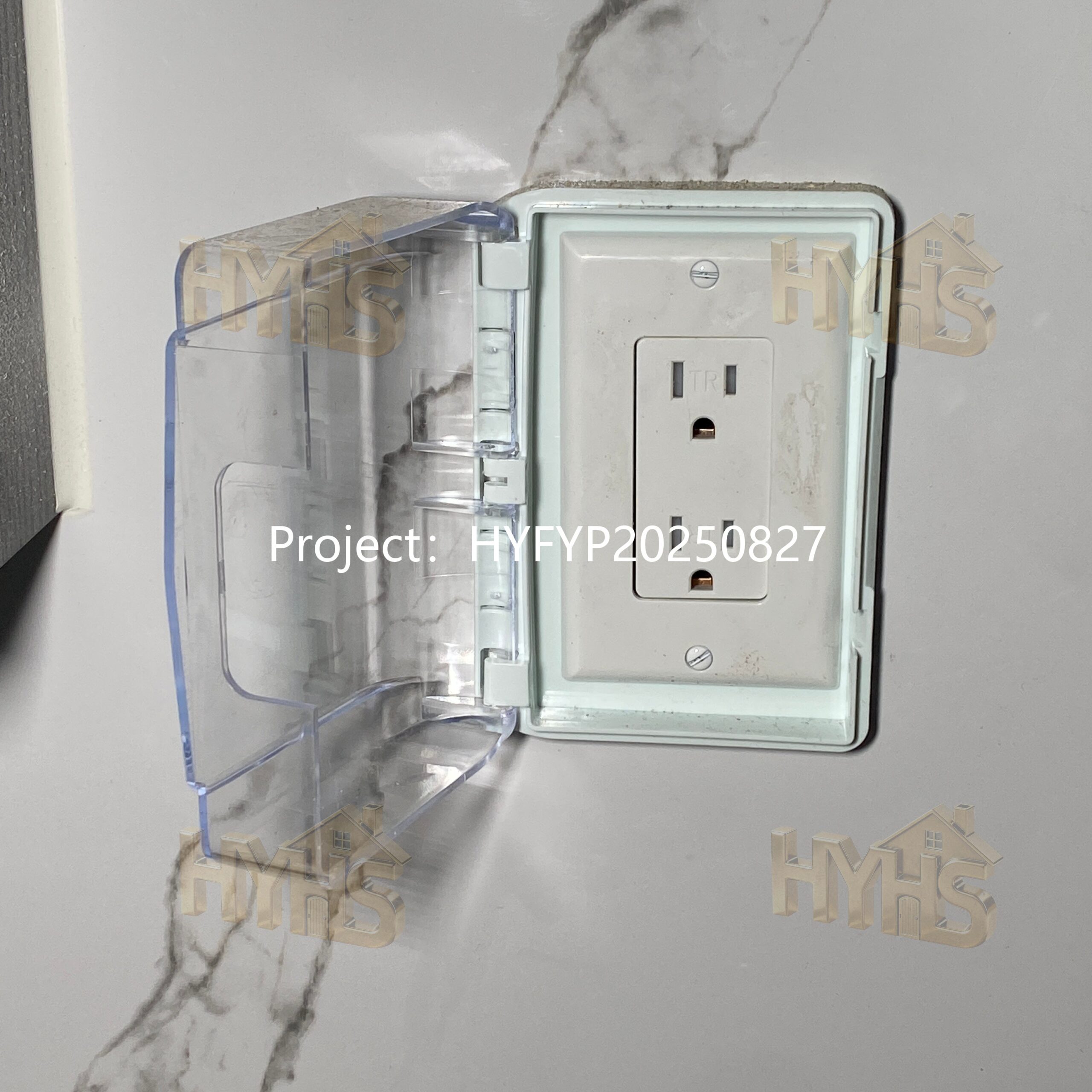

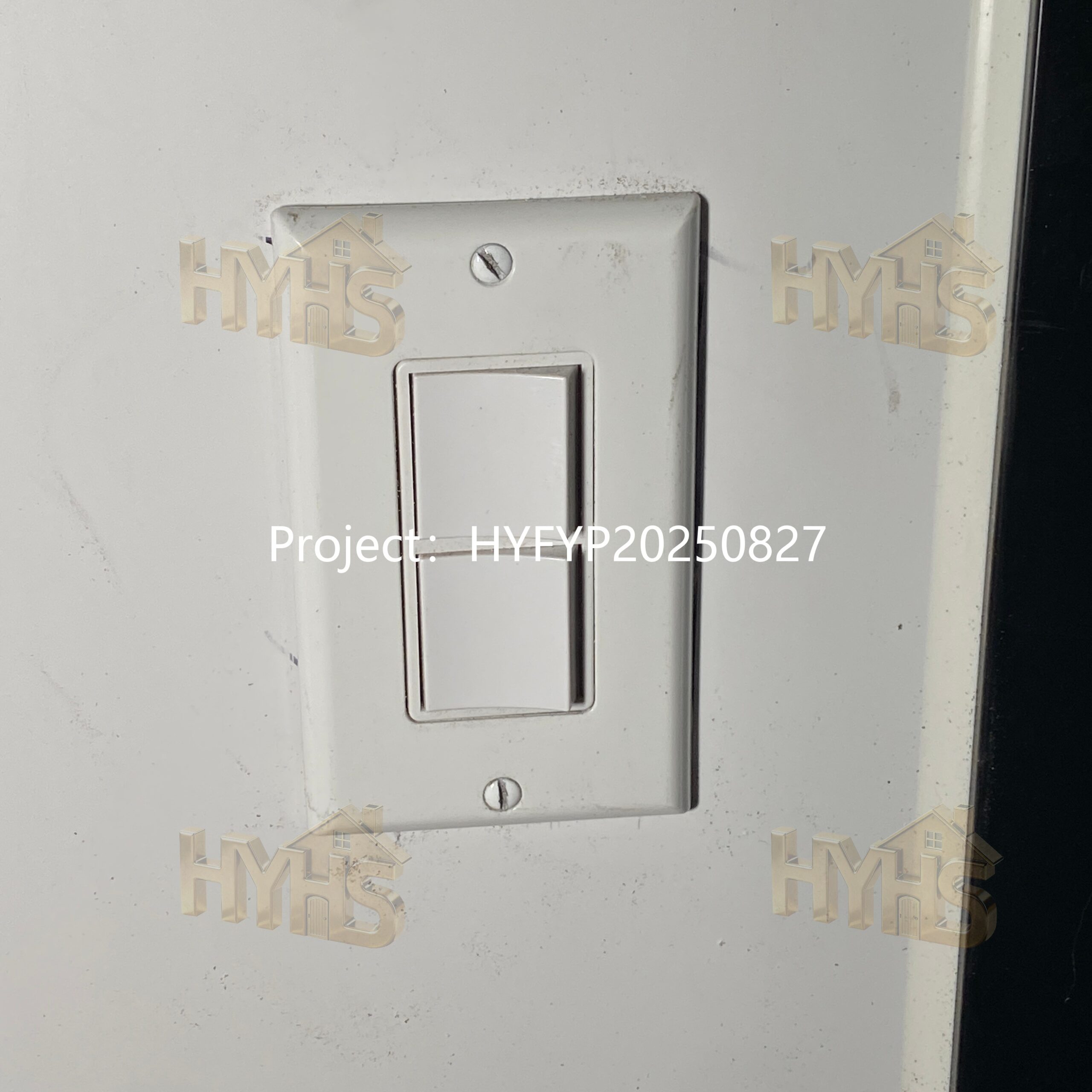

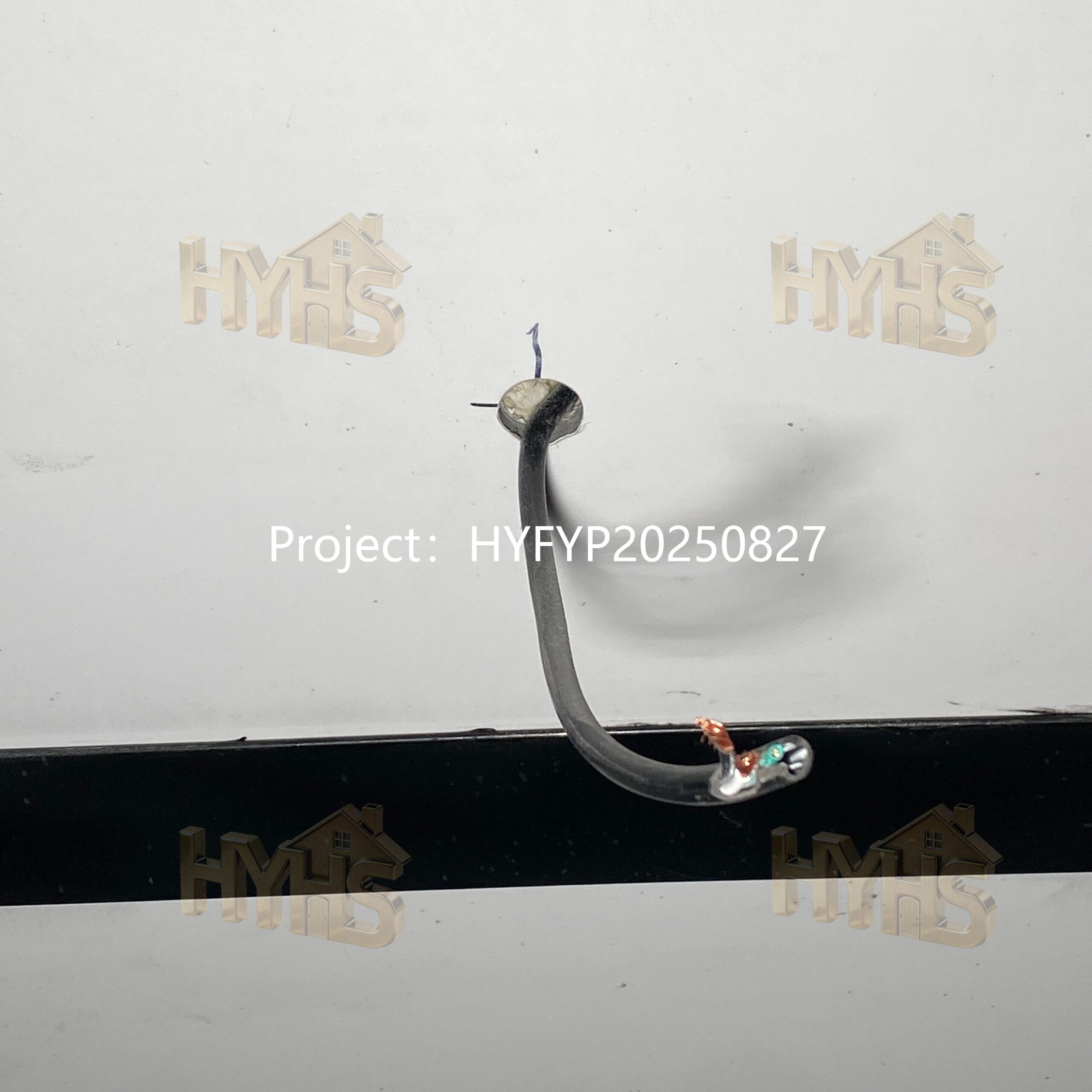

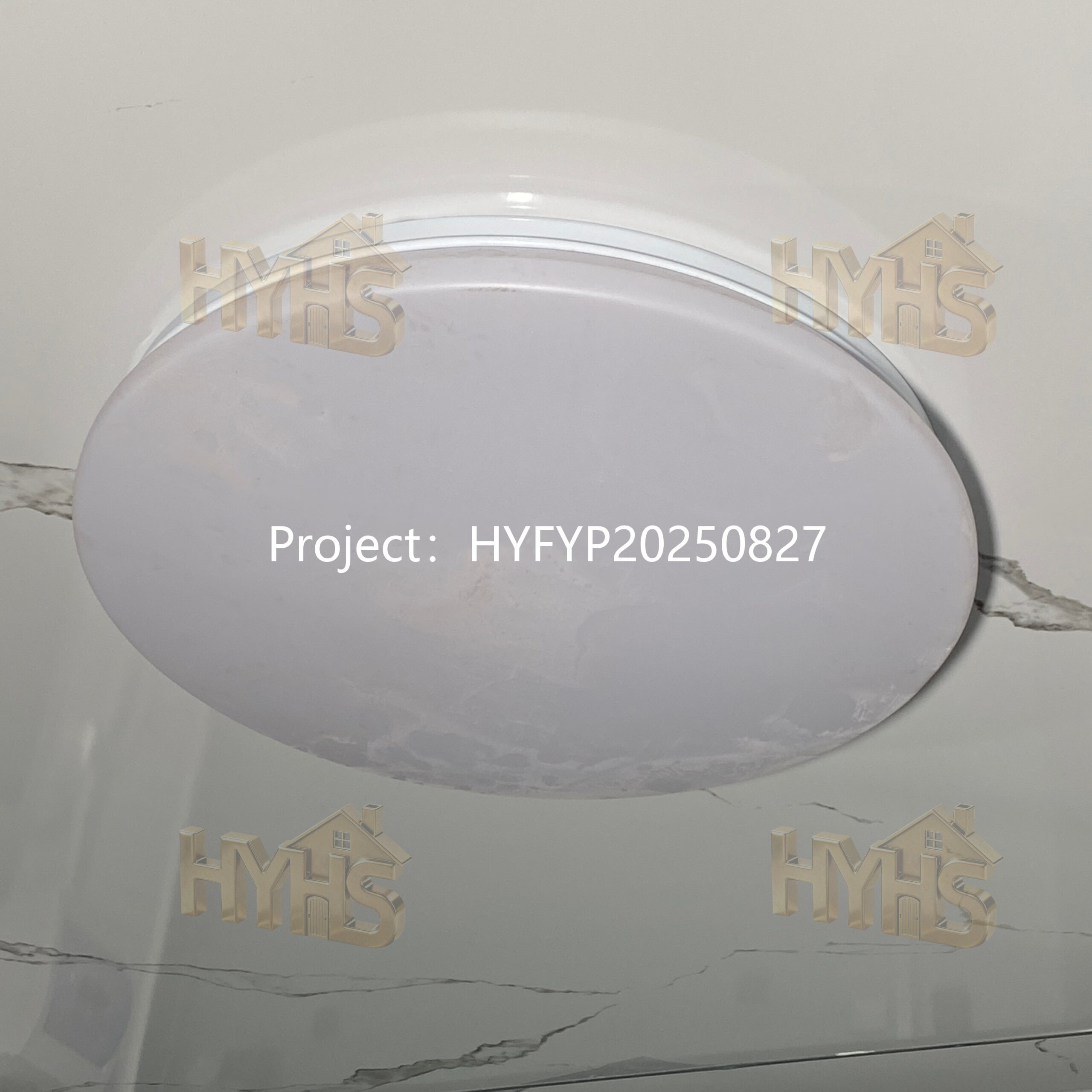

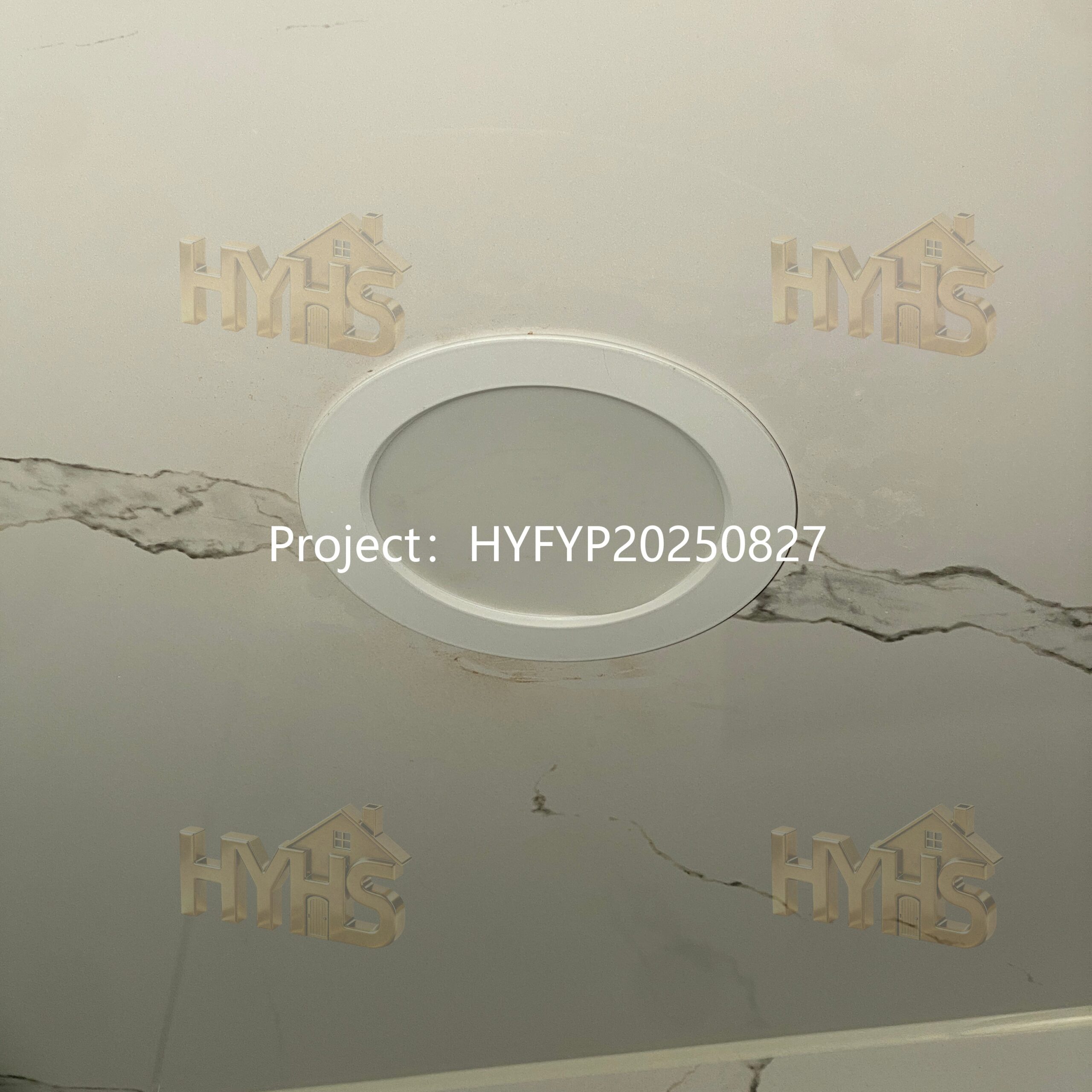

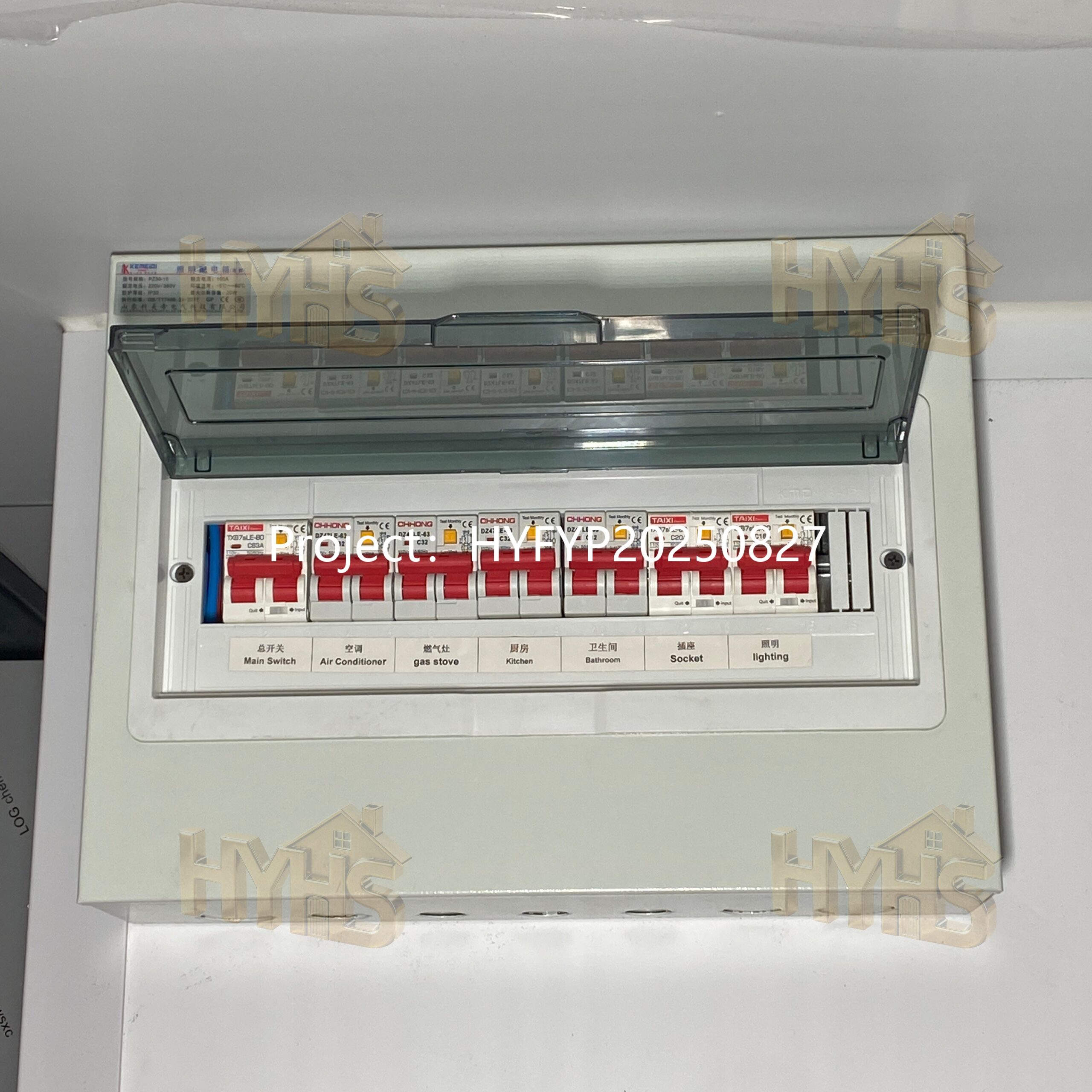

| 12 | UL certified US standard electrical outlets, 6 lights, 6 circuit breakers, 110V voltage | 1 | |
| 13 | Roof TPO waterproof membrane covering corrugated steel plate 1.0mm thick as shown. Side wings also need to be covered. Corrugated board needs fluorocarbon paint spray, especially the edges which are prone to rust. External T-shaped tiles also need to be painted again. | 1 | |

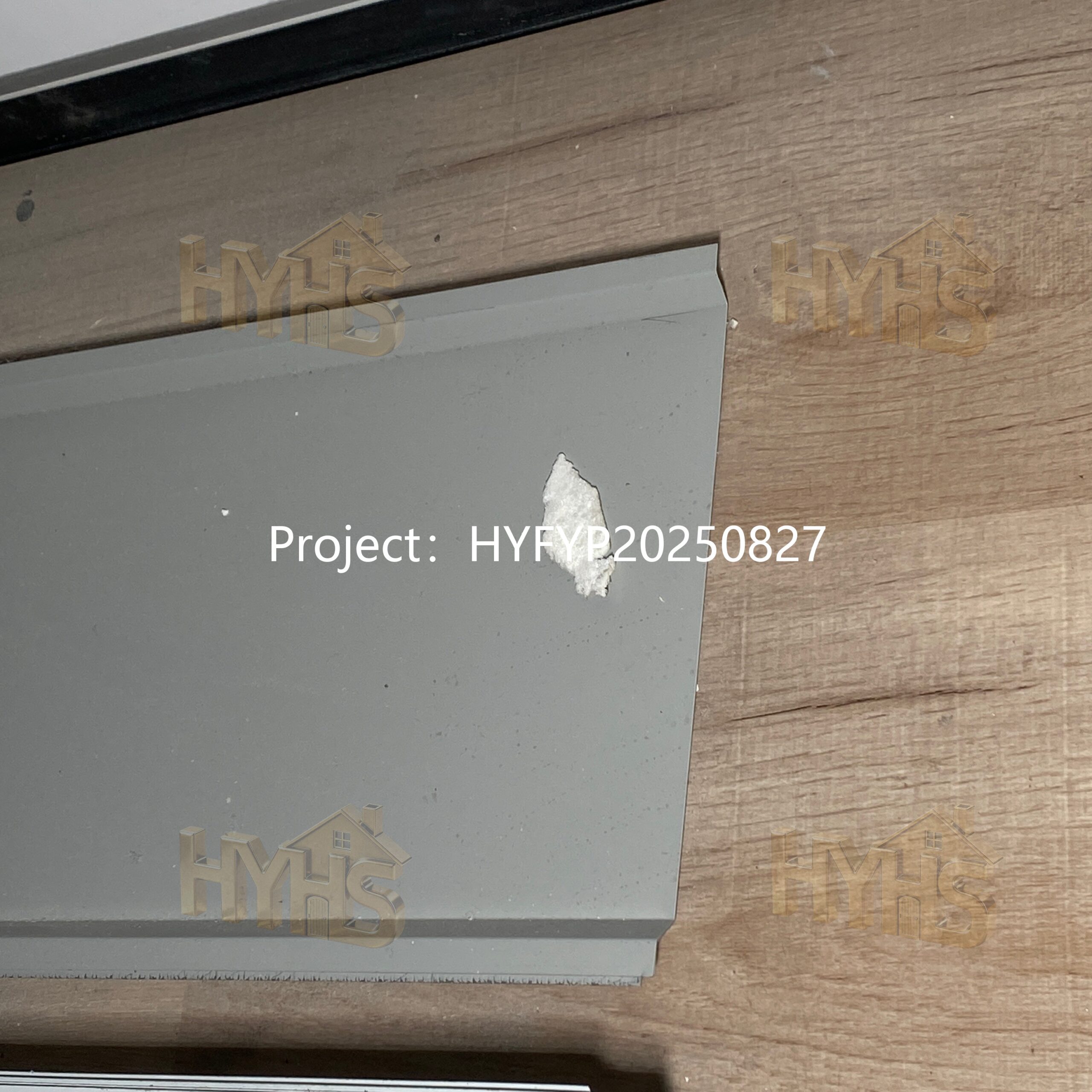

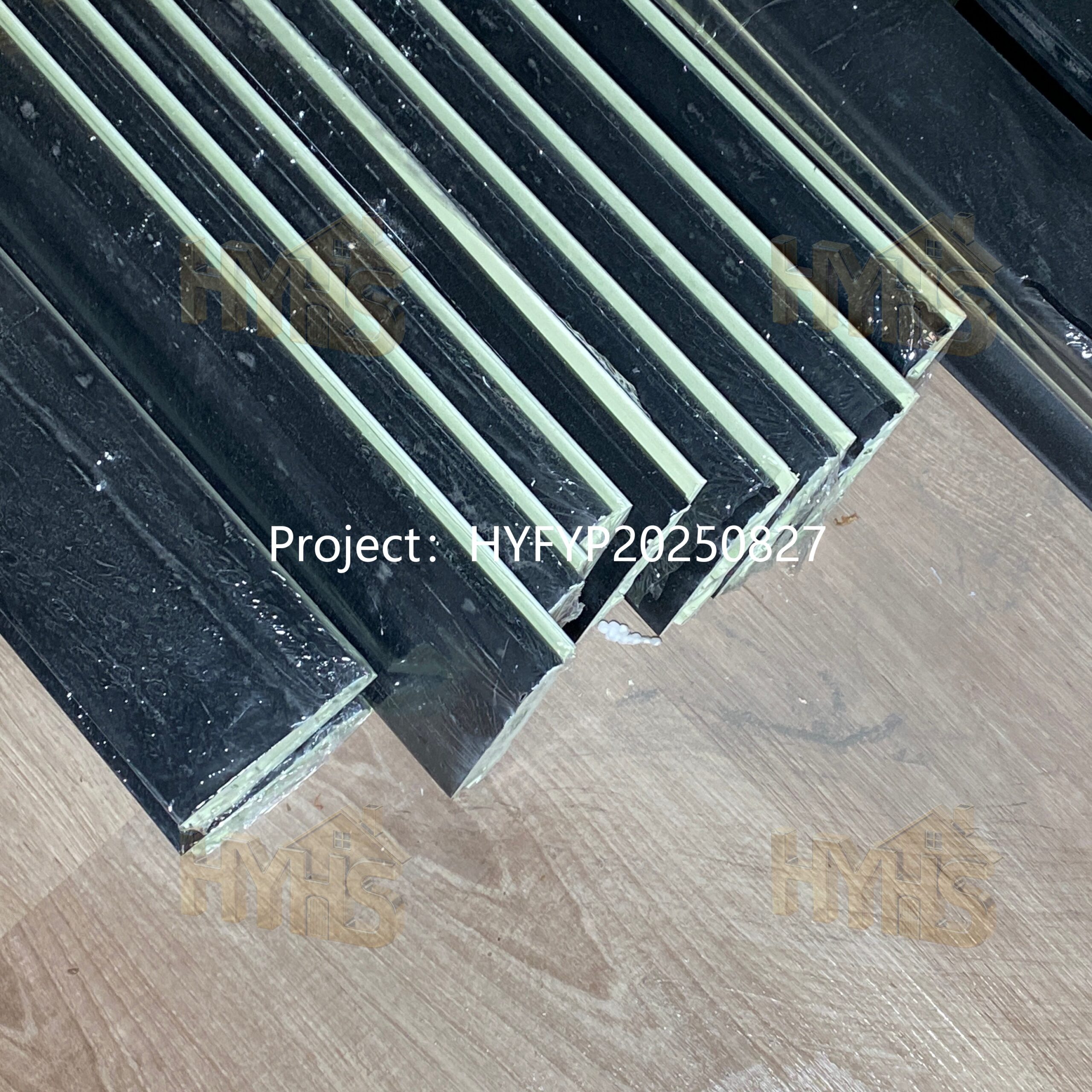

| 14 | Black skirting board + top corner line + inside corner line + top扣板 | 1 | |
| 15 | Lightning rod | 1 | |

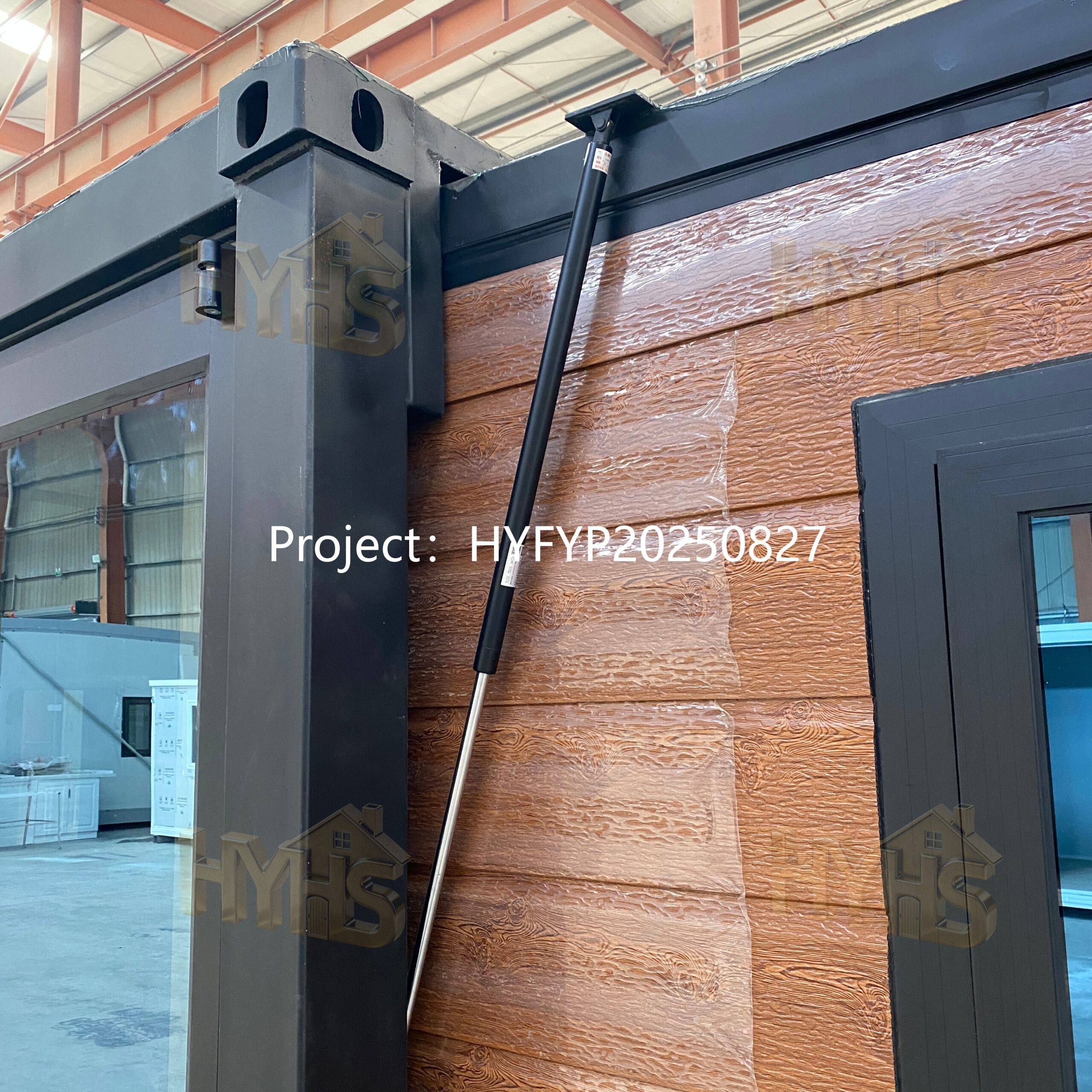

| 16 | Hydraulic rod | 4 | |

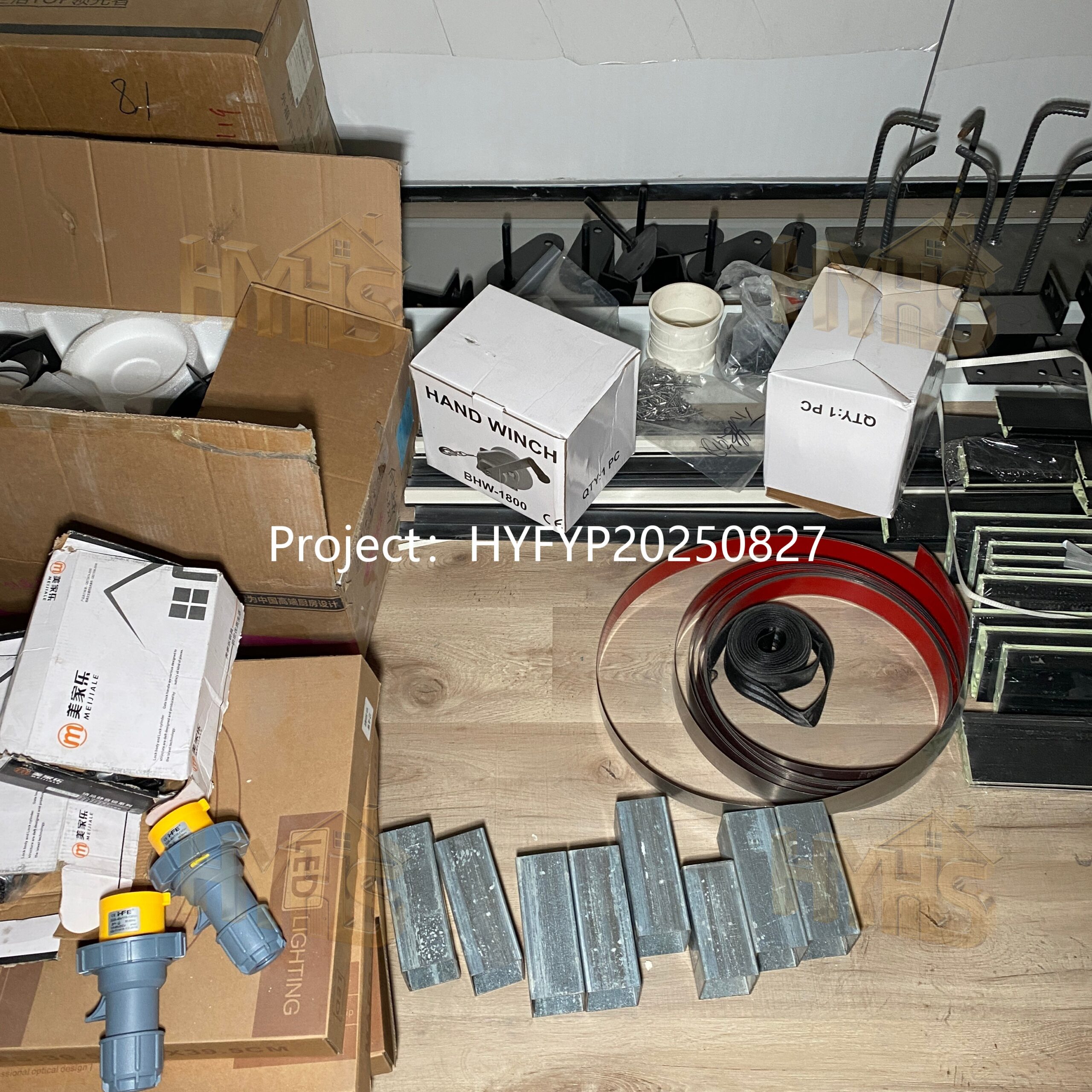

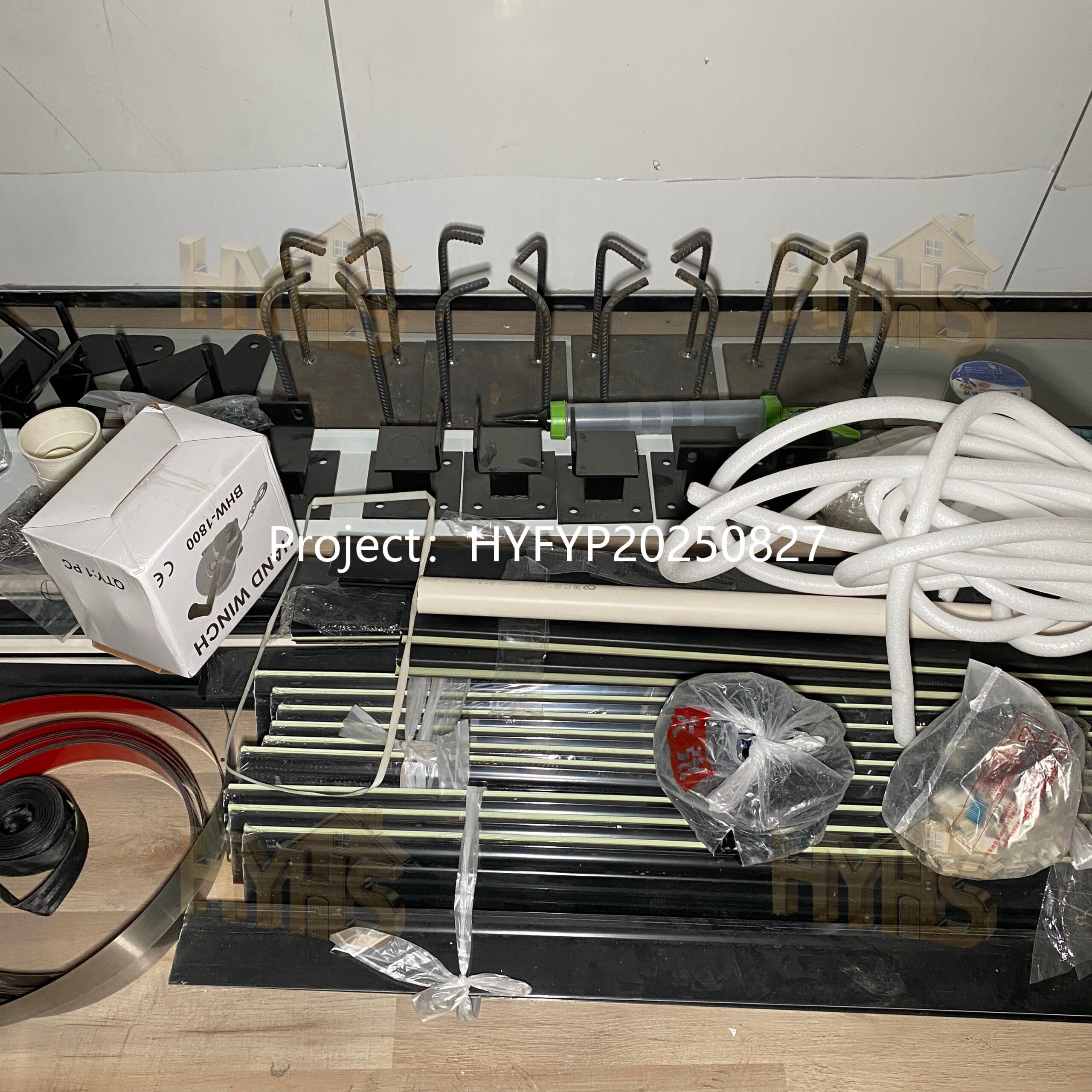

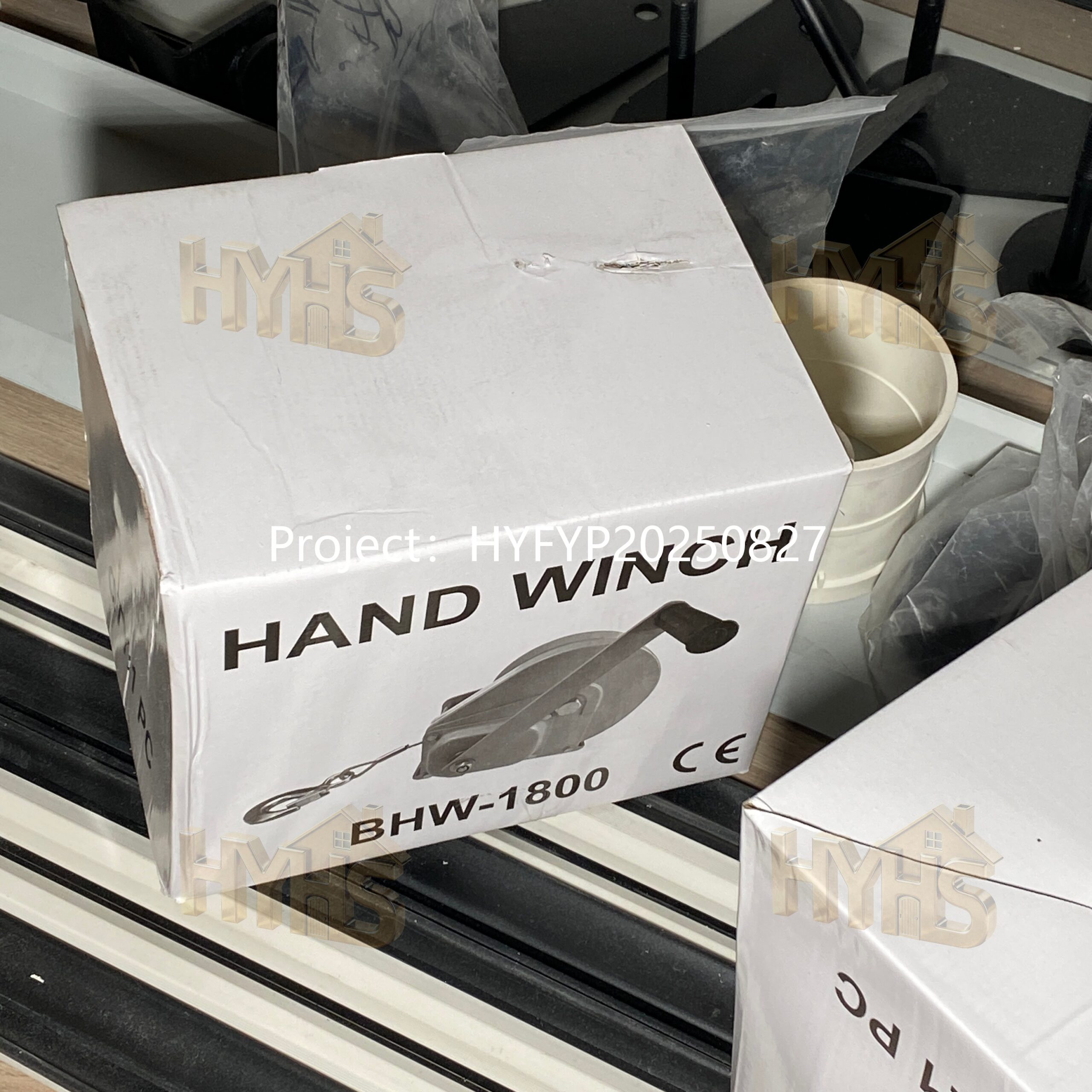

| 17 | Winch 1800 lbs (2 units) | DMSX-1044 light wenge water wave oblique groove | 2 |
| 18 | Metal carved board light wenge water wave oblique groove | 1 | |

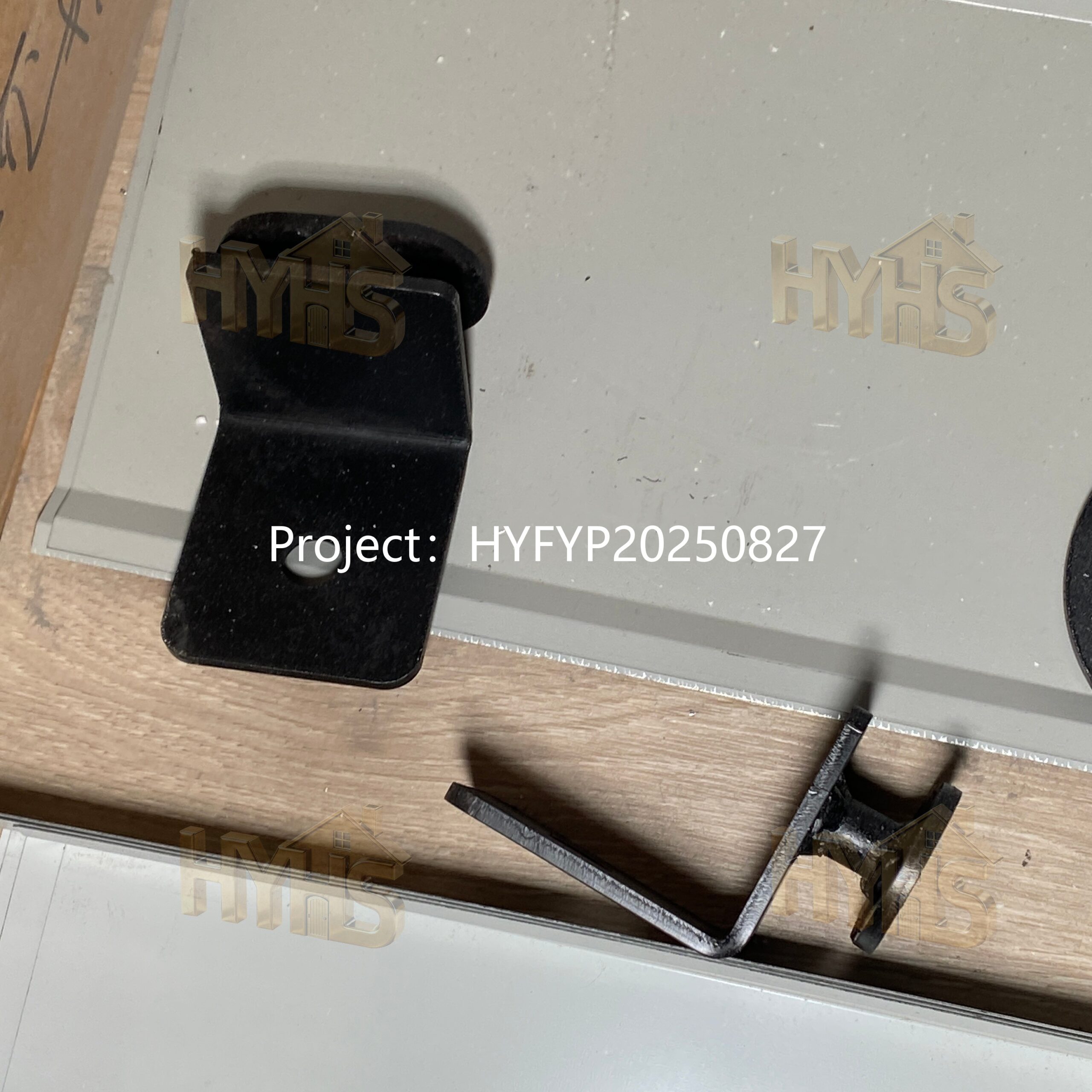

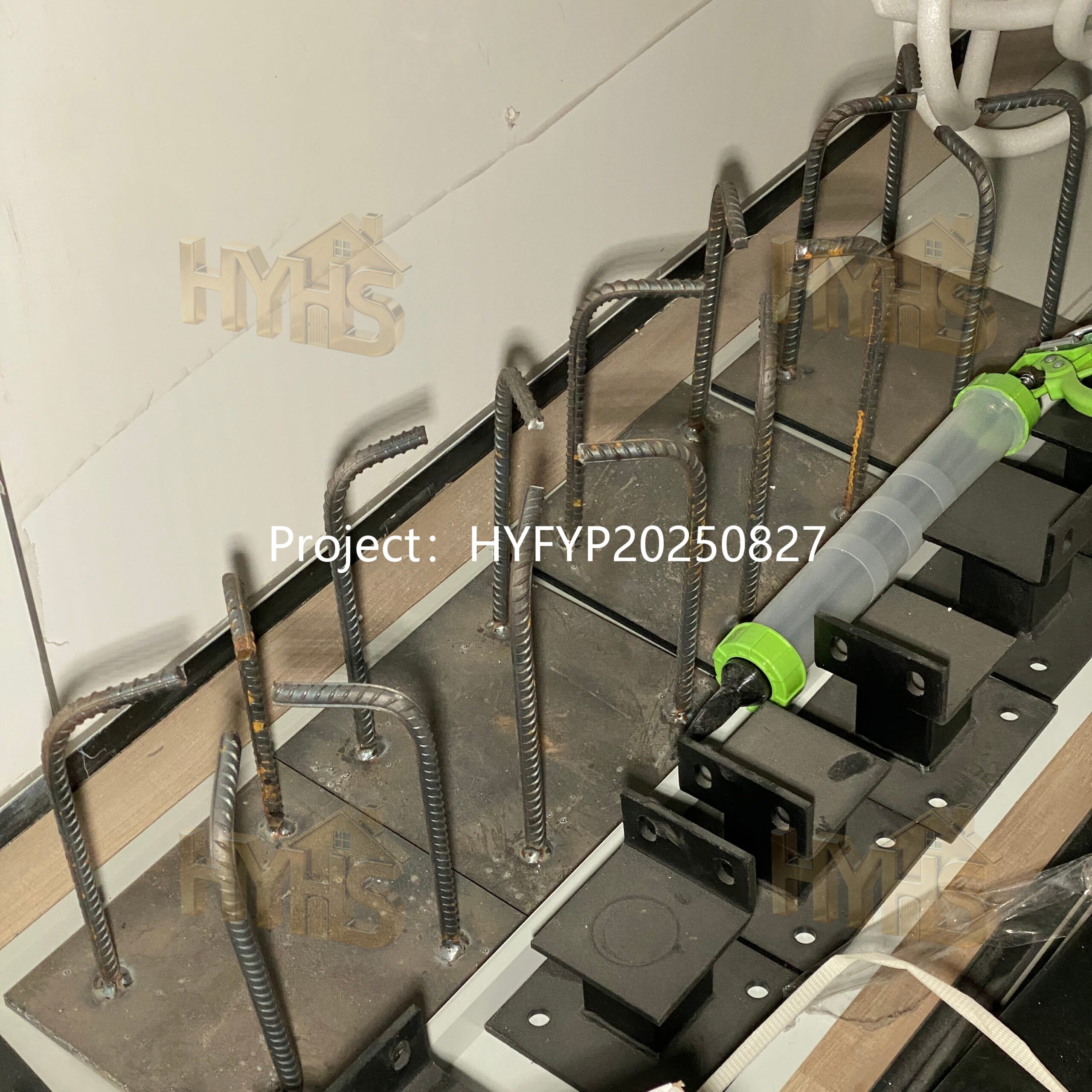

| 19 | Cement foundation embedded plate | 4 | |

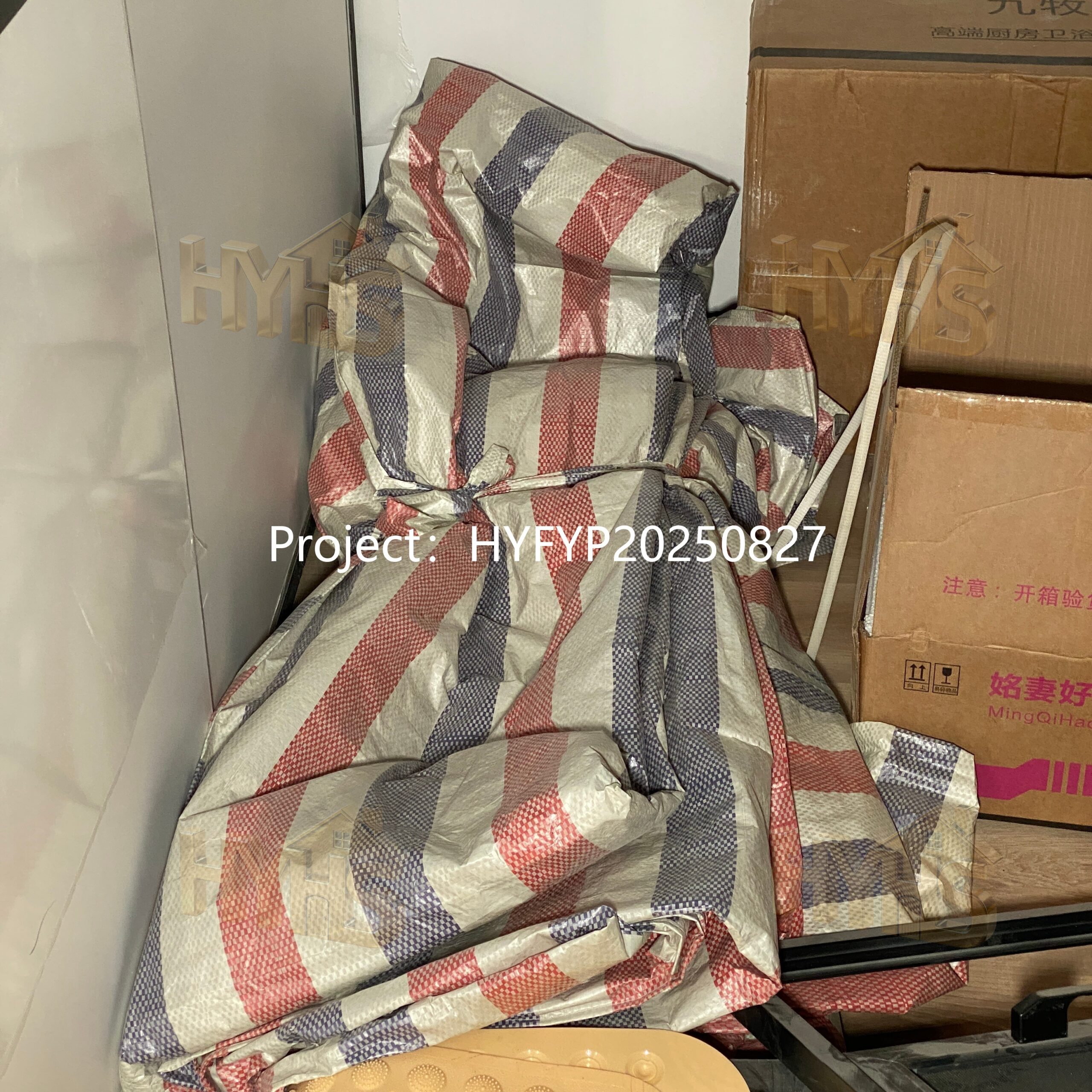

| 20 | External packaging dust cover | 1 | |
| 21 | Embedded parts size matching diagram | 6 | |

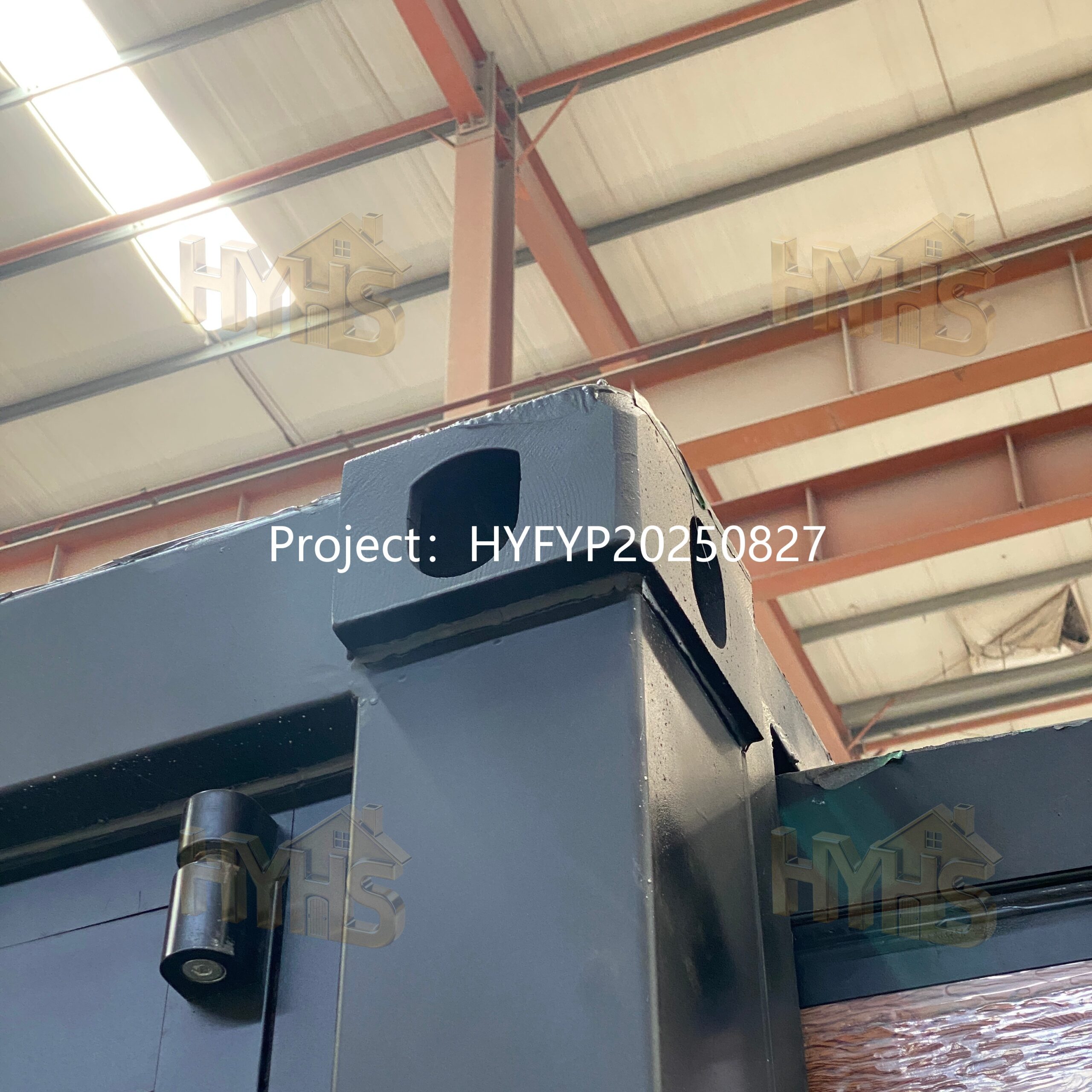

| 22 | Shipping lifting head | 8 | |
| 23 | Lifting head support | 4 | |

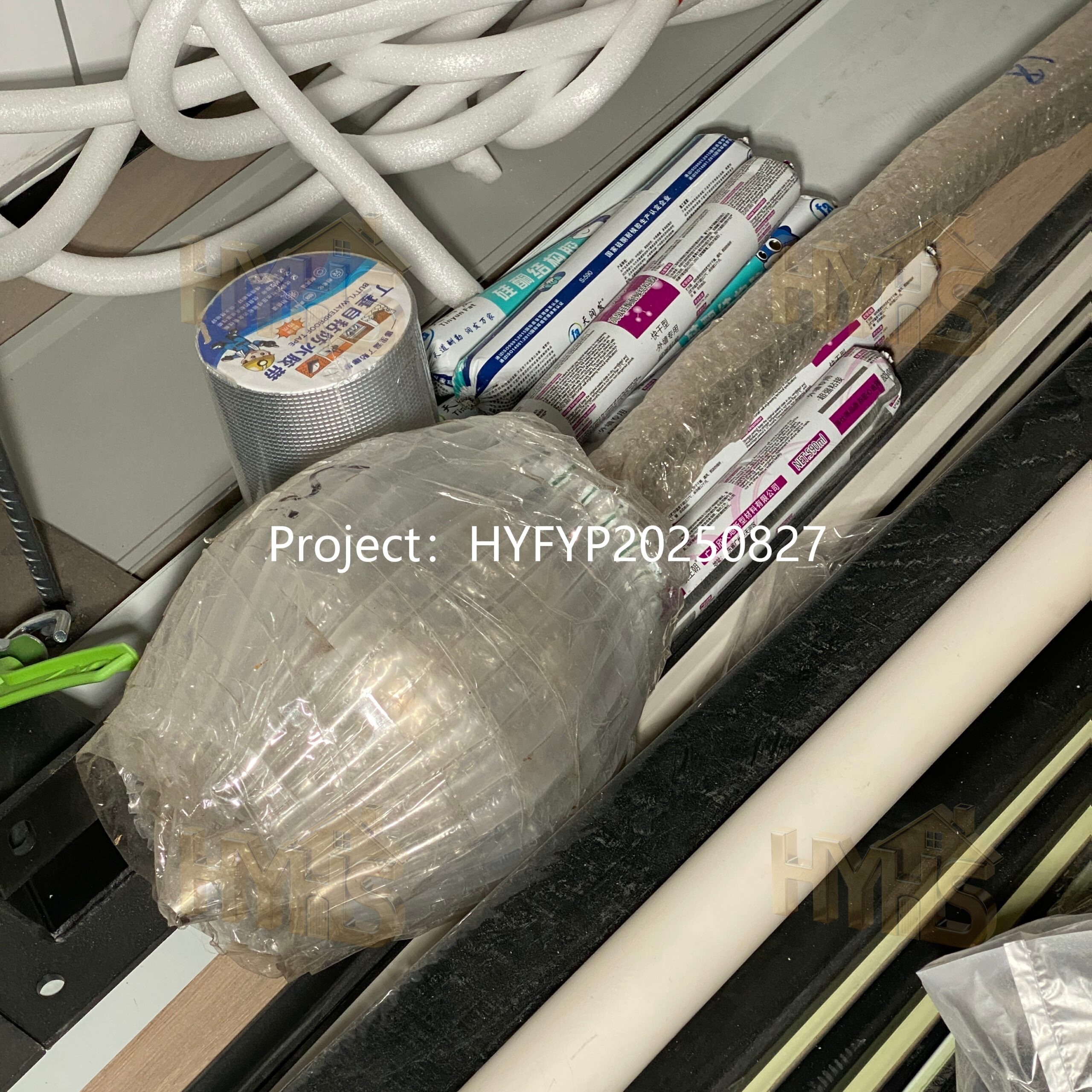

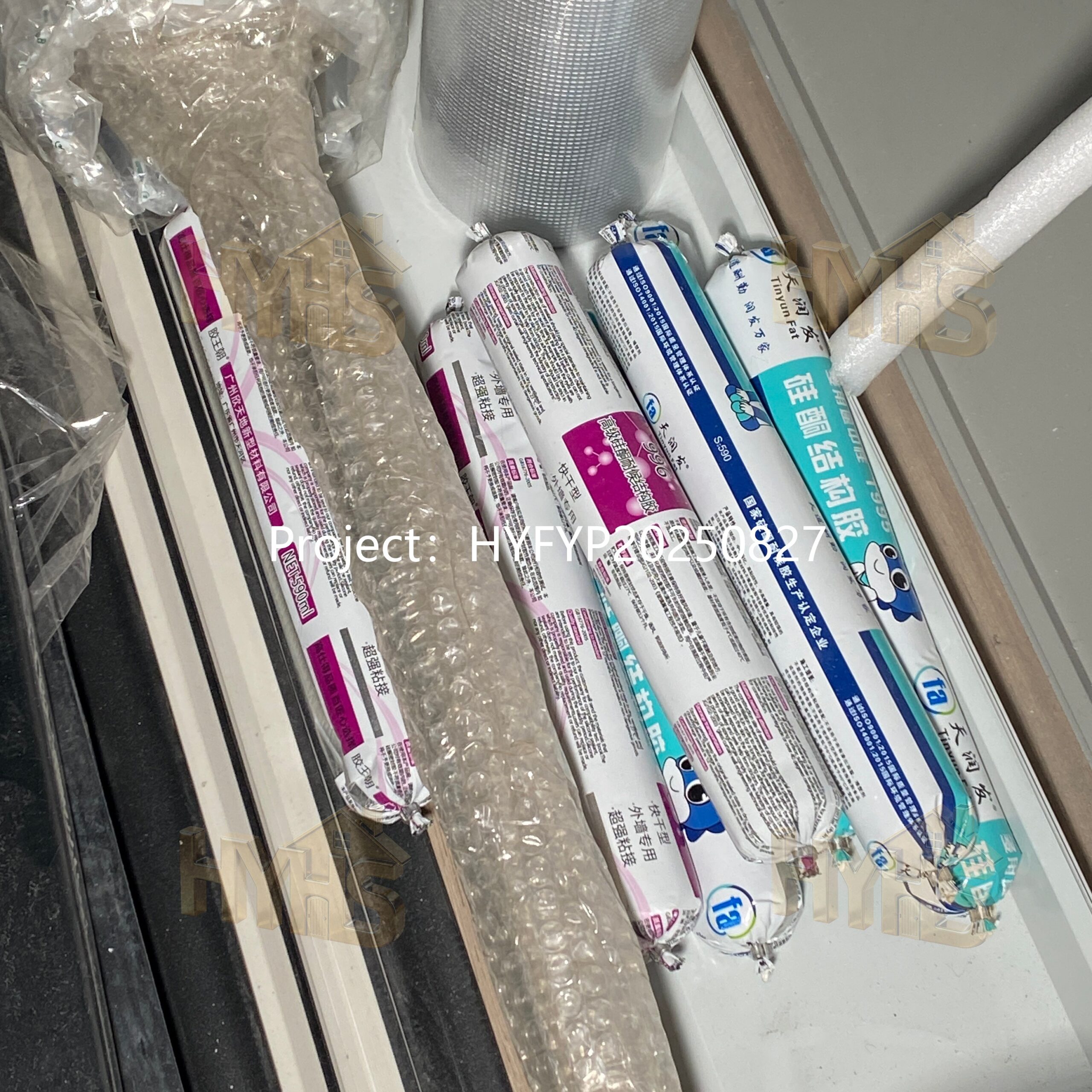

| 24 | Glue cup as shown | 6 | |

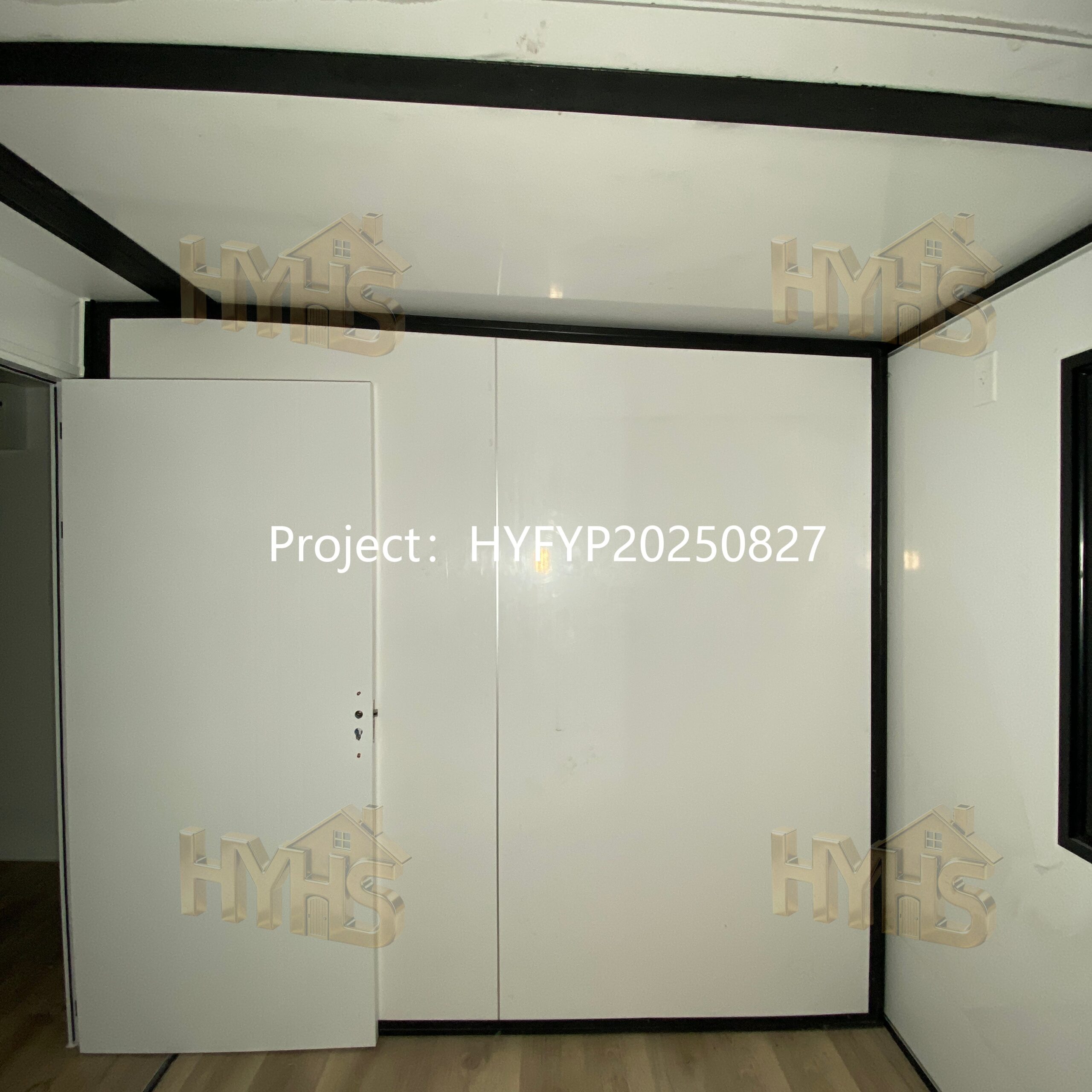

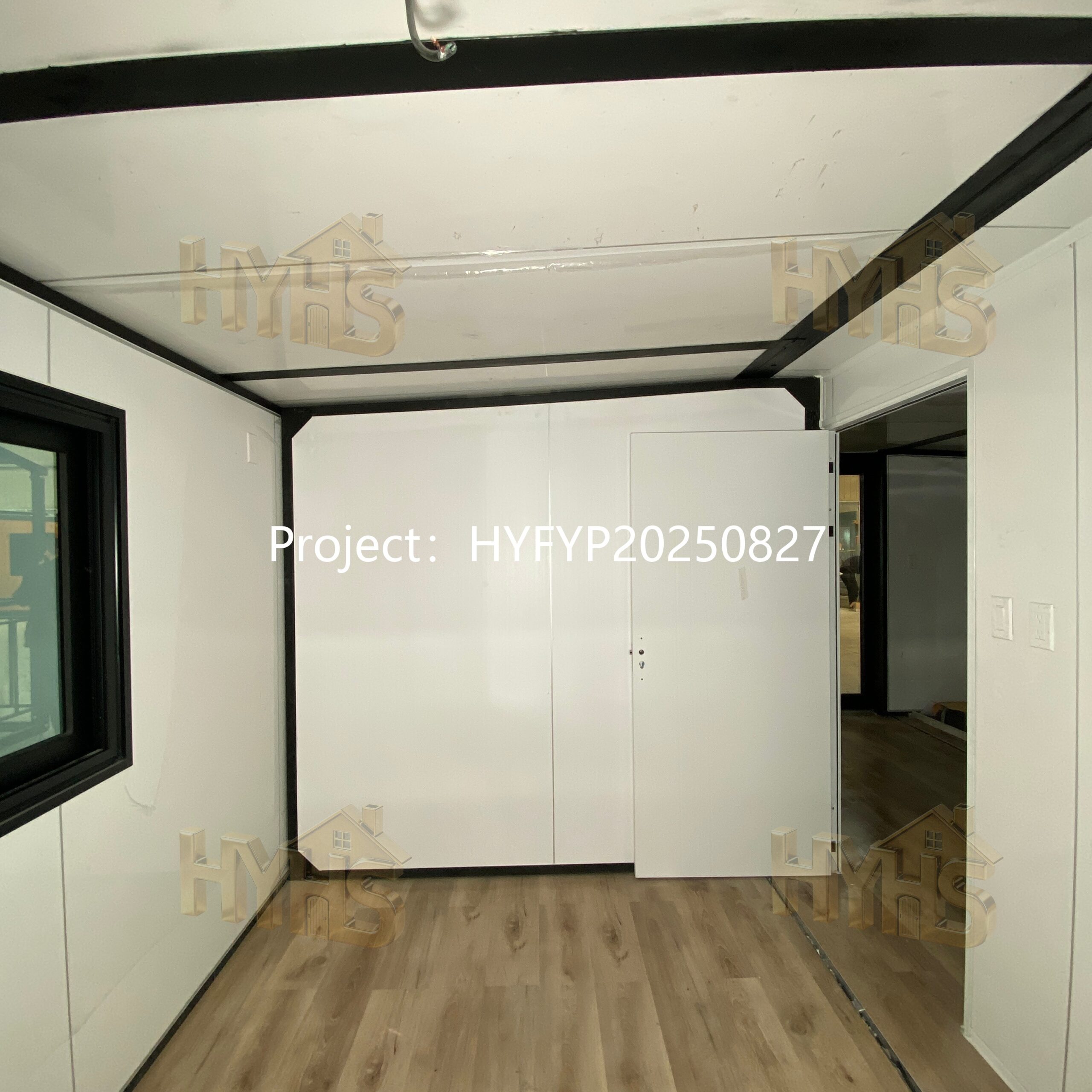

| 25 | Bedroom door: White patterned aluminum wood door size: 987 * 1970 without threshold | Model-2 | 2 |

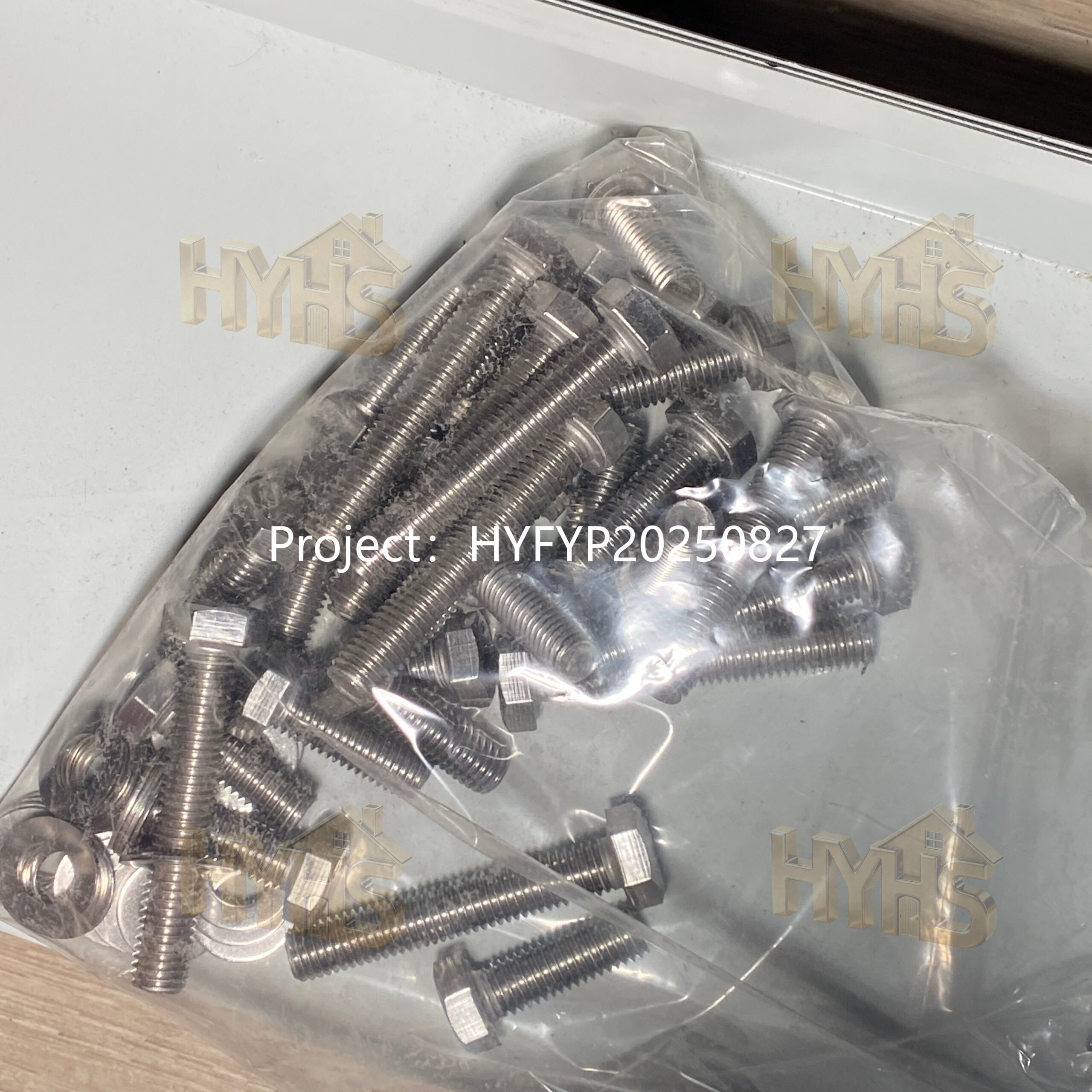

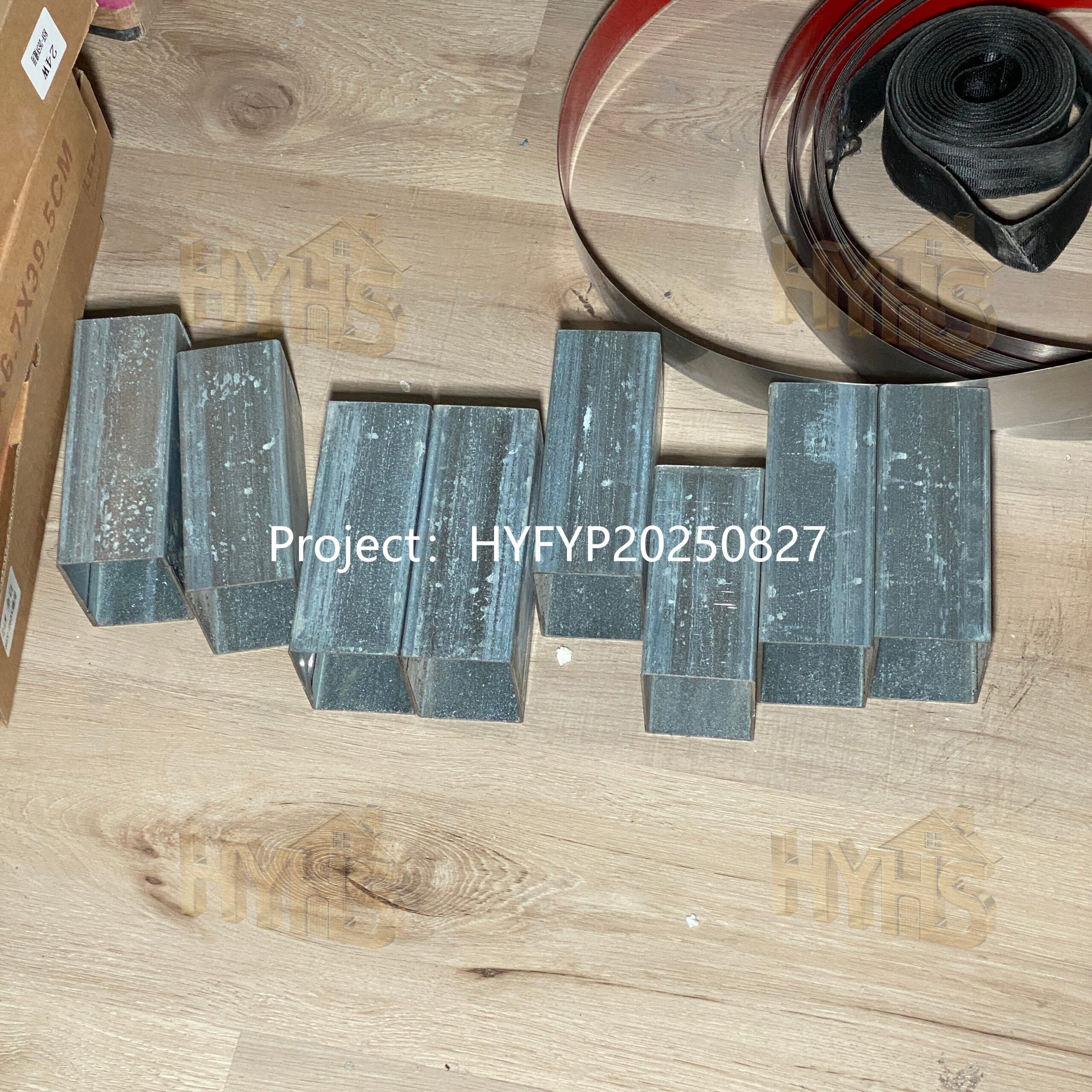

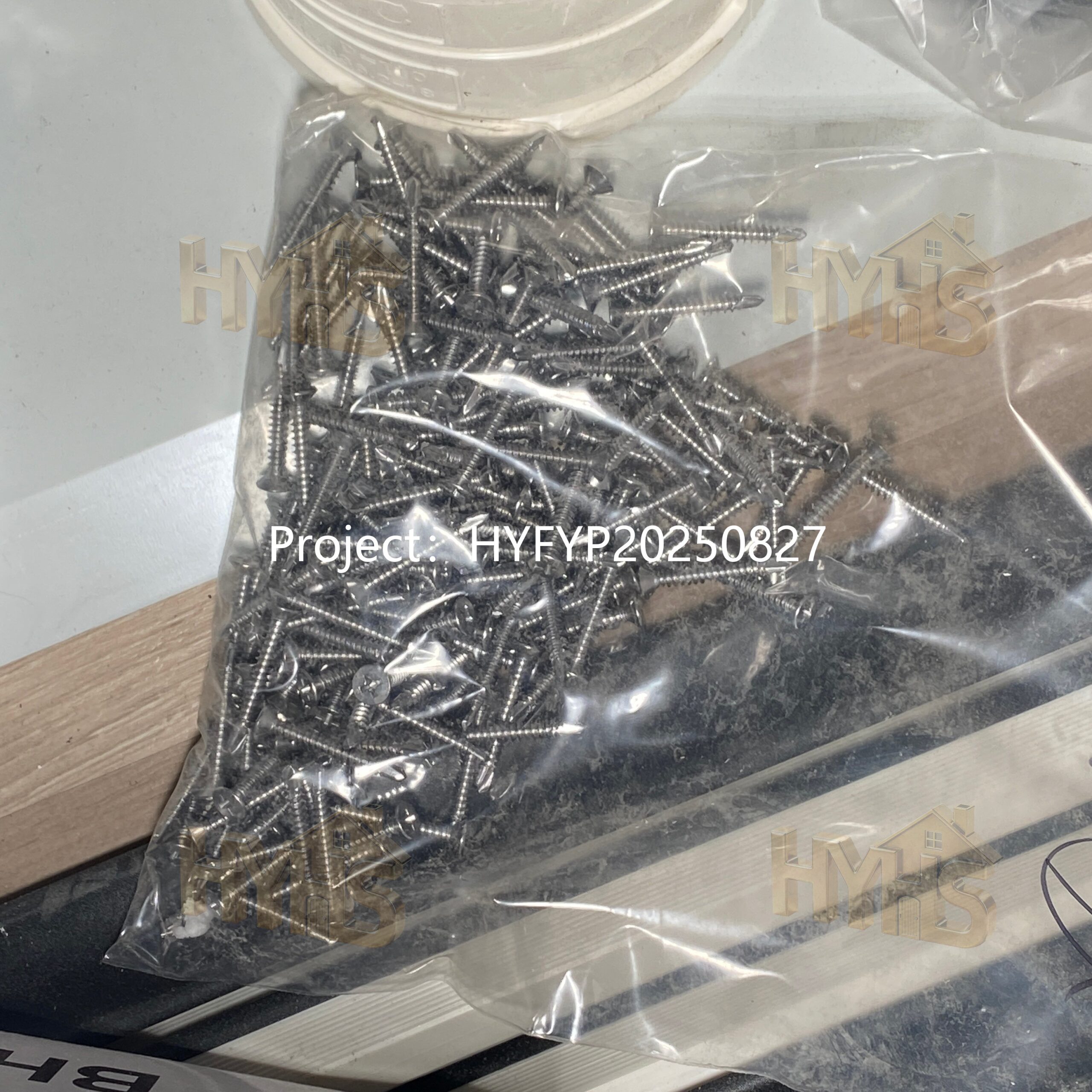

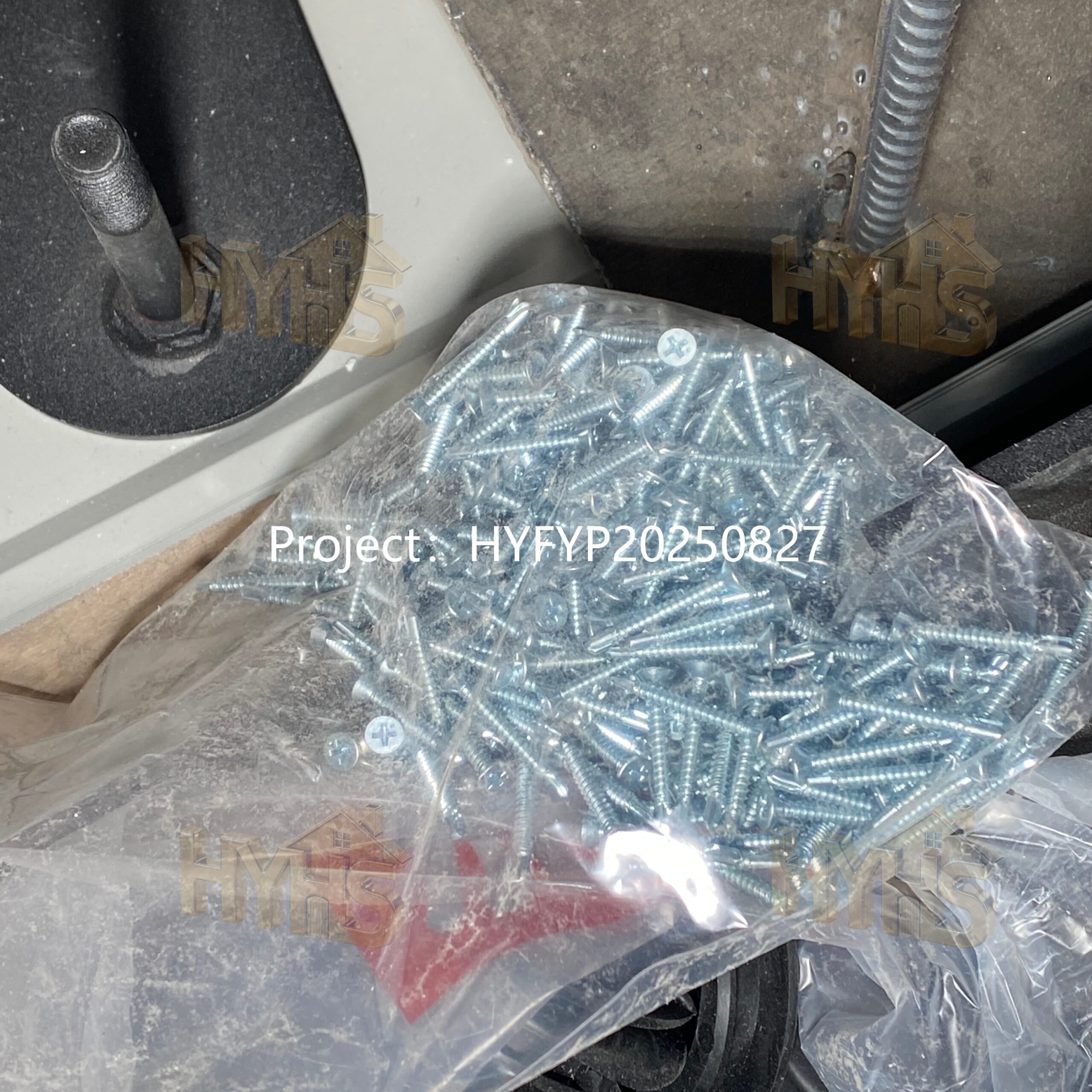

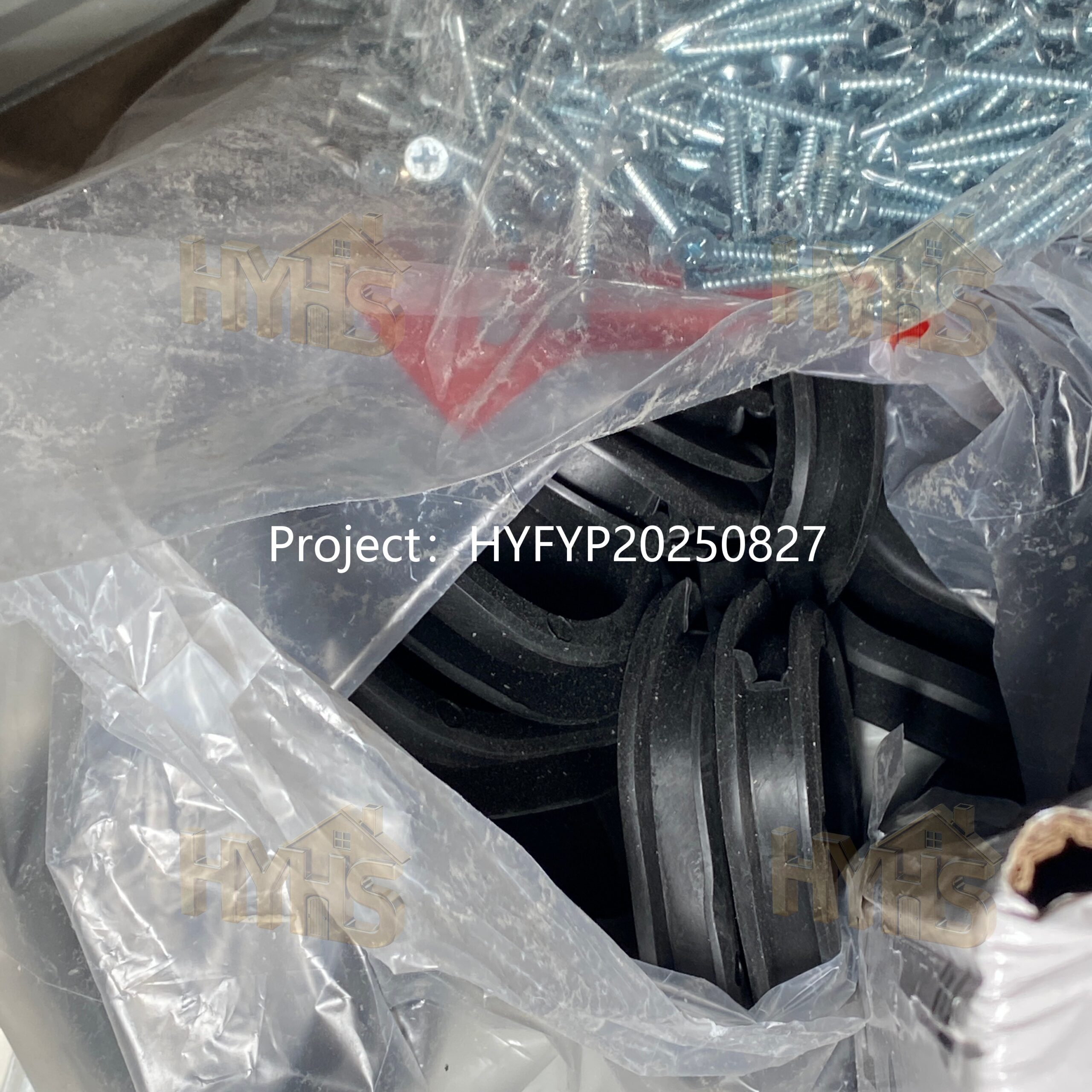

Important Note: All nails and screws must be made of stainless steel. All details must have anti-rust treatment. Each set comes with 8 small square tube pads for both sides.
